F7010 / F7020

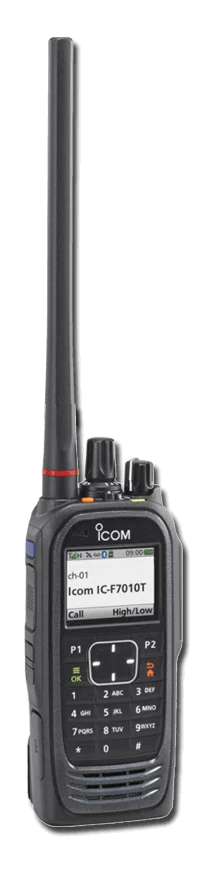

Icom F7010

F7010 / F7020

  • Description
  • Performance Characteristics
  • Physical Characteristics
  • User Environment

The F7000 series P25 portables support the ever-advancing P25 standard. The needs for both public service and public safety organizations are also addressed with these radios. Icom’s third generation of this product not only captures the essentials, but offers dozens of new features and functions all in one new small form factor size. Public service and public safety organizations will like the built-in SD Card, GPS, USB interface, Bluetooth®, and color display. Activation options for trunking, OTAR, OTAP and more, allow for expanded or upgraded services without burdening the user with unnecessary features. Icom is the choice when you want to take your P25 communications to the next level.

Frequency band:
VHF, UHF

Frequency range:
IC-F7010T/S:136–174MHz; IC-F7020T/S: 380–470MHz, 450–512MHz, 450–520 MHz

Power Output:
5W

Standard battery chemistry type:
Li-Ion

Battery life (based on a 5-5-90 duty cycle):
14 hours (VHF)

Number of Channels/Groups/Zones:
1024 Channels / 128 Zones

Channel spacing:
25*/12.5 kHz (Analog), 12.5 kHz (Digital) *25 kHz bandwidth NLA for FCC Part 90 licensees for USA versions

Dimensions H x W x D (with standard battery)
53.6 × 123.5 × 38.2 mm; 2.1 × 4.9 × 1.5 in

Weight (with standard battery)
355 g; 12.5 oz

Keypad / Keys
IC-F7010T/IC-F7020T: Full
IC-F7010S/IC-F7020S: Limited

Display
High-resolution color LCD

Operating temperature
–30 °C to +60 °C; –22 °F to +140 °F

Mil spec
810-C, -D, -E, -F and -G

IP Standards
IP68

Intuitive User Interface
The high-resolution color LCD enhances the visibility both in natural and indoor lighting. Clearly labeled function and menu items make it easy to understand icons and characters. The night mode LCD setting is an alternative for use in night time or low lighting conditions. The glass is scratch resistant to protect from cracks and scratches.

P25 Features

  • P25 Phase 1 conventional
  • P25 Phase 1 trunking and Phase 2 trunking optional licenses
  • P25 voting scan (P25 conventional mode) optional license
  • Enhanced dual-rate Vocoder, AMBE+2™
  • Analog/digital mixed operation
  • Over-the-Air Programming (OTAP) optional license
  • Individual and group call
  • Unit ID and talkgroup display on receive
  • Status update and status query
  • Short data message (up to 100 characters)
  • GPS position and transparent data transmission optional license
  • Call alert
  • Phone number list
  • Call log

Digital Voice Recorder
The F7000 series can record incoming and outgoing communications, and replay recorded communications. Add a 32GB microSD card and record up to 500 hours. The recorded audio is saved in "wav" format and allows user to replay on the radio or a PC. Users can optionally overwrite first call in first call out, if the card is full. The recording captures timestamp and individual or group ID. Unit ID is captured on individual calls and group ID is captured on group calls. Users can also scroll to playback calls on the radio.

Safety Features
For emergency situations, the F7000 Series includes an emergency button and five emergency functions: man down, motion detection, stationary detection, lone worker and power OFF emergency. The motion/stationary sensor sensitivity level is programmable in 10 levels for each function.

Additional Features

  • FIPS 140 Level 1 AES with Over-the-air Rekeying (OTAR) optional license and board
  • Front panel programming optional license
  • Hands-free communication with built-in Bluetooth®
  • Tile designed keypad increases durability and visibility
  • AquaQuake™ draining function to maintain clear audio
  • Channel voice announcement
  • USB port to connect to a PC
  • Built-in 2-tone, 5-tone, CTCSS, DTCS & MDC1200 in analog
  • 14-pin ACC connector with BTL amplifier output
  • TX/RX active noise canceler
  • TX/RX audio equalizer
ICOM FAS100U

FAS100U

7/800MHz Antenna

No Image Available

FAS67VC

136-174MHz Cut antenna - F3400/F7010/F9011

ICOM FAS76UC

FAS76UC

380-520MHz Cut antenna for F4400/F9021

No Image Available

FAS81U

380-430MHz Antenna for F4400

No Image Available

FAS81US

400-450MHz Stubby antenna for F4400

No Image Available

FAS81V

136-150MHz Antenna for F3400/F7010/F9011

No Image Available

FAS81VS

136-150MHz Stubby antenna for F340

No Image Available

FAS82U

430-480MHz Antenna for F4400

No Image Available

FAS82US

450-490MHz Stubby antenna for F4400

No Image Available

FAS82V

148-162MHz Antenna

No Image Available

FAS82VS

148-162MHz Stubby antenna

No Image Available

FAS83U

470-520MHz Antenna for F4400

No Image Available

FAS83V

160-174MHz Antenna for F3400

No Image Available

FAS83VS

160-174MHz Stubby antenna for F3400

No Image Available

BP284

Battery Li-ion 7.4V 3210mAh
3210mAh (typical capacity), 3070mAh (minimum value)

ICOM MB133

MB133

Alligator-type belt clip

ICOM MB136

MB136

Swivel belt clip for F1000/F3400/F7010/F52D/M85 series radios

ICOM MB96N

MB96N

Swivel belt hanger to use with standard belt clip

No Image Available

IAOPC1003

USB to micro-USB 3ft cable

ICOM OPC515L

OPC515L

DC power cable for single-unit rapid chargers

ICOM OPC656

OPC656

DC power cable for gang charger

No Image Available

LCF1035SW

Leather case for F3400DS & F7010S radios with swivel belt loop and D-ring
display cutout

ICOM LCF1036SW

LCF1036SW

Leather case for F3400DT & F7010T radios with swivel belt loop and D-ring
display & full keypad cutout

ICOM NCF1035C

NCF1035C

Nylon case for F3400DS/F7010S radios with metal clip with display cutout

ICOM NCF1036C

NCF1036C

Nylon case for F3400DT/F7010T radios with metal clip with full keypad cutout

No Image Available

BC123SA

AC adapter for rapid chargers
100-240V with US style plug

ICOM BC157S

BC157S

AC adapter for gang chargers
100-240V with US style plug

ICOM BC214

BC214-1

6-unit charger (includes AC adapter with US plug)

ICOM BC219N

BC219N

Rapid charger for radios with the BP283/BP284
100-240V with a US style plug

ICOM BC225

BC225

Smart rapid charger
100-240V with a US style plug

ICOM CP23L

CP23L

12V cigarette lighter cable for use with rapid chargers

No Image Available

SS BC62

Mobile rapid charger with cigarette adapter for the F3400 & F7010 series

ICOM HS94

HS94

Earpiece headset
for VS/OPC2004/OPC2006/OPC1392

ICOM HS95

HS95

Headset with boom microphone
use with VS/OPC2004/OPC2006/OPC1392

ICOM HS97

HS97

Earphone with throat mic headset
use with VS/OPC2004/OPC2006/OPC1392

ICOM VS1MC

VS1MC

VOX/PTT case with 14-pin connector.
Must use with HS94/HS95/HS97.

ICOM VS3

VS3

Bluetooth pendant earpiece microphone w/PTT

ICOM VS4MC

VS4MC

Cable with heavy duty PTT swith with 14-pin connector.
Use with HS94/HS95/HS97.

No Image Available

HM-HD7I6WP

Large waterproof, high gain speaker microphone with 3.5mm accessory jack (14-pin connector)

No Image Available

HM184H

Waterproof speaker microphone with no accessory jack (14-pin)

No Image Available

HM222

IP68 waterproof speaker microphone w/3.5mm accessory jack (14-pin connector)

ICOM IAHM600

IAHM600

Wireless speaker microphone, which includes charger and charging cable

No Image Available

SP-AT1

Single pin listen only w/QD acoustic tube (9", 3.5mm L-shape)

ICOM SP27

SP27

Acoustic tube earphone with a clip (3.5mm)

ICOM SP-29

SP29

Earhook type earphone with 3.5mm plug

ICOM SP-40

SP40

Earphone with 3.5mm plug

  • F7010S 136-174MHz P25 conventional portable without a full keypad
  • F7010T 136-174MHz P25 conventional portable with full DTMF keypad
  • F7040S 7/800MHz P25 conventional portable with partial keypad
  • F7040T 7/800MHz P25 conventional portable with full DTMF keypad
  • F7020S 11 380-470MHz P25 conventional portable without a full keypad
  • F7020T 21 380-470MHz P25 conventional portable with full DTMF keypad
  • F7020S 31 450-512MHz P25 conventional portable without a full keypad
  • F7020T 41 450-512MHz P25 conventional portable with full DTMF keypad
