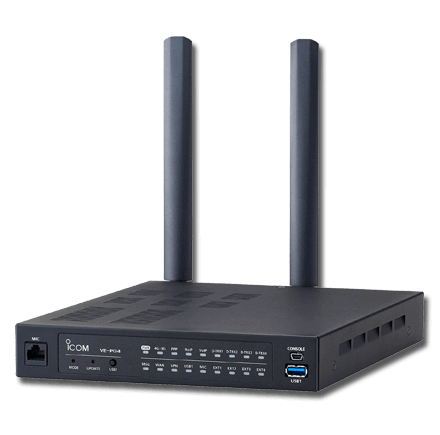

ICOM Icom VE-PG4 RoIP Gateway

Icom VE-PG4

VE-PG4 RoIP Gateway

  • Description
  • Performance Characteristics
  • Physical Characteristics
  • User Environment

Radio Gateway – Link LMR Radios, LTE Radios, IP Radios, IP Phone Systems and more.

Bridges your Land Mobile Radio Systems
The VE-PG4 allows you to bridge almost any modern communications system to Icom’s universe of Network products and more.

Interconnect in a Variety of Ways:

  • LTE PTT Products
  • Wireless LAN radio products
  • Icom IDAS conventional and trunking systems
  • Analog Radio Systems
  • P25 systems
  • DMR systems
  • SIP Phone

LTE Transceiver Gateway
Install an LTE-CONNECT SIM card to the built-in LTE module and the VE-PG4 can interconnect the IP501H with conventional radio systems and IP100H terminals. Receive and transfer GPS position information from the IP501H to a PC.

Bridge Connection Between Radio Systems
The VE-PG4 interconnects with two or more radio systems, even when the systems use different bands. All received audio is bridged to opposing radio system, so a radio user can talk to all connected radio users. The built-in digital voice converter converts analog audio to IDAS™ compatible digital audio.

IP Phone Interconnect
The built-in Simplified SIP server can assign extension numbers to IDAS™ radio terminals, IP advanced radio terminals, and groups of analog radio users as well as IP phones. A radio user can initiate phone calls. Phone users can make individual or group calls to connected radio users.

Multi-Site Connection Between VE-PG4s
Connect two or more VE-PG4s through LAN or LTE (4G) and 3G networks. The communication area can be flexibly expanded, and dispersed radio sites can be connected, regardless of distance or radio system used.

External Equipment Connection
Public address system, siren, warning light and other external devices can be connected to the VE-PG4. When detecting an emergency signal, users can start emergency notification from either a digital transceiver, IP transceiver or public address system.

Built-in Controller for the IP100H, IP Communication Terminal (Wireless LAN)
The VE-PG4 has a built-in IP100H IP communication terminal controller function that is capable of controlling up to 50 IP100H IP Communication Terminals, and IP100FS Remote Communicators. The IP100H can send and receive voice and preprogrammed text messages to the other units through the wireless LAN access points. The IP communication terminals are suitable for intra-building communication, which will communicate anywhere your network has Wireless LAN access.

Power Supply
12 V DC ±10%, 4A maximum
100–240V AC (with the supplied AC adaptor)


RJ-45 type × 1 (Auto MDI/MDI-X)
*WAN/LAN port selectable.

RJ-45 type × 1 (Auto MDI/MDI-X)

Host interface - USB 3.0 Standard A receptacles ×3
Console interface - USB 2.0 mini B receptacles ×1

4G bands - LTE B2, B4, B12
3G bands - W-CDMA B2, B5

Dimensions (W×H×D) (Projections are not included)
8.4 × 1.4 × 10.6 in (Approximate)

4 lbs. (Main unit, approximate)

External Port
Connectors - 2.54 mm (0.1 in) pitch quick connector (4 terminals ×3) ×4
Audio input - –10 dBs / –40 dBs selectable Input impedance 10 kΩ unbalance Audio output - 0 dBs / –20 dBs selectable 600Ω load unbalance / 8Ω 1W speaker
Control input - Low voltage contacts (3.3V DC / 1mA) / Voltage input (3–16V)
Control output - No voltage contacts (30V / 100mA) / Open collector (3–16V 10mA)

Operating Temperature Range
0 to +40°C, +32 to +104°F

Operating Humidity
5–95% (At no condensation)

Regulatory Compliance
FCC Part 15 Class B/ ICES003, Part22, Part24, Part27, EN301 489-1, EN301 489-19, EN301 489-52, EN301 908-1, EN301 908-2, EN301 908-13, EN303 413, EN62479, EN62311, EN62368-1


IP Communication Terminal
Wireless LAN connection. (Access Point is required.)

LTE Transceivers
LTE (4G) or 3G Network connection.

Satellite PTT
OPC-2412 cable is required.

  • SAT100

VHF/UHF Repeaters
Either UC-FR5000 (LAN) or OPC-2390 is required.

VHF/UHF Transceivers
OPC-2275 cable is required.

Supplied Accessories

  • Antennas
  • Antenna bases with 1.5m (4.9 ft.) cable
  • AC adapter, BC-236
  • Quick connectors


connection cable for the IC-M604A/M605 (Length: Approximately 5 m/ 16.4 ft)



connection cable for the IC-F5060/F6060 and IC-A120 (Length: Approximately 5 m/ 16.4 ft)



connection cable for the Icom microphone and speaker (Length: Approximately 5 m/ 16.4 ft)



connection cable for the Icom serial communication device (Length: Approximately 5 m/ 16.4 ft)



connection cable for the IC-FR5000/FR6000 (Length: Approximately 5 m/ 16.4 ft)



Desktop Microphone



Speaker Microphone
