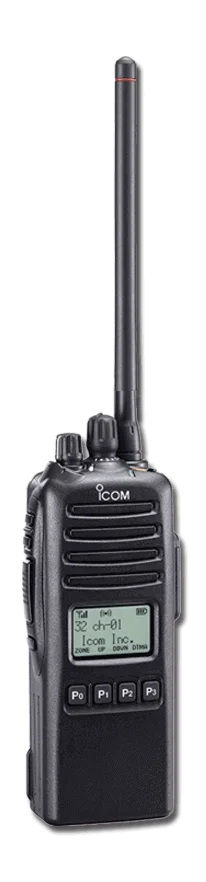

ICOM F70D / F80D
F70D / F80D
- Description
- Performance Characteristics
- Physical Characteristics
- User Environment
Built-in Multiple Signaling
The 2-Tone, 5-Tone, CTCSS, DTCS and MDC signaling capabilities are built-in for group communication or selective calling.
Up to 10 2-Tone and 8 5-Tone codes can be decoded on a single memory channel. This is perfect for professionals who require multiple district paging on one channel. When a matched tone is received, the following items are programmable for each code.
- Bell icon
- Answer back
- Stun
- Beep sound
- Auto transmit
- Scan
Frequency band:
VHF, UHF
Frequency range:
IC-F70T/S, F70DT/DS: 136–174MHz
IC-F80T/S, F80DT/DS: 380–450MHz, 400–470MHz, 450–520MHz
Power Output:
VHF: 5W; UHF: 4W
Standard battery chemistry type:
Li-ion
Battery life (based on a 5-5-90 duty cycle):
8 hours
Channel spacing:
12.5kHz/25kHz, 15kHz/30kHz
Dimensions H x W x D (with standard battery)
152 x 58.6 × 42.2 mm; 5 31/32 x 2 5/16 × 1 1/2 in
Weight (with standard battery)
14.1oz
Keypad / Keys
Display
Operating temperature
–30˚C to +60˚C; –22°F to +140°F
Mil spec
810-C, -D, -E, -F
IP Standards
IP67
The following selective calling and ANI features are available with the built-in MDC signaling.
- PTT ID/Caller ID
- Radio check
- Selective call
- Call alert
- Emergency, emergency mic monitoring
- Emergency man down (with UT-124)
- Radio stun/revive
- 500 Aliases
- Status/message
- Call log
Alphanumeric Display
The large high-contrast LCD clearly shows a variety of information with a full dot-matrix display. Program the display to show either 1 line with 12 characters or 2 lines with 24 characters. Status icons are displayed at the top and the functions assigned to the P buttons (P0P3) are shown at the bottom of the display.
Tactical Group Function
The tactical group function allows you to copy memory channels to the tactical zone (zone 32) and dynamically regroup memory channels. Using the optional zone copy cable, memory channels in the tactical zone can be transferred from a master radio to other radios.
FIPS 140-2
The F80DS includes FIPS 140-2 validation, which confirms that the Icom encryption module, Icom AES Encryption, has passed rigorous field tests and provides agencies the independent assurance that the module meets or exceeds the highest performance standards in encryption for its classification. FIPS encryption is a requirement for many federal agencies.
Additional Features
- Built-in inversion voice scrambler
- Radio stun/kill function disables a lost or stolen radio over the air
- Built-in audio compander
- 8 DTMF autodix xal memories
- Normal and priority scans
- Power-on password prevents unauthorized people turning on the radio
 | AD98FSC Antenna connector adapter for "J" to "BNC" conversion |
 | FASC25U 400-430MHz Antenna for LM portables |
 | FASC25V 136-150MHz Antenna for LM portables |
| FASC55V 146-174MHz Standard antenna for LM portables |
 | FASC56VS 150-160MHz Stubby antenna for LM portables |
 | FASC57U 430-470MHz Standard antenna for LM radios (red ring) |
 | FASC57VS 160-174MHz Stubby antenna for LM portables |
| FASC61UC 380-520MHz Cut antenna for the specific frequency desired |
| FASC61VC 136-174MHz Cut antenna for the specific frequency desired |
| FASC62V 150-160MHz High gain antenna for LM portables (10") |
| FASC63V 155-165MHz High gain antenna for LM portables (9.5") |
 | FASC72U 470-512MHz Antenna for LM portables |
 | FASC73US 450-470MHz Stubby antenna for LM portable radios |
 | BP237 Battery case that holds 6 AA alkaline batteries |
| BP253 Battery Li-ion 7.2V 1650mAh |
 | BP254 Battery Li-ion 7.2V 3040mAh for P25 portables |
| AW STUD/SWIVEL KIT Metal stud that slides on like a belt clip and it's attached to a strong metal swivel belt clip |
| MB93 Swivel belt clip |
 | MB94 Alligator belt clip |
 | MB94R Alligator belt clip with long clip that angles the antenna/top of radio off the body |
 | MB96N Swivel belt hanger to use with standard belt clip |
 | OPC515L DC power cable for single-unit rapid chargers |
 | OPC656 DC power cable for gang charger |
| AW F70 AREA 51 Water repellant case with a swivel belt clip for the F70/80 |
 | LCF70 CLIP Leather case for F70/80 radios with a metal clip and DTMF keypad cutout |
| LCF70S LOOP Leather case for F70/80 radios with a belt loop. |
 | AD110 Adapter cup to install in the BC119N or BC121N |
 | BC119NS 11 Rapid charger with AD110 installed for F70/80/9011/9021 radios |
 | BC121NS 6-Unit Charger Kit BC121N + AD110 x 6. |
 | BC145SA 31 AC adapter for BC119N |
 | BC157S AC adapter for gang chargers |
 | CP23L 12V cigarette lighter cable for use with rapid chargers |
 | HS94 Earpiece headset |
 | HS95 Headset with boom microphone |
 | HS97 Earphone with throat mic headset |
| OTTO V410514 Lightweight single speaker w/in-line ptt, padded headband (9-pin connector) |
| VS1SC VOX/PTT case with 9-pin connector. Must use with HS94/HS95/HS97. |
| HM138 Waterproof 9-pin marine style speaker mic (IS approved for F50/F60/M88/F70/F80) |
 | HM169 Waterproof speaker mic (9-pin) |
| IMPACT HD3-I5 Heavy duty use speaker microhpone with 3.5mm accessory jack (9-pin) |
 | OTTO V110282 Speaker microphone earpiece (2.5mm straight plug) |
 | OTTO V110433 Speaker microphone earpiece (3.5mm right angle plug) |
| IAS BC-RHADPTR Charger adapter 100-240V for use with the IAS OPC-RHUSB |
| IAS BC-RHCHG1 RedHawk microphone single-unit charger 100-240V |
| IAS BC-RHCHG12 RedHawk microphone 12-unit charger 100-240V |
| IAS BP-RHBATT1 RedHawk microphone 3.8V 1200mAh battery |
| IAS CP-RHLP Cigarette lighter plug 12-24V requires 2 USB cables |
| IAS CS-RHSW Utility software to upload stored tracks, optional PC programming, online demos. |
| IAS OPC-RHUSB USB cable to connect mic with PC or charger adapter. |
| IAS OPC-RHI9 RedHawk 9-pin cable connects GPS mic to radio (works in analog only) |
| IAS REDHAWK Speaker microhpone with GPS receiver. |
| OTTO V110822 2-Wire palm microphone kit (earphone cable and mic/ptt cable) with 9-pin connector |
