F9011 / F9021

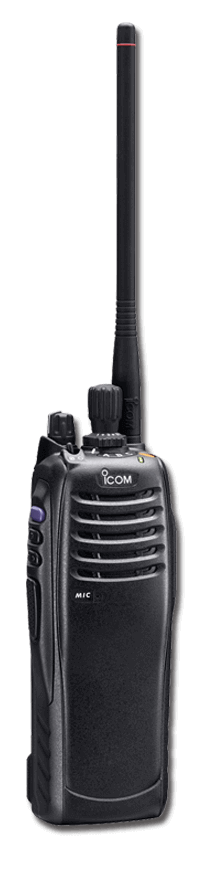

Icom F9011

F9011 / F9021

  • Description
  • Performance Characteristics
  • Physical Characteristics
  • User Environment

Heavy duty and portable, the F9011 and F9021 radios offer both analog conventional and P25 digital conventional operation. The P25 trunked option can be added to operate on local, regional or statewide P25 systems. Designed specifically for the public safety user, the F9011 portables provide excellent operation for both gloved and non-gloved users alike. This product series offers ergonomic advantages that make daily operation comfortable and tactical as expected. Users can choose from a basic non-display, display or display with keypad model. The large 24 character LCD displays various operating statuses and the 4-way cross keypad on the front panel provides an intuitive user interface.

Project Conventional and Trunking Features

  • P25 Conventional and Trunking
  • Interoperability
  • Digital/Analog mixed mode operation
  • Individual ID and Talkgroup ID
  • Optional AES/DES encryption
  • OTAR (Over-the-Air-Rekeying)
  • Enhanced Vocoder Ready

Frequency band:
VHF, UHF

Frequency range:
IC-F9011T/S/B: 136–174MHz
IC-F9021T/S/B: 380–470 MHz, 400–470MHz, 450–512MHz

Power Output:
IC-F9011T/S/B: 6 W, 2 W, 1 W (Hi, L2, L1)
IC-F9021T/S/B: ) 5 W, 2 W, 1 W (Hi, L2, L1)

Standard battery chemistry type:
Lithium Ion

Battery life (based on a 5-5-90 duty cycle):
NA

Number of Channels/Groups/Zones:
512 Channels/128 Zones

Channel spacing:
15/30 kHz (Analog) / 12.5 kHz (Digital)

Dimensions W x H x D (with standard battery)
2.3 × 6.6 × 1.7 in

Weight (with standard battery)
1.17 lb

Keypad / Keys
4-Way Navigation Cross Keypad

Display
Dot Matrix, Multi-Function LCD

Operating temperature
-22 F to 140 F (-30 C to +60 C)

Mil spec
810 C, 810 D, 810 E, 810 F

IP Standards
IP57

4-Way Navigation Cross Keypad
The 4-way cross keypad* on the front panel provides an intuitive user interface. * IC-F9011T/S and IC-F9021T/S only.

Encryption Button and 3-Position Zone Select Switch
On the top of the radio, there is a toggle switch to turn the encryption on or off* and the 3 position switch allows you to quickly select an operating zone*. * According to the programming setting.

Large Dot-Matrix Display
The IC-F9011T/S and F9021T/S have a large dot-matrix display to show various operating status at a glance. At the bottom line of the display, the key indicator shows the assigned functions to the [I], [II] and [III] buttons for more efficient operation.

Slim Dimensions
At only 1.65 in thick, the IC-F9011 Series is designed as a solid and ergonomic shape that will fi t comfortably in your hand.

1000 mW Audio Output Power
The built-in BTL amplifier doubles the audio output power and delivers loud audio to receive all calls under noisy environments. In addition, even when using an optional speaker microphone, the BTL amplifier output is also available from the external accessory connector which increases the audio output via the microphone.

IP67 Dust-Tight and Waterproof Protection
The IC-F9011 Series has dust-tight and waterproof protection equivalent to IP67 and is tested to demanding MIL-STD 810 requirements. IP67 waterproof protection means the IC-F9011 Series can be submerged in 1 meter of water for 30 minutes. The radio can withstand rugged use even under harsh weather conditions.

ICOM FAS58U

FAS58U

400-470MHz Antenna
Standard on the F9021

No Image Available

FAS65V

148-160 MHz Flexible antenna
standard on F9011

No Image Available

FAS67VC

136-174MHz Cut antenna - F3400/F7010/F9011

No Image Available

FAS81V

136-150MHz Antenna for F3400/F7010/F9011

No Image Available

GAL 06026

136-174MHz Short helical broadband antenna for F9011

ICOM BP237

BP237

Battery case that holds 6 AA alkaline batteries

ICOM BP254

BP254

Battery Li-ion 7.2V 3040mAh for P25 portables
3040mAh (typical capacity), 2900mAh (minimum value) for P25 portables

No Image Available

AW STUD/SWIVEL KIT

Metal stud that slides on like a belt clip and it's attached to a strong metal swivel belt clip

No Image Available

MB115

Standard belt clip for F9011 Series radios

ICOM OPC515L

OPC515L

DC power cable for single-unit rapid chargers

ICOM OPC656

OPC656

DC power cable for gang charger

No Image Available

LCF9011S SWIVEL

Leather carrying case for F9011/9021 radios with a swivel clip without a full keypad

No Image Available

LCF9011T SWIVEL

Leather carrying case for F9011T/9021T radios with a swivel clip with a full keypad cutout

ICOM NCF9011S CLIP

NCF9011S CLIP

Nylon carrying case for the F9011/9021 radios without a full keypad with a clip

ICOM NCF9011T CLIP

NCF9011T CLIP

Nylon carrying case for F9011T/9021T radios with a full keypad with a clip

ICOM AD110

AD110

Adapter cup to install in the BC119N or BC121N
for the BP253 or BP254 batteries

ICOM BC119NS 11

BC119NS 11

Rapid charger with AD110 installed for F70/80/9011/9021 radios
100-240V with US style plug

ICOM BC121NS

BC121NS

6-Unit Charger Kit BC121N + AD110 x 6.
Requires BC157S AC adapter.

ICOM BC145SA 31

BC145SA 31

AC adapter for BC119N
100-240V with US style plug

ICOM BC157S

BC157S

AC adapter for gang chargers
100-240V with US style plug

ICOM CP23L

CP23L

12V cigarette lighter cable for use with rapid chargers

No Image Available

SS BC63

Mobile rapid charger with cigarette adapter for the F9011 Series

ICOM VS1MC

VS1MC

VOX/PTT case with 14-pin connector.
Must use with HS94/HS95/HS97.

ICOM VS4MC

VS4MC

Cable with heavy duty PTT swith with 14-pin connector.
Use with HS94/HS95/HS97.

No Image Available

HM-HD7I6WP

Large waterproof, high gain speaker microphone with 3.5mm accessory jack (14-pin connector)

No Image Available

HM184H

Waterproof speaker microphone with no accessory jack (14-pin)

No Image Available

IMPACT HD3-I6

Lightweight heavy duty use speaker microhpone with 3.5mm accessory jack (14-pin connector)

OTTO V110433

OTTO V110433

Speaker microphone earpiece (3.5mm right angle plug)

No Image Available

SP-AT1

Single pin listen only w/QD acoustic tube (9", 3.5mm L-shape)

No Image Available

IAS BC-RHADPTR

Charger adapter 100-240V for use with the IAS OPC-RHUSB

No Image Available

IAS BC-RHCHG1

RedHawk microphone single-unit charger 100-240V

No Image Available

IAS BC-RHCHG12

RedHawk microphone 12-unit charger 100-240V

No Image Available

IAS BP-RHBATT1

RedHawk microphone 3.8V 1200mAh battery

No Image Available

IAS CP-RHLP

Cigarette lighter plug 12-24V requires 2 USB cables

No Image Available

IAS CS-RHSW

Utility software to upload stored tracks, optional PC programming, online demos.
One per customer needed.

No Image Available

IAS OPC-RHI14

RedHawk 14-pin cable connects GPS mic to radio (works in analog, P25 digital and IDAS)

No Image Available

IAS OPC-RHUSB

USB cable to connect mic with PC or charger adapter.
One comes with each microphone.

No Image Available

IAS REDHAWK

Speaker microhpone with GPS receiver.
LCD display shows basic orientation of all members within a group. Battery & USB cable included.
Cable that hooks from microphone to radio is required.

ICOM AD118

AD118

14-pin ACC adapter to use with Hirose plug accessories

  • F9011B 01 136-174MHz P25 conventional portable, 6W, 512 CH, basic model, no display or keypad
  • F9011B 21 136-174MHz P25 Conventional portable, 6W, 512 CH, basic model, no display or keypad
  • F9011S 25 136-174MHz P25 Conventional portable, 6W, 512 CH, display, simple keypad
  • F9011T 30 136-174MHz P25 Conventional portable, 6W, 512 CH, display, full DTMF keypad
  • F9021B 91 380-470MHz P25 Conventional portable, 5W, 512 CH, basic model, no display or keypad
  • F9021S 95 380-470MHz P25 Conventional portable, 5W, 512 CH, display, simple keypad
  • F9021T 98 380-470MHz P25 Conventional portable, 5W, 512 CH, display, full DTMF keypad
  • F9021B 82 450-512MHz P25 Conventional portable, 5W, 512 CH, basic model, no display or keypad
  • F9021S 85 450-512MHz P25 Conventional, 5W, 512 CH, display, simple keypad
  • F9021T 30 450-512MHz P25 Trunking portable, 5W, 512 CH, display, full DTMF keypad
  • F9021T 89 450-512MHz P25 Conventional portable, 5W, 512 CH, display, full DTMF keypad
