FR5000 / FR6000

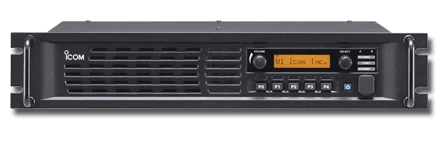

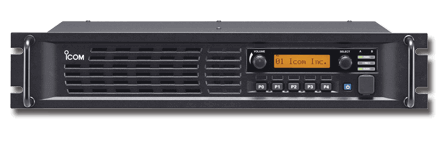

Icom FR5000

FR5000 / FR6000

  • Description
  • Performance Characteristics
  • Physical Characteristics
  • User Environment

Stable, Flexible and High-Performing Repeater

The IC-FR5000 series is ready for IDAS™ Trunking and IDAS™ Conventional.
IDAS bridges the gap between analog and digital systems. IDAS is Icom's digital land mobile radio system using the NXDN™ common air interface. It has useful calling features including selective calling, status message, radio stun/kill/revive and GPS position reporting, etc. The IDAS system is ideal for business and industry users who may want to migrate to a digital system or to the future FCC mandated narrow band spacing.

The IC-FR5000 series uses only 2U height. This low-profile configuration allows you to stack multiple units in an industry standard 19-inch rack and provides great space efficiency.

The IC-FR5000 series has an internal space for installing another RF unit. Two RF modules can be installed and can be programmed and operated independently. LEDs on the front panel show both channel conditions.

Employing a high-performance power amplifier, the IC-FR5000 series provides a reliable 100% duty cycle operation at 25 W output. When you need higher power, the optional UR-PA5000 series power amplifier provides 100 W output power with a 50% duty cycle and 50 W output with 100% duty cycle.

The IC-FR5000 series has class-leading receiver performance of selectivity and intermodulation rejection. It improves the quality of the repeater service even under congested band conditions.

Frequency band:
VHF, UHF

Frequency range:
IC-FR5000: 136-174 MHz
IC-FR6000: 400–470, 450–512, 450–520, 350–400* MHz (* Non-FCC)

Power Output:
50 W (adjustable to 5 W)

Number of Channels/Groups/Zones:
32 Channels

Channel spacing:
IC-FR5000: 6.25/12.5/25 kHz, 7.5/15.0/30 kHz
IC-FR6000: 6.25/12.5/25 kHz

Dimensions W x H x D
19.02 × 3.46 × 10.24 in

Weight
12.3 lb

Keypad / Keys
5 Programmable Buttons

Display
12-Digit Dot-Matrix Display

Operating temperature
-22 F to 140 F (-30 C to +60 C)

Mil spec
810 F

IP Standards
NA

Other Features

  • PTT priority setting (Local Mic., external PTT or repeater operation)
  • 5-Tone and DTMF encoder/decoder*
  • CW ID transmitter
  • ±0.5 ppm high stability oscillator
  • Normal and priority scan
  • Convenient key assign stickers supplied
  • Quick and easy programming from a PC
  • Home repeater maintenance features for Type-D multi-site trunking
  • Beat cancel capability
  • Low voltage alert*

* For analog mode only

No Accessories List at present

Please Contact Us for more information

  • FR5000 14 136-174MHz analog/digital IDAS repeater (power supply not included)
  • FR5000 01 2CH KIT 136-174MHz 2 channel conventional system (2 repeaters, 2 external power supplies)
  • FR5000 01 UR KIT 136-174MHz, 2 channel analog/digital repeater (FR5000 + URFR5000 installed)
  • FR6000 14 400-470MHz analog/digital IDAS repeater (power supply not included)
  • FR6000 19 450-512MHz analog/digital IDAS repeater (power supply not included)
  • FR6000 01 2CH KIT 400-470MHz 2 channel conventional system (2 repeaters, 2 external power supplies
  • FR6000 11 2CH KIT 450-512MHz 2 channel conventional system (2 repeaters, 2 external power supplies
  • FR6000 01 UR KIT 400-470MHz, 2 channel analog/digital repeater (FR6000+URFR6000 installed)
  • FR6000 11 UR KIT 450-512MHz, 2 channel analog/digital repeater (FR6000 + URFR6000 installed)
  • URFR5000 63 136-174MHz analog/digital repeater channel module
  • URFR6000 63 400-470MHz repeater module
  • URFR6000 67 450-512MHz repeater module
