RFT Eclipse 2

Icom RFT Eclipse 2

RFT Eclipse 2

  • Description
  • Performance Characteristics
  • Physical Characteristics
  • User Environment

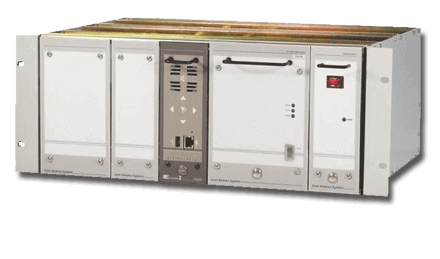

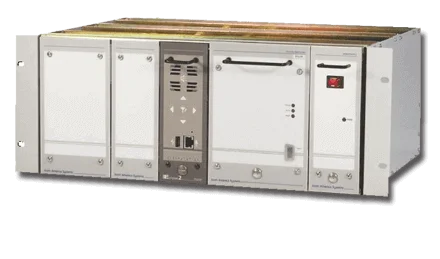

P25 Digital + Analog Base Station/Repeater
Powerful & Proven Off-the-Shelf Performance

Software Defined Radio for P25 and Analog
Icom America Systems is pleased to partner with RF Technologies, a radio company with a long, reliable history of public safety radio and well-versed in everything P25. The Eclipse2 offers the latest P25 has to offer, matches it with impressive analog performance, and does it all with a broad coverage range. Eclipse2 offers an affordable, real-world solution to today's radio interoperability needs.

Broadband Coverage, 256 Channels
Get full VHF (136-174 MHz) and UHF (400 - 520 MHz) coverage along with plenty of channels, each identifiable by own name, TX/RX frequency, and profile.

No In-Field Tuning or Aligning: IP Remote Upgrade Path
The TX and RX module is pre-tuned for the whole frequency range, and level adjustment of the signal path is done via software. Local or remote, optimize without having to physically go to the site.

P25/Analog Voting Over IP
An industry first! No extra controllers required makes for easy configuration.

Analog/Digital Auto Sense
Migrate into digital as your agency's capabilities and budget allows.

Create Your Own Signal Maps
Get full VHF coverage (136 - 174 MHz) without tuning or aligning.

Modes of Operation
Migrate from analog to digital at your own pace with this agile base station + repeater:

  • Analog Base
  • Analog repeater
  • Analog Voting over IP
  • Analog Multi-site
  • P25 Repeater
  • P25 Voting over IP

IP Commander Functionality
IP Commander offers drag and drop editing, allowing for an intuitive end user experience. By clicking the apply button the features are enabled. Configurations can be saved to a file so that standard configurations can be easily programmed or sent to remote offices to ensure standardization. Flexible channel program enables multiple profiles to be stored and recalled by scrolling down the list. The trace menu allows capture of base station activity in text form, which can be forwarded to RFT for advance diagnostics.

Frequency band:
VHF, UHF

Frequency range:
VHF: 136-174 MHz; UHF: 400-520 MHz

Power Output:
IP PA150BH 2-150W
IP PA500BH 2 to 120W

Number of Channels/Groups/Zones:
256 Channels

Channel spacing:
NA

Dimensions H x W x D

Weight
Receiver & Exciter 1.45 Kg
PWR Amp 3.55 Kg
IP PA 4.65 Kg

Keypad / Keys
No Keypad / Keys

Display
No Display

Operating temperature

Mil spec

IP Standards

Additional Information Here

No Accessories List at present

Please Contact Us for more information

  • RFT P25 400-430 100W P25/analog 400-430MHz repeater with a power supply
  • RFT P25 440-490 100W P25/analog 440-490MHz repeater with a power supply
  • RFT P25 485-520 100W P25/analog 485-520MHz repeater with a power supply
  • RFT P25 136-174 2-120W P25/analog 136-174MHz repeater with a power supply
  • RFT 400-430 100W analog 400-430MHz repeater with a power supply (P25 upgradeable)
  • RFT 440-490 100W analog 440-490MHz repeater with a power supply (P25 upgradeable)
  • RFT 485-520 100W P25/analog 485-520MHz repeater with a power supply
  • RFT 136-174 100W analog 136-174MHz repeater with a power supply (P25 upgradeable)
