NX-420

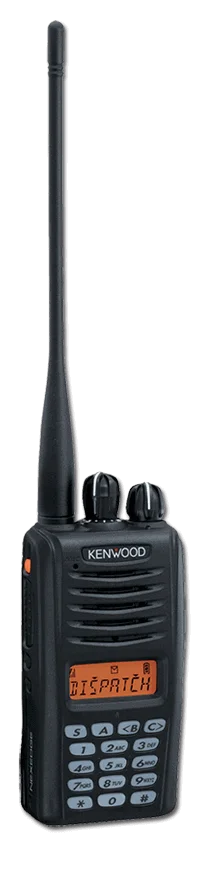

KENWOOD NX-420

NX-420

  • Description
  • Performance Characteristics
  • Physical Characteristics
  • User Environment

KENWOOD NX-420 800MHz radios deliver a cost benefit, full-featured digital portable radio solution to enterprise, local government and SMR subscribers.

Frequency band:
800MHz

Frequency range:
806 - 870 MHz

Power Output:
1W / 3W

Standard battery chemistry type:
Li-ion

Battery life (based on a 5-5-90 duty cycle):
8.5 Hours

Number of Channels/Groups/Zones:
260 Channels / 128 Zones

Channel spacing:
12.5 / 25 kHz Analog
6.25 / 12.5 kHz Digital

Dimensions H x W x D (with standard battery)
2.2 x 4.35 x 1.48 in

Weight (with standard battery)
10.8 oz

Keypad / Keys
12-Key Keypad Model

Display
8 Character Alphanumeric Aliases

Operating temperature
-22˚ F to +140˚ F

Mil spec
MIL-STD-810 C/D/E/F/G

IP Standards
IP54/55

  • Function / Status LCD Icons
  • Transmit / Busy / Call Alert / Warn LED
  • On / Off Volume Knob
  • 16-Position Selector
  • 4 Front PF Keys
  • 2 Side PF Keys
  • Emergency / AUX Key
  • Built-in Motion Sensor
  • 500 mW Speaker Audio
  • Zone / CH Number Voice Announcement
  • KMC-48GPS Speaker Mic Option
  • KPG-141D Windows® FPU
  • Flash Firmware Upgrading
  • PC Serial Interface
  • SDM Manual Input*1
  • Transparent Data Mode*1
No Image Available

KRA-24M

800 MHz Whip Antenna 1/4 wave end feed

KRA-32

KRA-32K

700/800 MHz Whip Antenna

No Image Available

KRA-36

700/800 MHz Stubby Antenna

KRA-38

KRA-38K

800/900 MHz Whip Antenna

KBP-5

KBP-5

AA Alkaline Refillable Battery Pack (6 AA; 9V) cells not included

No Image Available

KMB-16

Six Unit Charger Adapter for the KSC-16/20/24/25/25L chargers (chargers not included)

No Image Available

KMB-23

Six Unit Charger Adapter for the KSC-16/20/24/25/25L/32 chargers (chargers not included)

KNB-55

KNB-55L

1480 mAh, Li-ion battery - requires KSC-25SK/25LSK/256K/256AK charger

KNB-56

KNB-56N

1400 mAh, Ni-MH battery

KNB-57LAM

KNB-57LAM

2000 mAh, Li-ion battery
requires KSC-25SK/25LSK/256K/256AK charger

KNB-68

KNB-68LC

2000 mAh, Li-ion battery - requires KSC-25SK/25LSK/256K/256AK charger [Intrinsically Safe Option]

KSC-256

KSC-256AK

Rapid-rate 6-Unit charger for KNB-26N/55L/56N/57L/57LAM/68LC/78LM/79LCM

KSC-25LSK

KSC-25LSK

100~240 volt rapid rate single unit charger for KNB-40LC(V)/55L/57L/57LAM/68LC Li-ion Battery

No Image Available

KSC-25SK

110 volt Rapid-rate single-unit charger for KNB-26N/40LC(V)/55L/56N/57L/57LAM/68LC

No Image Available

KVC-23

Rapid-rate DC vehicular charger for TK-5x10/5x20, NX-5x00/x00/x10/x20, TK-x180, TK-x170, & TK-x360 portables with Lithium Ion/Lithium Polymer/NiMH packs only

No Image Available

KVC-4

Vehicular charger adapter for the KSC-16/18/20/24/25SK chargers (chargers not included) *KSC-25LSK is not compatible with KVC-4.

KBH-12

KBH-12

Spring action belt clip

No Image Available

KBH-13DS

Leather swivel belt loop with portable D-Ring attachment

No Image Available

KLH-179K3

Heavy-Duty Leather Case w/Swivel Belt Loop for NX-220K3/320K3/K6/420K3 (Full Keypad)

No Image Available

KLH-180K3

Nylon carrying case for NX-220K3/320K3/K6/420K3 (Full Keypad)

KEP-2

KEP-2

2.5mm earphone kit for KMC-17/45D Speaker Mic
[KEP-2 & KMC-21 are not plug-compatible]

KHS-10

KHS-10D-BH

Heavy-duty behind-the-headset w/noise canceling boom mic & in-line PTT

KHS-10

KHS-10D-OH

Heavy-duty over-the-headset w/noise canceling boom mic & in-line PTT

No Image Available

KHS-22

Behind-the-Head Headset with flexible boom mic and in-line PTT single ear

KHS-26

KHS-26

Clip Mic w/earphone

KHS-27

KHS-27A

D-Ring Ear Hanger w/PTT & Mic

No Image Available

KHS-31C

C-Ring Ear Hanger w/PTT & Mic

KHS-7

KHS-7

Single muff headset w/boom mic

KHS-7

KHS-7A

Lt. Wt Single muff headset w/boom mic & in-line PTT

KHS-8

KHS-8BL

Two-Wire palm mic w/earphone (black)

KHS-9

KHS-9BL

Three-Wire lapel mic w/earphone (black)

No Image Available

KMC-21

Compact speaker microphone

KMC-45

KMC-45D

MIL-SPEC, IP54/55 Speaker microphone (Built-in 2.5mm miniature earphone jack)

KMC-48GPS

KMC-48GPS

GPS Speaker Microphone

  • NX-420K3 806 - 870 MHz 3W, 260 CH, 8 characters Alphanumeric LCD, 4 PF Keys, Full Keypad
  • NX-420K3-SLKVP Li-ion Value Pack (NX-420K3 + KNB-55L + KSC-25LSK)
  • NX-420K3LAKVP Hi-Cap Li-ion Value Pack (NX-420K3 + KNB-57LAM + KSC-25LSK)
  • NX-420K3-SLKP Standard Slim Package (NX-420K3 + KNB-55L + KSC-25SK)
  • NX-420K3LAKP Premium Package (NX-420K3 + KNB-57LAM + KSC-25SK)
  • NX-420-ISK3 806 - 870 MHz 3W, 260 CH, 8 characters Alphanumeric LCD, 4 PF Keys, Full Keypad
