NXR-710 / 810

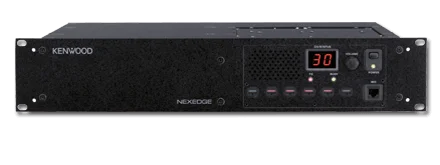

KENWOOD NXR-710

NXR-710 / 810

  • Description
  • Performance Characteristics
  • Physical Characteristics
  • User Environment

KENWOOD's NXR-710 and NXR-810 NEXEDGE® repeater is a low-cost, high-performance unit that provides a cost-effective infrastructure solution for single-site, local area applications. The NXR-710 and NXR-810 will provide analog or digital operation and is perfectly suited for a variety of operating environments such as sewage treatment plants, hospitals and hotels.

The NXR-710 and NXR-810 NEXEDGE® repeaters may be used as standalone 25 watt continuous or 40 watt intermittent duty stations or in conjunction with an external power amplifier. They both operate in analog mode at 25 KHz or 12.5 KHz, or in digital mode at 12.5 KHz or 6.25 KHz.

Frequency band:
VHF/UHF

Frequency range:
136-174 MHz (NXR-710) / 450-520 MHz, 400-470 MHz (NXR-810)

Power Output:
25W - 50W (NXR-710) / 25W - 40W (NXR-810)

Number of Channels/Groups/Zones:
30 Channels

Channel spacing:
12.5 / 15 / 25 / 30 kHz, 12.5 / 25 kHz Analog
6.25 / 7.5 / 12.5 / 15 kHz, 6.25 / 12.5 kHz Digital

Dimensions W x H x D
19 x 3-1/2 x 13-1/3 in

Weight
21.4 lbs

Keypad / Keys
No Keypad

Display
No Display

Operating temperature
-22˚ F to +140˚ F

Mil spec
N/A

IP Standards
N/A

  • Supports NXDN Conventional & NXDN Type-D Trunking (Option)
  • Mixed Digital & FM Analog Operation
  • 30 Channel Scanning Base Station (Conventional Mode)
  • Multi-Site Conventional IP Network (via KTI-3 option)
  • Programmable AUX I/O's
  • Two-Digit LED Display
  • 6 Lighted Programmable Function Keys
  • Front Panel Speaker
  • Rear External Speaker Output (4 Watts Audio)
  • FM Analog Trunking Controller Interface (LTR/MPT1327)
  • KPG-149RM/SA Repeater Monitor PC & iOS app
  • Volume Control
  • Microphone Jack
  • Program Interface
  • Remote Termination Interface
  • Programmable AUX I / O's
  • RF Power Down Detect
  • DTMF Front Panel PF Key Control
  • DTMF AUX Output Control
  • DTMF AUX Input Monitoring
  • External Frequency Reference (10 MHz) Connectivity
  • Windows® PC Programming
  • Flash Firmware Upgrading

No Accessories List at present

Please Contact Us for more information

  • NXR-710K Repeater, Digital, VHF, 136-174MHz, 25-50W
  • NXR-810K Repeater, Digital, UHF, 450-520MHz, 1-40W
  • NXR-810K2 Repeater, Digital, UHF, 400-470MHz, 1-40W
