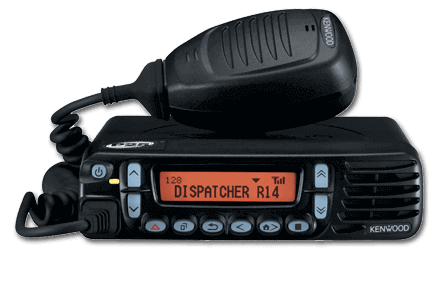

KENWOOD TK-5720 / 5820

KENWOOD's VHF and UHF P25 Portable Radios feature a compact, rugged design rich with capability and performance. The TK-5720/5820 mobiles join KENWOOD's higher tier P25 radio models to offer an expanded group of P25 solutions for all levels of public safety and service agencies. These new mid-tier P25 models operate in FM Analog and P25 Digital modes and combine AMBE + 2 Enhanced Full Rate Vocoder tehcnology along with KENWOOD's decades of audio heritage to deliver unmatched audio performance in a two-way radio.

Frequency Band:
VHF/UHF

Frequency Range:
136-174 MHz / 450-520 MHz, 400-470 MHz, 380-400 MHz

Power Output:
VHF: 50W, UHF: 45W

Number of Channels/Groups/Zones:
512 Channels / 128 Zones

Channel spacing:
12.5 / 15 / 25 / 30 kHz, 12.5 / 25 kHz Analog
12.5 kHz Digital

Dimensions W x H x D
6.30 x 1.77 x 6.18 in. (160 x 45 x 157 mm.)

Weight (with standard battery)
3.04 lbs (1.38 kg)

Keypad / Keys

Display
14 Character Alphanumeric Aliases
Backlit Dot Matrix LCD
3-Digit Sub-Display

Operating temperature
-22°F to +140°F

Mil spec
MIL-STD-810 C/D/E/F/G

IP Standards
IP54/55
