TK-D240V-340U

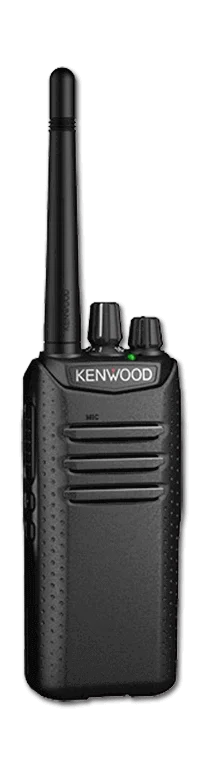

KENWOOD TK-D240

TK-D240V-340U

  • Description
  • Performance Characteristics
  • Physical Characteristics
  • User Environment

Ergonomically styled yet tough enough to comply with both MIL-STD and IP54/55 environmental standards, these portables provide the features and performance needed for a wide range of workplaces – from warehouses and stations to shops and hotels. As well as handling both analog and digital communications, these user-friendly DMR radios can even operate in direct mode, without a repeater. They also offer such KENWOOD added value as Call Interrupt and 1-watt audio output. These truly resourceful team members will enable you to make the most of your legacy analog equipment while also benefitting from digital communications.

Frequency band:
TK-D240VK: VHF; TK-D340UK: UHF

Frequency range:
TK-D240VK 136-174 MHz (TK-D240V)
450-520 MHz, 400-470 MHz (TK-340U)

Power Output:
1-5W / 1-4W

Standard battery chemistry type:
Li-ion

Battery life (based on a 5-5-90 duty cycle):
11.5 / 13.5 hrs

Number of Channels/Groups/Zones:
32 Channels / 2 Zones

Channel spacing:
25*/12.5 kHz Analog / 12.5 kHz Digital

Dimensions W x H x D (with standard battery)
2.13 x 4.78 x 1.33 in

Weight (with standard battery)
10.0 oz

Keypad / Keys
No Keypad

Display
No Display

Operating temperature
-22˚ F to +140˚ F

Mil spec
MIL-STD-810 C/D/E/F/G

IP Standards
IP54, IP55

  • Two-Slot TDMA
  • DMR Tier II
  • Two-in-One - Digital & Analog
  • FM Analog
  • DMR
  • Dual-Slot Direct Mode
  • Call Interruption
  • Tough All-Terrain
  • 1-Watt Audio Output70 MHz UHF Coverage
  • Selectable 8- or 16-Channel Channel Stopper
  • Audio output power 1 W @12 Ohms
  • Scanning functions
  • Password Protection (Read / Write)
  • Minimum Volume Setting
  • Embedded Message
  • Selective Call Alert LED
  • Key Lock
  • Late Entry
  • Analog Signaling: QT / DQT
  • Compander per Channel
  • Squelch Level
  • MDC-1200
  • FleetSync/II
  • Analog Scrambling – 16
  • Digital Encryption - 16
KRA-22M

KRA-22M

VHF low-profile antenna 148-162 MHz

KRA-22M2

KRA-22M

VHF low-profile antenna 162-174 MHz

KRA-22M3

KRA-22M

VHF Low-profile helical antenna 136-150 MHz

KRA-23M

KRA-23M

UHF low-profile antenna 450-490 MHz

KRA-23M2

KRA-23M2

UHF low-profile antenna 470-520 MHz

KRA-23M3

KRA-23M3

UHF Low-profile helical antenna 403-430 MHz

KRA-26M

KRA-26M

VHF helical antenna 146-162 MHz

KRA-26M2

KRA-26M2

VHF helical antenna 162-174 MHz

KRA-26M3

KRA-26M3

VHF helical antenna 136-150 MHz

KRA-27M

KRA-27M

UHF whip antenna 440-490 MHz

KRA-27M2

KRA-27M2

UHF whip antenna 470-520 MHz

KRA-27M3

KRA-27M3

UHF whip antenna 400-450 MHz

KRA-41M

KRA-41M

VHF stubby antenna 148-162 MHz

KRA-41M2

KRA-41M2

VHF stubby antenna 162-174 MHz

KRA-41M3

KRA-41M3

VHF stubby antenna 136-150 MHz

KRA-42M

KRA-42M

UHF stubby antenna 440-490 MHz

KRA-42M2

KRA-42M2

UHF stubby antenna 470-520 MHz

KRA-42M3

KRA-42M3

UHF stubby antenna 403-430 MHz

KMB-28AK

KMB-28AK

Six Unit Charger Adapter for the KSC-23BK/28/35SK chargers (chargers not included)
Note: The six KSC-xx AC wall Adapters are NOT used in the KMB-28 installation A supplied in-line AC-DC switching power supply with six DC plugs supply the six installed KSC-xx charger bases. This unit is lower profile and less weight than similar Kenwood six unit charger adapters.

KNB-29N

KNB-29N

1500 mAh, NiMH battery - requires KSC-43K charger

KNB-45L

KNB-45L

2000 mAh, Li-ion battery - requires KSC-35K/SK charger

KNB-69L

KNB-69L

2550 mAh, Li-ion battery - requires KSC-35K/SK charger

No Image Available

KNB-82LCM

CSA US Intrinsically Safe Battery Li-ion 2000mAh, battery only[Intrinsically Safe Option]

KSC-35SK

KSC-35SK

110~220 volt Fast rate single unit charger for KNB-45L/69L

KSC-43K

KSC-43K

110~220 volt Fast rate single unit charger for KNB-29N/45L/69L

KVC-22

KVC-22

110~220 volt Fast rate DC vehicular charger adapter for KSC-35SK charger & KNB-45L Li-ion battery (charger not included)

KBH-10

KBH-10

Spring action belt clip

No Image Available

KBH-8DS

Leather swivel belt loop with portable D-Ring attachment

KLH-187

KLH-187

Nylon case for TK-*200/*202/*300/*302/*400/*402 Series

KEP-2

KEP-2

2.5mm earphone kit for KMC-17/45D Speaker Mic
[KEP-2 & KMC-21 are not plug-compatible]

KHS-10

KHS-10D-BH

Heavy-duty behind-the-headset w/noise canceling boom mic & in-line PTT

KHS-10

KHS-10D-OH

Heavy-duty over-the-headset w/noise canceling boom mic & in-line PTT

No Image Available

KHS-22

Behind-the-Head Headset with flexible boom mic and in-line PTT single ear

KHS-26

KHS-26

Clip Mic w/earphone

KHS-27

KHS-27A

D-Ring Ear Hanger w/PTT & Mic

No Image Available

KHS-31C

C-Ring Ear Hanger w/PTT & Mic

KHS-7

KHS-7

Single muff headset w/boom mic

KHS-7

KHS-7A

Lt. Wt Single muff headset w/boom mic & in-line PTT

KHS-8

KHS-8BL

Two-Wire palm mic w/earphone (black)

KHS-9

KHS-9BL

Three-Wire lapel mic w/earphone (black)

No Image Available

KMC-21

Compact speaker microphone

KMC-45

KMC-45D

MIL-SPEC, IP54/55 Speaker microphone (Built-in 2.5mm miniature earphone jack)

  • TK-D240VK 136-174 MHz VHF 5W, 16 Ch / 2 Zones
  • TK-D340UK 450-520 MHz UHF 4W, 16 Ch / 2 Zones
  • TK-D340UK2 400-470 MHz UHF 4W, 16 Ch / 2 Zones
  • TK-D240-ISCVK 136-174 MHz VHF 5W, 16 Ch / 2 Zones Note: Can be used in Class I Gas Environment only
  • TK-D340-ISCUK 450-520 MHz UHF 5W, 16 Ch / 2 Zones Note: Can be used in Class I Gas Environment only
  • TK-D340-ISCUK2 400-470 MHz UHF 5W, 16 Ch / 2 Zones Note: Can be used in Class I Gas Environment only
