TK-D740HV / 840HU

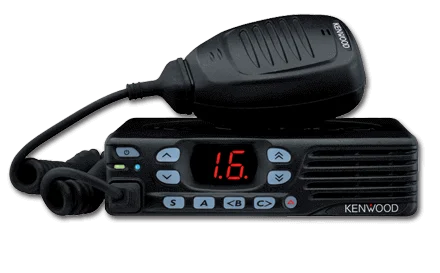

KENWOOD TK-D740

TK-D740HV / 840HU

  • Description
  • Performance Characteristics
  • Physical Characteristics
  • User Environment

The TK-D740HV and TK-D840HU mobiles are part of KENWOOD’s impressive DMR system line-up. Thanks to compliance with MIL-STD and IP54 environmental standards, they can be relied on through thick and thin. As well as handling both analog and digital communications, these user-friendly DMR radios can even operate in direct mode, without a repeater. They also offer KENWOOD Call Interrupt and also benefit in having KENWOOD enhanced audio quality. These truly resourceful team members will enable you to make the most of your legacy analog equipment while also benefitting from digital communications.

Frequency band:
VHF/UHF

Frequency range:
136-174 MHz (TK-D740V)
450-520 MHz, 400-470 MHz (TK-D840U)

Power Output:
5-25W, 5-50W (TK-D740V) / 5-25W, 5-45W (TK-D840U)

Number of Channels/Groups/Zones:
32 Channels / 2 Zones

Channel spacing:
25*/12.5 kHz Analog / 12.5 kHz Digital

Dimensions W x H x D
6.29 x 1.69 x 4.82 in

Weight
2.42 lb

Keypad / Keys
No Keypad

Display
2-Digit LED Channel Display

Operating temperature
-22˚ F to +140˚ F

Mil spec
MIL-STD-810 C/D/E/F/G

IP Standards
IP54

  • 2 Conventional Zones
  • 2-Digit LED Channel Display
  • Function/Status LED Dots
  • Backlit Keys
  • Transmit /Busy / Call Alert LED
  • Blue Function/Status LED
  • 9 Programmable Function Keys
  • Emergency / AUX Key
  • 4W Speaker Audio
  • Voice CH# Announcement
  • DB15 Accessory Interface
  • 8 Programmable I/O Ports
  • KPG-175DN Windows® FPU
  • PC Serial Interface
  • GPS Receiver Option
No Image Available

KMB-34

Control Station Mounting Case for KPS-15 Power Supply and Mobiles (excludes TK-5x10/6110 series).
(mobile mounting hardware included)

KMC-59

KMC-59C

Control Station Desktop Microphone (8-pin mod. plug)
Note: Compatible with FDMA (analog) and TDMA operations.

KMC-9

KMC-9C

Control Station Desktop Microphone (8-pin mod. plug)

No Image Available

KPS-15

DC Switching Power Supply (117/230 VAC; 23A max. continuous, 25A peak)

KES-3

KES-3S

External speaker (compact low profile; black case; 3.5 mm phono plug-in)

KES-5

KES-5

External speaker, 40W max input
Note: requires KCT-60M installed.

KMC-35

KMC-35

MIL-SPEC Standard electret mobile microphone (8-pin mod. plug) - same as supplied

KMC-36

KMC-36

MIL-SPEC Standard electret mobile microphone with 12-key DTMF (8-pin mod. plug)

KCT-18

KCT-18

Ignition sense cable (requires KCT-60M Acc. Cable Option)

KCT-36

KCT-36

Extension Cable for KCT-34/35/39/40M/60M; 117.6 inches (9.8 ft)

KCT-60

KCT-60M

DB15-to-15pin Molex Adapter Cable

KLF-2

KLF-2

Line Filter (suppresses alternator whine, 25dB, 25A max).

KMB-10

KMB-10

Key lock adapter
