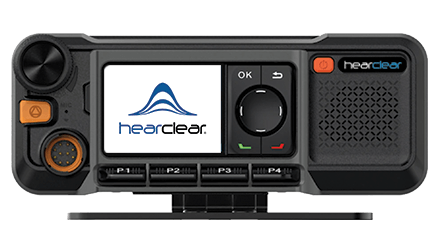

MNC360

HearClear

MNC360

Performance Characteristics

Operating System
Android 7.1

LTE Frequency Bands
FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B26/B28
TDD-LTE: B38/B39/B40/B41 (2496–2690 MHz) GSM: 850/900/1800/1900
WCDMA B1/B2/B3/B4/B5/B8

Wi-Fi
2.4GHz 802.11b/g/n

Bluetooth
BT 4.2

Positioning System
GPS (A-GPS)/BDS

Certifications
FCC/CE/IC

Physical Characteristics

Dimensions H x W x D (with standard battery)
6 5/8” x 2 5/8” x 1 1/2” (170 x 66 x 39mm)

Weight (with standard battery)
10.6oz (300g)

Display
2” LCD 320x240

RAM Capacity
1 GB

ROM Capacity
8 GB

Input Voltage
9-25V DC

Speaker
4W

Port Interfaces
Two LTE antenna ports, 2-pin external speaker port, GPS antenna port, MicroUSB 2.0 connector, 3.5mm audio accessory port, secure10-pin aviation port for handheld mic, power connector

Card Slots
Two Micro-SIM slots, TF Card slot (up to 128 GB)

User Environment

Operating temperature
-4° to +140° F (-20° to +60° C)

Storage Temperature
-40° to +185° F (-40° to +85° C)

ESD
IEC 61000-4-2, (ESD) ± 12 kV (air); ± 8 kV

IP Standards
IP54 for water and dust resistance

Request A Quote

NATIONWIDE COVERAGE
Cellular SIM card enables mobile network access for nationwide coverage with cellular 4G/LTE connectivity, and dual LTE paddle antennas improve RX sensitivity by 3dB for excellent reception in weak signal areas.

INSTANT GROUP AND INDIVIDUAL CALLING
Push-to-Talk button on the handheld microphone initiates voice calls to groups or individuals, and the HALO Dispatch web-based communications and location tracking application supports instant group calling to the MNC360 and other PoC devices.

INDUSTRY LEADING AUDIO QUALITY
The MNC360 features digital noise cancellation technology, distortion and howling suppression, and an exclusive patented acoustic speaker cavity and forward facing 4-Watt high-volume speaker to deliver excellent voice quality in loud environments.

GPS POSITIONING
Highly accurate external GPS antenna enables speed monitoring and real-time location tracking with breadcrumbs and geofencing with the Hytera HALO Dispatch application.

COMPACT AND EASY TO INSTALL
Weighing only 10.6 ounces, the MNC360 is compact for flexible installations, and a rotating mounting bracket enables attaching the MNC360 on top of the dashboard or on a vertical surface in the vehicle. The MNC360 features highly sensitive, dual LTE antennas to reduce the need to install an external antenna (depending on where the MNC360 is installed inside the vehicle).

DESIGNED FOR SAFETY
Eyes stay on the road with raised tactile buttons, piano style keys, and lightweight handheld microphone for safe and simple push-to-call operation. The MNC360 features speeding and driver fatigue notifications, and an emergency call button for instant one-touch emergency calls to dispatcher and other PoC devices.

CLEAR AND BRIGHT DISPLAY
The LCD display screen is easily visible even in bright sunlight.

CELLULAR OPERATOR SMART SWITCH
Supports two SIM cards and smart switching between operator networks to access the strongest signal strength for reliable communications.

ANDROID OPERATING SYSTEM
The MNC360 is powered by the Android mobile platform.

BUILT-IN WI-FI
Built-in Wi-Fi for flexible network access and using the MNC380 as a dispatch console.

FLEXIBLE INTEGRATION
With the standard API and SDK, the MNC360 communications capabilities can be integrated into mobile fleet management and telematics applications.

RICH WITH ACCESSORIES
The MNC360 features a 3.5mm audio jack for wired earpiece accessories, a Micro USB 2.0 port for connecting and powering a variety of external devices, built-in Bluetooth for hands-free microphones and other wireless accessories, and a 2-pin port for an external loudspeaker.

The MNC360 enables cost-effective fleet communications and dispatching with fast and easy deployments.

4G/LTE cellular networks provide reliable nationwide coverage that requires no investment in traditional radio network infrastructure or FCC frequency licensing.

The MNC360 delivers instant nationwide group and individual calling right out of the box.

Please contact us for more information

EHW08

Bluetooth Earpiece with PTT button and microphone

SEC1223

External Power Supply for Desktop Operation

PWC34

Power Cord

SM16 A1

Portable Microphone (IP54)

GPS04

Vehicle GPS Antenna

Please contact us for more information
