HearClear

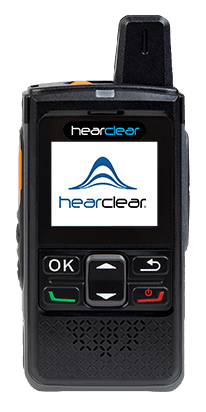

PNC360s
Performance Characteristics
Standards and Frequencies
LTE
FDD-LTE：B2/B3/B4/B5/B7/B12/B13/B17/B26/B28
TDD-LTE：B38/B41
WCDMA：B2/B4/B5
GSM：850/900/1800/1900
Wi-Fi
2.4GHz 802.11b/g/n
Bluetooth
BT 4.2
Positioning System
GPS/Galileo/AGPS
Standard battery chemistry type:
4000mAh Lithium Polymer
Battery life (based on a 5-5-90 duty cycle):
Up to 48 Hours
Physical Characteristics
Dimensions H x W x D (with standard battery)
4 3/32” x 2 3/16” x 1 1/16”(104 x 55 x 27mm)
Weight (with standard battery)
6.7oz (190g) Including Belt Clip
Display
1 3/4” TFT LCD Non-touch screen display, 160x128
Operating System
Android 7.0
Memory
1GB RAM + 8GB ROM
Card Slot<
Nano-SIM
Speaker Power
2W (rated), 3W (max)
External Interface Ports
USB Type C Charging Port, 3.5mm Audio Interface
Positioning
GPS/Galileo/AGPS
User Environment
Operating temperature
-4°F to +140°F (-20°C to +60°C)
Storage Temperature
-22°F to +158°F (-30°C to +70°C)
ESD
IEC 61000-4-2 (Level 4) ±8kV Contact, ±12kV Air
Dust and Water Ingress
IP67 Standard
Humidity
MIL-STD-810 H Certified
Shock and Vibration
Per MIL-STD-810 H Certified. Drop Proof to 1.2 meters
PNC360S KEY FEATURES
NATIONWIDE COVERAGE
National workforce communication with mobile 4G/LTE connectivity supported by the Micro-SIM.
BUILT-IN WI-FI
Built-in Wi-Fi supports in-building communications with seamless switching to LTE networks when outside Wi-Fi range.
GPS POSITIONING
GPS enables real-time tracking and positioning for the Hytera HALO Dispatch application.
HIGH-QUALITY AUDIO
Digital noise suppression and high-volume speakers for excellent voice quality in loud environments. Provides high-quality digital audio performance for individual calls, group calls, and emergency calls.
BUILT-IN BLUETOOTH
Built-in Bluetooth enables connectivity to earpieces, Push-to-Talk rings, and other wireless accessories.
TFT LCD DISPLAY
The LCD display provides high-resolution visibility even under bright daylight. Supports an easy-to-use GUI menu system with clean and simple navigation.
RELIABLE AND DURABLE
Compliant with MIL-STD-810-G for shock and vibration, and IP67 rated for water submersion and dust resistance. Anti-magnetic speaker keeps metal fragments from damaging the speaker.
LONG-LIFE BATTERY
Powerful 4000mAh Lithium Polymer battery delivers several days of operation on a single charge, and supports fast charging. Rated for over 48 hours 10/10/80 operation (10% transmitting, 10% receiving, 80% idle).
TEXT MESSAGING
Receive and view text messages sent from dispatcher and other PoC devices.
PRE-INSTALLED APPS
Android apps provide convenient PoC services
STUN AND REVIVE
Dispatcher can remotely stun (disable) or revive (return to service) if the radio is lost or stolen
EMERGENCY ALARMS AND CALLING
Emergency Alarms can be sent to other radios via the one touch programmable button to improve worker safety and emergency response time
Please contact us for more information
|
POA121 Bluetooth Ring PTT |
|
|
SM27 W2 Bluetooth Remote Speaker Mic with charging cable |
|
|
EHS24 C-Style Earpiece with Push-to-Talk Mic |
|
|
BC51 Belt Clip |
|
|
BP4008 4000mAh Li-Ion Battery |
|
|
PC1433 Programming Cable - USB Type C |
|
|
RO03 Wrist Strap |
|
|
PS2023 Power Adapter - Input: 100-240VAC, Output: 12VDC/2A |
Please contact us for more information
