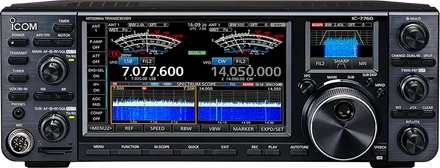

ICOM
7760
High Power & Clean Transmit Signal for Great Strength in Contests and DX Hunting
A New Innovative Shack Style
The IC-7760 introduces an innovative approach to station setup by separating the control head from the RF deck, connecting them with a standard LAN cable. This increases the flexibility of your station installation, making more space available on the desktop by placing the RF deck in an area closer to the antenna feed point. The system also supports in-house remote operation over your home network without requiring a PC, allowing the transceiver to be controlled from anywhere a LAN connection is available.
Performance Characteristics
Frequency coverage:
Rx:
0.030–60.000MHz
Tx:
1.800–1.999MHz
3.500–3.999MHz
5.255–5.405MHz
7.000–7.300MHz
10.100–10.150MHz
14.000–14.350MHz
18.068–18.168MHz
21.000–21.450MHz
24.890–24.990MHz
28.000–29.700MHz
50.000–54.000MHz
Power Output:
1–200W (SSB, CW, FM, RTTY)
0.25–50W (AM)
Mode:
USB, LSB, CW, RTTY, PSK31/63, AM, FM
Receiver system:
Direct sampling superheterodyne
Sensitivity (SSB/CW):
0.16µV typical (1.800–29.999MHz)
0.13µV typical (50MHz)
Antenna connectors:
4 × SO-239 (50Ω)
1 × BNC (receive antenna)
User Environment
Operating temperature
32°F to 122°F
Physical Characteristics
Dimensions W x H x D (RF deck)
16.7×5.9×17.4in
Dimensions W x H x D (control head)
13.4×4.6×4.1in
Weight (RF deck)
34.8lb
Weight (control head)
5.1lb
Display
7 inch WVGA (800×480) main touch LCD
2.4 inch (320×240) sub touch LCD
Power supply
90–264V AC (RF deck)
15.0V DC ±0.75V (control head)
Separate Control Head and RF Deck
The control head and RF deck connect over a standard LAN cable, so the RF deck can sit closer to the antenna feed point while the control head stays on the desktop. The same connection supports in-house remote operation across your home network without a PC.
Dual, Independent Receivers
Two independent receivers allow simultaneous reception on different bands, with a dual spectrum scope and waterfall display so both can be monitored at once.
RF Direct Sampling with FPGA Processing
The RF direct sampling system digitises signals early in the receive chain, reducing the noise generated across conventional IF stages.
200W Output at 100% Duty Cycle
Digital pre-distortion (DPD) technology supports a clean transmit signal at 200W output with a 100% duty cycle, for extended contest and DX operating.
Built-in Automatic Antenna Tuner
A mechanical relay automatic antenna tuner is built in, with 15 bandpass filters — 11 of them for the HF bands.
Dual Speakers
Separate speakers keep MAIN and SUB audio distinct when working two bands at once.
