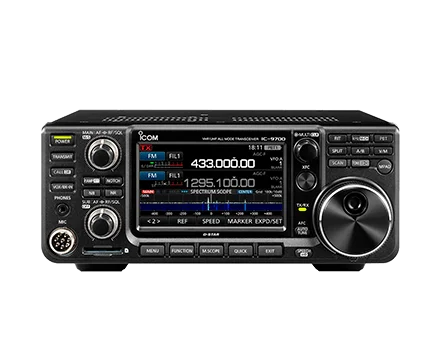

ICOM
9700
High-Speed Real-Time Spectrum Scope, Waterfall Display, and Built-in 1200 MHz! This Supreme VHF/UHF Transceiver Provides a Brand New Experience!
Direct Sampling Brought to the VHF/UHF World
Built with the VHF/UHF weak signal operator in mind, the IC-9700 is an RF direct sampling receiver for 2m and 70cm. The IF receiver consists of a single, down conversion for 23cm that is between 311 – 371MHz. This design provides a quiet receiver due to Icom’s DSP technology. The robust PA provides 100W on 2m, 75W on 70cm, and 10W on 23cm.
Performance Characteristics
Frequency coverage:
144.000–148.000,
430.000–450.000,
1240.000–1300.000 MHz
Power Output:
0.5–100 W
Mode
SSB, CW, RTTY, AM, FM, DV, DD
Number of memory channels:
Simplex: 297 (99 channels × 3 bands),
Program scan edges: 18 (6 channels × 3 bands)
CALL channel: 6 (2 channels × 3 bands)
Satellite: 99
DR function: 2500
User Environment
Operating temperature
14°F to 140°F
Physical Characteristics
Dimensions W x H x D
9.4 × 3.7 × 9.4 in
Weight
10.4 lb
Display
