CY5000/CY6000

Icom CY-5000

CY5000/CY6000

  • Description
  • Performance Characteristics
  • Physical Characteristics
  • User Environment

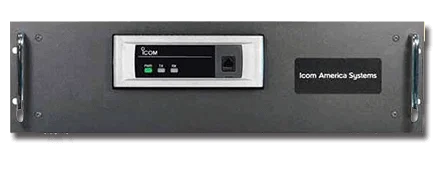

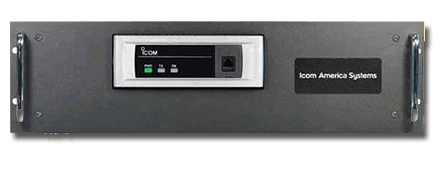

All-in-One, Plug and Play IDAS™ Digital + Analog Repeater
The CY series is an all in one, plug and play digital and analog base station repeater. The CY has a robust and rack mountable chassis, auto battery backup, and it utilizes the IDAS UR repeater module, making it ready for everyday communications at full power.

  • Built around the robust 19ā€ rack mountable CY series chassis
  • Utilizes the IDAS™ UR repeater module
  • Internal 110/220VAC power supply
  • Auto battery backup
  • Terminal screw connector for easy external battery connection
  • DB-25 connector
  • Fan
  • Three shielded data ports
  • Silver-plated ā€œNā€- type bulkhead RF connectors
  • Built-in grounding stud
  • 80 CFM heavy duty cooling fan ā€“ draws air from the top vents across the UR module for cooling

Available in Four Versions:

  • Simple (CY-5000)
  • With duplexer installed
  • With pre-selector installed
  • With both duplexer and pre-selector installed

Frequency band:
VHF, UHF

Frequency range:
VHF: 136-150MHz, 150-174MHz
UHF: 440-520MHz, 440-520MHz

Power Output:
NA

Number of Channels/Groups/Zones:
NA

Channel spacing:
NA

Dimensions H x W x D (with standard battery)

Weight (with standard battery)

Keypad / Keys

Display

Operating temperature

Mil spec

IP Standards

Additional Information Here

No Accessories List at present

Please Contact Us for more information

  • CY5000 136-174MHz IDAS analog/digital repeater with power supply
  • CY6001 400-470MHz IDAS analog/digital repeater with power supply
  • CY6002 450-512MHz IDAS analog/digital repeater with power supply
