ICOM F3230D - F4230D

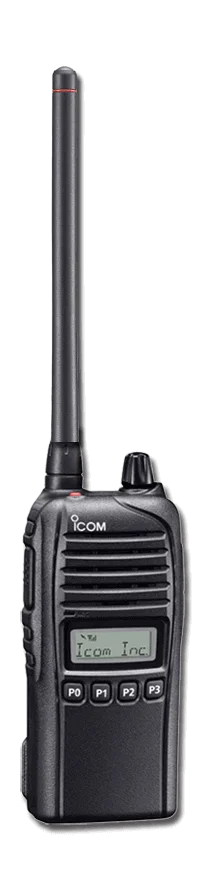

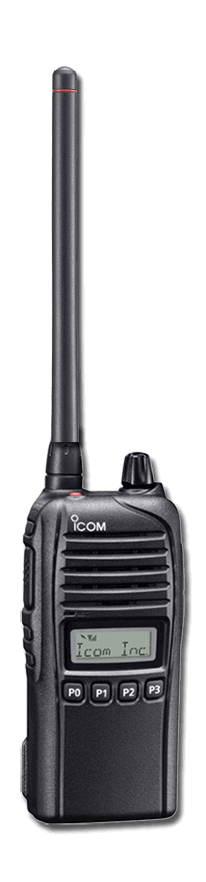

Icom F3230D

F3230D - F4230D

  • Description
  • Performance Characteristics
  • Physical Characteristics
  • User Environment

IDAS™ Digital Mode Operation
The IC-F3230D series provides NXDN™ CAI-based IDAS digital mode operation. It is compatible with IDAS multi-site and single-site trunking and IDAS multi-site conventional.

IP67 Waterproof and Dust-Tight Protection
The IC-F3230D series provides outstanding protection against water and dust equivalent to IP67. The IC-F3230D series can withstand 1m depth of water for 30 minutes and its dust-tight construction prevents the ingress of powder dust, sand, mud and other objects.

Frequency band:
VHF, UHF

Frequency range:
F3230D: 136–174MHz; F4230D: 400-470MHz, 450-512MHz

Power Output:
VHF: 5W, UHF: 4W

Standard battery chemistry type:
Li-Ion

Battery life (based on a 5-5-90 duty cycle):
Up to 19 hours (VHF)
Up to 17 hours (VHF)

Number of Channels/Groups/Zones:
128 Channels / 8 Zones

Channel spacing:
15 / 12.5 / 6.25 kHz

Dimensions H x W x D (with standard battery)
53×120×37 mm; 2.09×4.72×1.46 in

Weight (with standard battery)
340g; 12oz

Keypad / Keys
4 Keys

Display
8-character alphanumeric LCD

Operating temperature
-30°C to +60°C; -22°F to +140°F

Mil spec
810-C, -D, -E, -F, -G

IP Standards
IP67

Easy to Hear in Noisy Areas
The built-in bridge-tied load (BTL) amplifier delivers a powerful 1000mW* audio output from the large speaker. In addition, the digital modulation provides distinct clarity even at the fringes of the communication range. * Typical with internal speaker

Channel Announcement
When you change the operating channel, the radio announces the channel number. Convenient for making radio adjustments without having to look at the radio.

8-character LCD
An 8-character alphanumeric LCD with user-friendly icons shows a variety of information and operating status, such as caller's name, received message, etc.

Roaming Scan
In the multi-site trunking mode, if the signal condition worsens as the radio user moves, the roaming scan automatically finds a new site to retain the communication link and quality

IDAS™ Digital Mode Features

  • In the multi-site trunking mode, if the signal condition worsens as the radio user moves, the roaming scan automatically finds a new site to retain the communication link and quality.
  • PTT ID and ANI
  • Status
  • Radio check (RX)
  • Call alert
  • Emergency
  • ATB (All Trunks Busy) ring back
  • SDM (Short Data Message)
  • RAN (Radio Access Number)
  • Stun/kill/revive (RX)
  • Remote monitor (RX)
  • Digital voice scrambler

*TX: Transmit, RX: Receive

Other Features

  • CTCSS/DTCS encode/decoder*
  • Up to 128 memory channel with 8 zones
  • Optional HM-HMHD717WP, waterproof speaker-mic
  • Low battery alert
  • Voting scan
  • Talk around function
  • Surveillance function
  • 2-step power save
  • Time out timer
  • Lone worker function

Forced narrow function*

ICOM FASC25U

FASC25U

400-430MHz Antenna for LM portables

ICOM FASC25V

FASC25V

136-150MHz Antenna for LM portables

ICOM FASC26US

FASC26US

400-450MHz Stubby antenna for LM portables

ICOM FASC26VS

FASC26VS

136-144MHz Stubby antenna for LM portables

ICOM FASC27VS

FASC27VS

142-150MHz Stubby antenna for LM portables

ICOM FASC28V

FASC28V

142-162MHz Antenna for LM portables

ICOM FASC29V

FASC29V

160-174MHz Antenna for LM portables

No Image Available

FASC55V

146-174MHz Standard antenna for LM portables

ICOM FASC56VS

FASC56VS

150-160MHz Stubby antenna for LM portables

ICOM FASC57U

FASC57U

430-470MHz Standard antenna for LM radios (red ring)

ICOM FASC57VS

FASC57VS

160-174MHz Stubby antenna for LM portables

No Image Available

FASC61UC

380-520MHz Cut antenna for the specific frequency desired

No Image Available

FASC61VC

136-174MHz Cut antenna for the specific frequency desired

No Image Available

FASC62V

150-160MHz High gain antenna for LM portables (10")

No Image Available

FASC63V

155-165MHz High gain antenna for LM portables (9.5")

ICOM FASC72U

FASC72U

470-512MHz Antenna for LM portables

ICOM FASC73US

FASC73US

450-470MHz Stubby antenna for LM portable radios

No Image Available

LAIRD EXH 160 MXI

155-160MHz Antenna

No Image Available

LARSEN SPHL10160IC

151-163MHz Helical ¼ wave antenna center tuned to 157MHz

ICOM BP232WP

BP232WP

Battery Li-ion 7.4V 2300mAh IP67 waterproof
2300mAh (typical capacity), 2250mAh (minimum value)

No Image Available

AW STUD/SWIVEL KIT

Metal stud that slides on like a belt clip and it's attached to a strong metal swivel belt clip

ICOM AW SWIVEL

AW SWIVEL

Swivel clip used with the AW Stud/Swivel Kit.

No Image Available

MB93

Swivel belt clip

ICOM MB94

MB94

Alligator belt clip

ICOM MB94R

MB94R

Alligator belt clip with long clip that angles the antenna/top of radio off the body

ICOM MB96N

MB96N

Swivel belt hanger to use with standard belt clip

ICOM OPC515L

OPC515L

DC power cable for single-unit rapid chargers

ICOM OPC656

OPC656

DC power cable for gang charger

No Image Available

LCF3021S SWIVEL

Leather carrying case with a metal swivel clip and cutout for the display

ICOM NCF3021S CLIP

NCF3021S CLIP

Nylon carrying case with a clip and cutout for the display

ICOM AD106

AD106

Adapter cup for the BC119N/BC121N for the radios with the BP232N/H battery

ICOM AD122

AD122

Adapter cup that fits into the BC197 22/23 for the BP232N/H batteries

No Image Available

BC145SA 31

AC adapter for BC119N
100-240V with US style plug

ICOM BC147SA

BC147SA

AC adapter for trickle chargers
100-240V with a US style plug

ICOM BC157S

BC157S

AC adapter for gang chargers
100-240V with US style plug

ICOM BC160

BC160

Rapid charger for radios with the BP230/231/232 battery
100-240V with a US style plug

ICOM BC197 22

BC197 22

6-unit charger for radios with the BP232N/H Li-Ion battery
(includes AC adapter and cups installed)
100-240V with US style plug

ICOM HS94

HS94

Earpiece headset
for VS/OPC2004/OPC2006/OPC1392

ICOM HS95

HS95

Headset with boom microphone
use with VS/OPC2004/OPC2006/OPC1392

ICOM HS97

HS97

Earphone with throat mic headset
use with VS/OPC2004/OPC2006/OPC1392

ICOM VS1L

VS1L

VOX/PTT case with 2-pin right angle connector. Must use with HS94/HS95/HS97

No Image Available

HM-HD7I7WP

Large waterproof speaker microphone with 3.5mm accessory jack
(right angle 2-pin screw down connector)

ICOM HM158LA

HM158LA

Compact speaker microphone with revolving clip and earphone jack
(right angle 2-pin screw down connector, stereo mic/mono speaker)

ICOM HM159LA

HM159LA

Large speaker microphone with earphone jack and metal alligator clip
(right angle 2-pin screw down connector, stereo mic/mono speaker)

ICOM HM128L

HM128L

Earphone/microphone with 2-pin right angle connector

No Image Available

HM153LA

Covert durable microphone with earphone combination
(right angle 2-pin screw down connector)

  • F3230DS 13 136-174MHz IDAS 128 channel MultiTrunk portable with display
  • F4230DS 13 400-470MHz IDAS 128 channel MultiTrunk portable with display
  • F4230DS 32 450-512MHz IDAS 128 channel MultiTrunk portable with display
