ICOM F3261D / F4261D

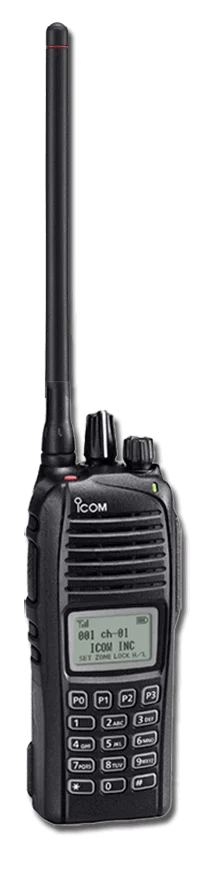

Icom F3261D

F3261D / F4261D

  • Description
  • Performance Characteristics
  • Physical Characteristics
  • User Environment

The IC-F3261D series provides rugged protection against dust and water that is equivalent to IP67. The radio can withstand 1m depth of water for 30 minutes.

800mW Audio Output Power
The built-in BTL amplifier doubles the audio output power and the large 40mm speaker delivers loud audio to receive all calls under noisy environments. Even when using an optional speaker-microphone, the BTL amplifier output increases the audio output from the external accessory connector.

IP67 Dust-Tight & Waterproof Protection
The IC-F3261D series provides rugged protection against dust and water that is equivalent to IP67. The IC-F3261D series can withstand 1m depth of water for 30 minutes and its dust-tight construction shuts out powder dust, sand and other objects.

Frequency band:
VHF, UHF

Frequency range:
F3261DT/DS: 136–174MHz; F4261DT/DS: 400-470MHz, 450-512MHz

Power Output:
5W

Standard battery chemistry type:
Li-Ion

Battery life (based on a 5-5-90 duty cycle):
10.5 hours

Number of Channels/Groups/Zones:
512 Channels / 128 Zones

Channel spacing:
12.5 / 6.25kHz

Dimensions H x W x D (with standard battery)
54 (W) ×142.7 (H) ×39.5 (D) mm; 2.13x5.62x1.56in.

Weight (with standard battery)
370g; 13.1oz

Keypad / Keys
F3261DT: Full keypad
F4261DS: Simple keypad

Display
Large full dot-matrix LCD

Operating temperature
-30°C to 60°C; –22°F to +140°F

Mil spec
810-C, -D, -E, -F and -G.

IP Standards
IP67

800mW Audio Output Power
The built-in BTL amplifier doubles the audio output power and the large 40mm speaker delivers loud audio to receive all calls under noisy environments. Even when using an optional speaker-microphone, the BTL amplifier output increases the audio output from the external accessory connector.

IP67 Dust-Tight & Waterproof Protection
The IC-F3261D series provides rugged protection against dust and water that is equivalent to IP67. The IC-F3261D series can withstand 1m depth of water for 30 minutes and its dust-tight construction shuts out powder dust, sand and other objects.

Built-in GPS
The built-in GPS receiver* offers a position reporting function that sends your current position information to other IDAS radios or dispatch stations at regular intervals or preprogrammed timing.
* Available on specific versions.

Man Down and Lone Worker Functions for Emergency Calls
The man down function* automatically sends an emergency signal when the transceiver is left in a horizontal position for a preset period. The lone worker function also can transmit an emergency signal when the radio is not operated for a preset period. These emergency functions can be used to alert your co-workers or dispatcher to any potential trouble.
* Available on specific versions.

IDASTM Features
The IC-F3261D series provides NXDN™ CAI-based IDAS digital mode operation. It is also compatible with NXDN™ Type-D multi-site and single-site trunking. The following IDAS features are programmable.

  • Individual/group call
  • Talk back and call mode selection
  • SDM (Short Data Message)
  • Status message
  • GPS
  • Radio check
  • Stun, kill and revive
  • Call alert
  • Remote monitor
  • Emergency
  • Digital voice scrambler
  • Block decode
  • RAN (Radio Access Number)

Analog FM Mode Features

  • 2-Tone, 5-Tone, CTCSS and DTCS
  • MDC 1200 compatible
  • Inversion type voice scrambler
  • Basic LTR™ trunking

Other Features

  • 512 memory channels with 128 zones
  • Large 2300mAh (typ.) Lithium-Ion battery
  • Mode dependent scan and priority scan
  • Optional waterproof speaker-mic, HM-184
  • Busy channel lockout, repeater lockout
  • 14-pin accessory connector
  • Escalating alarm
  • Dot-matrix, multi-function display
  • MIL-STD 810 G rugged construction
  • DTMF autodial
  • Power on password
  • Low battery alert
  • Time-out-timer
  • Surveillance function
  • Talk around function
ICOM FASC25U

FASC25U

400-430MHz Antenna for LM portables

ICOM FASC25V

FASC25V

136-150MHz Antenna for LM portables

ICOM FASC26US

FASC26US

400-450MHz Stubby antenna for LM portables

ICOM FASC26VS

FASC26VS

136-144MHz Stubby antenna for LM portables

ICOM FASC27VS

FASC27VS

142-150MHz Stubby antenna for LM portables

ICOM FASC28V

FASC28V

142-162MHz Antenna for LM portables

ICOM FASC29V

FASC29V

160-174MHz Antenna for LM portables

No Image Available

FASC55V

146-174MHz Standard antenna for LM portables

ICOM FASC56VS

FASC56VS

150-160MHz Stubby antenna for LM portables

ICOM FASC57U

FASC57U

430-470MHz Standard antenna for LM radios (red ring)

ICOM FASC57VS

FASC57VS

160-174MHz Stubby antenna for LM portables

No Image Available

FASC61UC

380-520MHz Cut antenna for the specific frequency desired

No Image Available

FASC61VC

136-174MHz Cut antenna for the specific frequency desired

No Image Available

FASC62V

150-160MHz High gain antenna for LM portables (10")

No Image Available

FASC63V

155-165MHz High gain antenna for LM portables (9.5")

ICOM FASC72U

FASC72U

470-512MHz Antenna for LM portables

ICOM FASC73US

FASC73US

450-470MHz Stubby antenna for LM portable radios

No Image Available

LAIRD EXH 160 MXI

155-160MHz Antenna

No Image Available

LARSEN SPHL10160IC

151-163MHz Helical ¼ wave antenna center tuned to 157MHz

ICOM BP232WP

BP232WP

Battery Li-ion 7.4V 2300mAh IP67 waterproof
2300mAh (typical capacity), 2250mAh (minimum value)

No Image Available

MB93

Swivel belt clip

ICOM MB94

MB94

Alligator belt clip

ICOM MB94R

MB94R

Alligator belt clip with long clip that angles the antenna/top of radio off the body

ICOM MB96N

MB96N

Swivel belt hanger to use with standard belt clip

ICOM OPC515L

OPC515L

DC power cable for single-unit rapid chargers

ICOM OPC656

OPC656

DC power cable for gang charger

ICOM LCF3261S SWIVEL

LCF3261S SWIVEL

Leather carrying case with a swivel clip and cutout for the display

ICOM CF3261S CLIP

NCF3261S CLIP

Nylon carrying case with a clip and cutout for the display

ICOM NCF3261T CLIP

NCF3261T CLIP

Nylon carrying case with a clip and cutout for the DTMF keypad

ICOM AD106

AD106

Adapter cup for the BC119N/BC121N for the radios with the BP232N/H battery

ICOM AD122

AD122

Adapter cup that fits into the BC197 22/23 for the BP232N/H batteries

No Image Available

BC123SA

AC adapter for rapid chargers
100-240V with US style plug

ICOM BC157S

BC157S

AC adapter for gang chargers
100-240V with US style plug

ICOM BC160

BC160

Rapid charger for radios with the BP230/231/232 battery
100-240V with a US style plug

ICOM BC197 22

BC197 22

6-unit charger for radios with the BP232N/H Li-Ion battery (includes AC adapter and cups installed)
100-240V with US style plug

ICOM CP23L

CP23L

12V cigarette lighter cable for use with rapid chargers

ICOM MB130

MB130

Vehicle charger bracket holds rapid charger and requires cigarette lighter cable

No Image Available

SS BC61

Mobile rapid charger with cigarette adapter for the F3161 & F3261 series

ICOM HS94

HS94

Earpiece headset
for VS/OPC2004/OPC2006/OPC1392

ICOM HS95

HS95

Headset with boom microphone
use with VS/OPC2004/OPC2006/OPC1392

ICOM HS97

HS97

Earphone with throat mic headset
use with VS/OPC2004/OPC2006/OPC1392

ICOM VS1MC

VS1MC

VOX/PTT case with 14-pin connector.
Must use with HS94/HS95/HS97.

ICOM VS4MC

VS4MC

Cable with heavy duty PTT swith with 14-pin connector.
Use with HS94/HS95/HS97.

No Image Available

HM-HD7I6WP

Large waterproof, high gain speaker microphone with 3.5mm accessory jack (14-pin connector)

No Image Available

HM184H

Waterproof speaker microphone with no accessory jack (14-pin)

No Image Available

HM184H UL

Waterproof speaker microphone, non-incendive approved with no accessory jack (14-pin)

No Image Available

IMPACT HD3-I6

Lightweight heavy duty use speaker microhpone with 3.5mm accessory jack (14-pin connector)

No Image Available

SP-AT1

Single pin listen only w/QD acoustic tube (9", 3.5mm L-shape)

ICOM AD118

AD118

14-pin ACC adapter to use with Hirose plug accessories

  • F3261DS 55 136-174MHz waterproof IDAS radio with GPS, no DTMF keypad
  • F3261DT 40 136-174MHz waterproof IDAS radio with GPS, full DTMF keypad
  • F3261DT NI 136-174MHz nonincendive rated waterproof IDAS radio, full DTMF keypad
  • F3261DT 35 RR Railroad specific version: 136-174MHz 512 channel, IDAS waterproof radio w/DTMF and GPS
  • F4261DS 65 400-470MHz waterproof IDAS radio with GPS, no DTMF keypad
  • F4261DT 55 400-470MHz waterproof IDAS radio with GPS, full DTMF keypad
  • F4261DS 90 450-512MHz waterproof IDAS radio with GPS, no DTMF keypad
  • F4261DT 85 450-512MHz waterproof IDAS radio with GPS, full DTMF keypad
  • F4261DT NI-1 400-470MHz nonincendive rated waterproof IDAS radio, full DTMF keypad
  • F4261DT NI-2 450-512MHz nonincendive rated waterproof IDAS radio, full DTMF keypad
