ICOM F3400D / F4400D

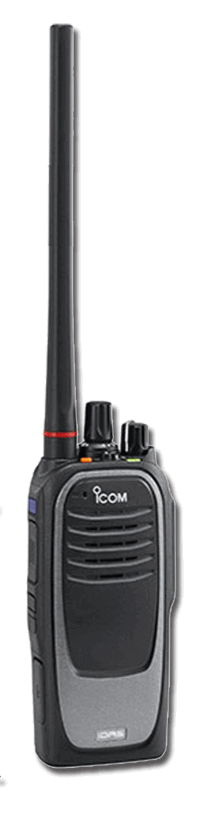

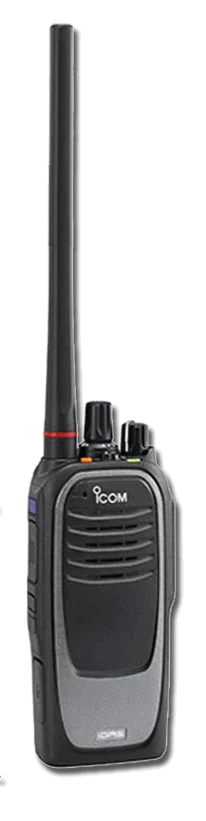

Icom F3400D

F3400D / F4400D

  • Description
  • Performance Characteristics
  • Physical Characteristics
  • User Environment

The F3400D Series radios is Icom's new flagship IDAS product. Dozens of new features and functions are included all in one new small form factor size. Features like SD Card, USB interface and Bluetooth appear for the first time in this land mobile product. A brilliant color display allows for easy observation of critical information, in the dimmest of light to the brightest of sunshine. Icom is the choice when you want to take your communications to the next level.

Frequency band:
VHF, UHF

Frequency range:
F3400DT/DS/D: 136–174MHz; F4400DT/DS/D: 380-470MHz, 450-512MHz

Power Output:
5W

Standard battery chemistry type:
Li-Ion

Battery life (based on a 5-5-90 duty cycle):
Up to 16.5 hours

Number of Channels/Groups/Zones:
F3400D: 32 Channels / 2 Zones
F3400DS/DT:1024 Channels / 128 Zones

Channel spacing:
25/15/12.5 kHz (Analog) 12.5/6.25 kHz (Digital)

Dimensions H x W x D (with standard battery)
53.6×123.5×29.3 mm; 2.11×4.86×1.15 in

Weight (without standard battery)
180 g; 6.4 oz

Keypad / Keys
IC-F3400D: None
IC-F3400DS: Limited
IC-F3400DT: Full

Display
IC-F3400D: None
IC-F3400DS, IC-F3400DT: High-resolution color LCD

Operating temperature
–30 °C to +60 °C; –22 °F to +140 °F

Mil spec
810-C, -D, -E, -F and -G

IP Standards
IP68

Intuitive User Interface
The high-resolution color LCD enhances the visibility both in nature and indoor lighting. Clearly labeled function and menu items make it easy to understand icons and characters. The night mode LCD setting is an alternative for use in night time or low lighting conditions. The glass is scratch resistant to protect from cracks and scratches.

Digital Voice Recorder
The F3400D Series can record incoming and outgoing communications, and replay recorded communications. Add a 32GB microSD card and record up to 500 hours. The recorded audio is saved in "wav" format and allows user to replay on the radio or a PC. Users can optionally overwrite first call in first call out, if the card is full. The recording captures timestamp and individual or group ID. Unit ID is captured on individual calls and group ID is captured on group calls. Users can also scroll to playback calls on the radio.

Safety Features
For emergency situations the F3400D Series includes an emergency button and five emergency functions: man down, motion detection, stationary detection, lone worker and power OFF emergency. The motion/stationary sensor sensitivity level is programmable in 10 levels for each function.

AquaQuake™
Popular in our marine radios, the AquaQuake draining function emits a vibrating buzz sound that clears water from the speaker grill to help maintain clear audio.

IDAS Features
The F3400D Series provides NXDN™ CAI-based IDAS digital model operation in IDAS conventional and multi-site conventional. The following IDAS features available:

  • Analog/digital conventional mixed mode operation
  • Upgrade to Type-D trunking
  • Status
  • Text message
  • Radio check
  • Stun, kill and revive
  • Call alert
  • Remote monitor
  • And much more

Additional Features

  • Hands-free communication with built-in Bluetooth®
  • Tile designed keypad increases durability and visibility
  • Transparent data modem can transmit data at 9600bps over the radio
  • Send up to 100 character text messages
  • Programmable alerts can vibrate when a specific user calls
  • Channel voice announcement
  • USB port to connect to a PC
  • Active Noise Canceling
  • Built-in 2-tone, 5-tone, CTCSS, DTCS & MDC1200 in analog
  • 14-pin ACC connector with BTL amplifier output
  • VOX (voice operated transmission) function
  • Tactical group function
  • Normal, priority and voting scan
  • Radio discovery tool software troubleshoots problems with radio communications and incident analysis
No Image Available

FAS67VC

136-174MHz Cut antenna - F3400/F7010/F9011

No Image Available

FAS76UC

380-520MHz Cut antenna for F4400/F9021

No Image Available

FAS81U

380-430MHz Antenna for F4400

No Image Available

FAS81US

400-450MHz Stubby antenna for F4400

No Image Available

FAS81V

136-150MHz Antenna for F3400/F7010/F9011

No Image Available

FAS81VS

136-150MHz Stubby antenna for F340

No Image Available

FAS82U

430-480MHz Antenna for F4400

No Image Available

FAS82US

450-490MHz Stubby antenna for F4400

No Image Available

FAS82V

148-162MHz Antenna

No Image Available

FAS82VS

148-162MHz Stubby antenna

No Image Available

FAS83U

470-520MHz Antenna for F4400

No Image Available

FAS83V

160-174MHz Antenna for F3400

No Image Available

FAS83VS

160-174MHz Stubby antenna for F3400

No Image Available

BP283

Battery Li-ion 7.4V 2010mAh
2010mAh (typical capacity), 1910mAh (minimum value)

No Image Available

BP284

Battery Li-ion 7.4V 3210mAh
3210mAh (typical capacity), 3070mAh (minimum value)

ICOM MB133

MB133

Alligator-type belt clip

ICOM MB136

MB136

Swivel belt clip for F1000/F3400/F7010/F52D/M85 series radios

ICOM MB96N

MB96N

Swivel belt hanger to use with standard belt clip

No Image Available

IAOPC1003

USB to micro-USB 3ft cable

ICOM OPC515L

OPC515L

DC power cable for single-unit rapid chargers

ICOM OPC656

OPC656

DC power cable for gang charger

ICOM LCF1034SW

LCF1034SW

Leather case for the F3400D radio with swivel belt loop and D-ring; no display cutout

No Image Available

LCF1035SW

Leather case for F3400DS & F7010S radios with swivel belt loop and D-ring; display cutout

ICOM LCF1036SW

LCF1036SW

Leather case for F3400DT & F7010T radios with swivel belt loop and D-ring; display & full keypad cutout

ICOM NCF1034C

NCF1034C

Nylon case for the F3400D radio with metal clip without display cutout

ICOM NCF1035C

NCF1035C

Nylon case for F3400DS/F7010S radios with metal clip with display cutout;

ICOM NCF1036C

NCF1036C

Nylon case for F3400DT/F7010T radios with metal clip with full keypad cutout;

No Image Available

BC123SA

AC adapter for rapid chargers
100-240V with US style plug

ICOM BC157S

BC157S

AC adapter for gang chargers
100-240V with US style plug

ICOM BC214

BC214-1

6-unit charger
(includes AC adapter with US plug)

ICOM BC219N

BC219N

Rapid charger for radios with the BP283/BP284
100-240V with a US style plug

ICOM BC225

BC225

Smart rapid charger
100-240V with a US style plug

ICOM CP23L

CP23L

12V cigarette lighter cable for use with rapid chargers

No Image Available

SS BC62

Mobile rapid charger with cigarette adapter for the F3400 & F7010 series

ICOM HS94

HS94

Earpiece headset
for VS/OPC2004/OPC2006/OPC1392

ICOM HS95

HS95

Headset with boom microphone
use with VS/OPC2004/OPC2006/OPC1392

ICOM HS97

HS97

Earphone with throat mic headset
use with VS/OPC2004/OPC2006/OPC1392

ICOM VS1MC

VS1MC

VOX/PTT case with 14-pin connector.
Must use with HS94/HS95/HS97.

ICOM VS4MC

VS4MC

Cable with heavy duty PTT swith with 14-pin connector.
Use with HS94/HS95/HS97.

ICOM AD118

AD118

14-pin ACC adapter to use with Hirose plug accessories

No Image Available

MSD CARD

32GB micro SD card

  • F3400D 21 136-174MHz IDAS portable with 32 channels and no display
  • F3400DS 11 136-174MHz IDAS portable with 1024 channels and a color display
  • F3400DT 01 136-174MHz IDAS portable with 1024 channels, a color display, and full DTMF keypad
  • F4400D 21 380-470MHz IDAS portable with 32 channels and no display
  • F4400DS 11 380-470MHz IDAS portable with 1024 channels, and a color display
  • F4400DT 01 380-470MHz IDAS portable with 1024 channels, a color display, and full DTMF keypad
  • F4400D 51 450-512MHz IDAS portable with 32 channels and no display
  • F4400DS 41 450-512MHz IDAS portable with 1024 channels and a color display
  • F4400DT 31 450-512MHz IDAS portable with 1024 channels, a color display, and full DTMF keypad
