F5011 / F6011

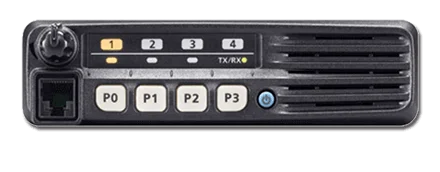

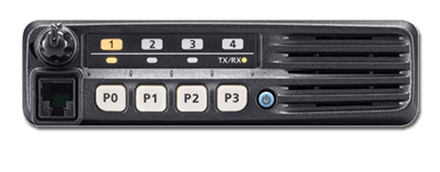

Icom F5011

F5011 / F6011

  • Description
  • Performance Characteristics
  • Physical Characteristics
  • User Environment

Simple Operation for Instant Communication
The IC-F5011 Series has 8 channels. The P0-P3 programmable buttons allow you to customize the radio to suit your needs and convenience.

Most Popular Signalings Built-in
Use the built-in 2-Tone, 5-Tone, MDC 1200, CTCSS and DTCS capabilities as standard to set up your own talk groups and quiet stand-by when others are talking.

Multiple 2-Tone, Multiple 5-Tone
Up to 10 2-Tone or eight 5-tone codes can be decoded on a channel. Features such as stun, kill, revive, answer back, auto TX, scan audio output are programmable to respond to each tone.

Frequency band:
VHF, UHF

Frequency range:
F5011: 136–174MHz
F6011: 400-470MHz, 450-512MHz

Power Output:
F5011: 50W
F6011: 45W

Number of Channels/Groups/Zones:
8 Channels

Channel spacing:
12.5/25 kHz, 15/30 kHz

Dimensions
150×40×167.5 mm
5.91× 1.57× 6.59 in

Weight
1.11kg; 2.4lb

Display

Operating temperature
–30°C to +60°C, –22°F to +140°F

Mil spec
810-C, -D, -E, -F

IP Standards

MDC 1200 Compatible
The IC-F5011 Series has a built-in MDC 1200 for transmitting a PTT ID and emergency * signal and for receiving radio check, stun and revive. Assimilate the radio easily into existing MDC 1200 systems.
(*No ACK transmission)

Enhanced Scan Features
The priority scan function allows you to monitor one or two priority channels while scanning other non-priority channels. The Tx channel and talk back functions allow you to make a quick response while scanning.

Remote Channel Control with Optional ACC Cable
The optional ACC cable allows you to connect with various external devices to control audio output, modulated signal input, remote channel control, horn honk and many more functions. OPC-1939 is a D-SUB 15-pin type and OPC-2078 is a D-SUB 25-pin type.

Built Military Rugged
The IC-F5011 Series is tested to MIL-STD 810 F specifications. The radio is built to survive harsh environment and keep working.

Other Features

  • 4W (typ.) front mounted speaker
  • Wide frequency coverage (136-174, 400-470 and 450-512MHz)
  • Wide/narrow channel spacing (25, 12.5kHz) programmable
  • Microphone hanger action programmable
  • Optional DTMF microphone
  • Optional voice scrambler unit, UT-109R or UT-110R
  • DTMF autodial and optional DTMF decoder, UT-108R
  • PC programmable
  • Talk around function
  • Power-on password function
  • Nuisance delete function
  • Time-out-timer, lock-out penatly timer
ANTENNA 1

ANTENNA 1

118-940MHz 1/4 wave antenna, unity gain, field tunable

No Image Available

ANTENNA 2

144-174MHz 3dB gain mountable antenna, CHR, 59" high

No Image Available

ANTENNA 3

450-470MHz 5dB gain mountable antenna, CHR, 40" high

No Image Available

ANTENNA 4

152-162MHz, unity gain antenna, NMO compatible, 21.6". Factory tuned to 157MHz

ICOM OPC1132

OPC1132

DC power cable (9.8ft) with 2-pin T connector.

ICOM OPC1939

OPC1939

D-Sub 15-pin ACC cable.
Connects with a PC, external speaker, external channel control, ignition sense line or vehicle horn

ICOM OPC2078

OPC2078

D-Sub 25-pin ACC cable.
Connects with a PC, external speaker, external channel control, ignition sense line or vehicle horn

No Image Available

OPC347

DC power cable (23ft)

ICOM HM148G

HM148G

Self grounding microphone for mobile radios

ICOM HM148T

HM148T

DMTF mobile microphone

ICOM HM152

HM152

Standard microphone for low/mid range mobile radios

ICOM HM152T

HM152T

DTMF modular microphone for LM mobile radios

ICOM HM211

HM211

Noise cancelling mobile hand microphone

ICOM SM26

SM26

Desktop microphone with monitor switch for mobile radios

ICOM F121 MMB

F121 MMB

Mounting bracket for F121/F221 F5011/F5021 Series radios

No Image Available

MOUNT 1

NMO Permanent Mount, 17ft RG58 cable, PL259 connector

No Image Available

MOUNT 2

Trunk Lid Mount/HD, BRKT, 45 DEG CBL, 58A/U PL259

No Image Available

MOUNT 3

Black Magnetic Mount
3 1/4" diameter, 12ft RG58 cable w/PL259 connector

No Image Available

Control Station Assemble

Install mobile into power supply and cabinet to make control station

No Image Available

ICT CS120-20AG/IC04

110V power supply and cabinet for control station use for F5011/5021/F5121/F5220

No Image Available

ICT IC09 220V

220V power supply and cabinet for control station use for F5061/6061

ICOM SP30

SP30

Large external speaker 20W

ICOM SP35

SP35

External speaker 5W with 3.5mm speaker jack and 2m cable

  • F5011 51 136-174MHz mobile
  • F6011 51 400-470MHz mobile
  • F6011 52 450-512MHz mobile
