F5021 / F6021

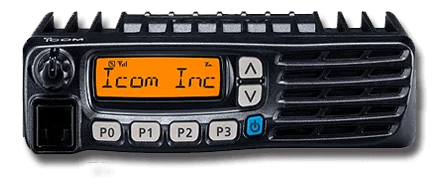

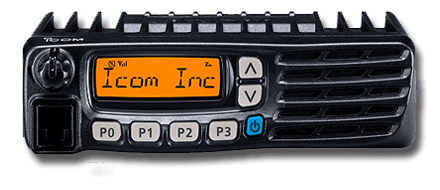

Icom F5021

F5021 / F6021

  • Description
  • Performance Characteristics
  • Physical Characteristics
  • User Environment

The F5021 Series is ideal for small-to-mid sized systems for public safety, large industry to light commercial users. The F5021 Series offers multiple signaling, advanced scanning, improved external channel control capability and wide frequency coverage packed in a compact body. This rugged mobile easily exceeds your expectations with its reliable performance and communication quality.

Frequency band:
VHF, UHF

Frequency range:
F5021: 136–174MHz
F6021: 440-470MHz, 450-512MHz

Power Output:
VHF: 50W
UHF: 45W

Number of Channels/Groups/Zones:
128 Channels/8 Zones

Channel spacing:
12.5/25 kHz

Dimensions
50/45W Version: 150 × 40 × 167.5 mm; 5.9 × 1.6 × 6.6 in
25W Version: 150 × 40 × 117.5 mm; 5.9 × 1.6 × 4.6 in

Weight
50/45W Version: 1.1 kg; 2.4 lb
25W Version: 0.8 kg; 1.8 lb

Display

Operating temperature
–30 °C to +60 °C; –22 °F to +140 °F

Mil spec
810-C, -D, -E, -F

IP Standards

Front Mounted Speaker
4 watts (typ.) Front-Mounted speakers deliver clear and loud audio. With the speaker facing the operator, audio can be clearly heard without impediment during operations.

MIL Grade Rugged Construction
The tough aluminum die-cast chassis and polycarbonate front panel have been tested to the MIL standard 810F. With this heavy-duty construction, the F5021 Series provides reliable operation over the long term in all manners of rugged environments.

Most Popular Signalings Built-in
Use the built-in 2-Tone, 5-Tone, CTCSS and DTCS capabilities as standard to set up your own talk groups, PTT ID and quiet stand-by when others are talking. The F5021 Series has added CTCSS/DTCS high speed decode and 2-Tone decode accuracy.

MDC 1200 Compatible
The following MDC features are available with the built-in MDC signaling.

  • PTT ID (TX/RX)
  • Radio check (RX)
  • Radio stun (RX)
  • Radio revive (RX)
  • Emergency TX/RX (No ACK)
  • 5 alias table (max.)

Multiple 2-Tone, Multiple 5-Tone
Multiple 2-Tone, Multiple 5-Tone Up to 10 2-Tone and eight 5-Tone codes can be decoded on a channel. When a matched tone is received, the following items are programmable for each code.

  • Beep sound
  • Answer back
  • Scan
  • Bell icon
  • Radio stun/kill/revive

Radio Kill, Stun and Revive
The radio kill/stun functions disable a lost or stolen radio over the air, eliminating security threats from undesired listeners. When the stun command is received, all functions will be temporarily locked out until the revive command is received or the unlock password is entered.

Lone Worker Function
When the radio is not operated for a present period, the radio sounds a beep and requires you to push any button. If the radio is still not operated for a specified wait period, an emergency signal automatically transmits and informs co-workers that something may have happened to the individual worker.

Mode Dependent Scan
In the mode dependent setting, the scanning setting is dependent on the operating channel. When you change the operating channel the scanning list automatically changes the list set for that channel. It is convenient when you move to a different operating area and change operating channel, you don't have to change the scanning setting.

Tx Channel Setting and Talk Back Function
The Tx channel setting allows you to program a transmission channel while scanning. Start channel, last detected channel, priority and preprogrammed channels are selectable. Prior to the Tx channel setting, the talk back function allows you to talk on the last detected channel, while scanning resumes after a preset time. The user can easily make a quick response with this function.

Optional Unit
The 5021 Series has a 40–pin option slot for adding an optional unit. Optional voice scrambler units, UT-109R or UT-110R provide secure private conversation. Optional DTMF decoder unit, UT-108R offers DTMF decode capability.

External memory Channel Control with Optional ACC Cable
External memory channel: With the optional OPC-1939 D-SUB 15-pin ACC cable, the F5021 Series can be programmed to control an operating channel from an external device (up to 16 preprogrammed channels). The ACC connector also provides an ignition-sensing function, external PTT, PC command, honk honk, audio output and modulated signal input depending on programming.

Other Features

  • Wide/narrow (25/12.5kHz) channel spacing
  • Embedded ESN
  • ±2.5ppm frequency stability
  • Microphone hanger action programmable
  • 8 DTMF autodial memories
  • Power-on password function
  • Nuisance delete function
  • Time-out-timer, lock-out penalty timer and more
ANTENNA 1

ANTENNA 1

118-940MHz 1/4 wave antenna, unity gain, field tunable

No Image Available

ANTENNA 2

144-174MHz 3dB gain mountable antenna, CHR, 59" high

No Image Available

ANTENNA 3

450-470MHz 5dB gain mountable antenna, CHR, 40" high

No Image Available

ANTENNA 4

152-162MHz, unity gain antenna, NMO compatible, 21.6". Factory tuned to 157MHz

ICOM OPC1132

OPC1132

DC power cable (9.8ft) with 2-pin T connector.

ICOM OPC1939

OPC1939

D-Sub 15-pin ACC cable.
Connects with a PC, external speaker, external channel control, ignition sense line or vehicle horn

ICOM OPC2078

OPC2078

D-Sub 25-pin ACC cable.
Connects with a PC, external speaker, external channel control, ignition sense line or vehicle horn

No Image Available

OPC347

DC power cable (23ft)

ICOM HM148G

HM148G

Self grounding microphone for mobile radios

ICOM HM148T

HM148T

DMTF mobile microphone

ICOM HM152

HM152

Standard microphone for low/mid range mobile radios

ICOM HM152T

HM152T

DTMF modular microphone for LM mobile radios

ICOM HM211

HM211

Noise cancelling mobile hand microphone

ICOM SM26

SM26

Desktop microphone with monitor switch for mobile radios

ICOM F121 MMB

F121 MMB

Mounting bracket for F121/F221 F5011/F5021 Series radios

No Image Available

MOUNT 1

NMO Permanent Mount, 17ft RG58 cable, PL259 connector

No Image Available

MOUNT 2

Trunk Lid Mount/HD, BRKT, 45 DEG CBL, 58A/U PL259

No Image Available

MOUNT 3

Black Magnetic Mount
3 1/4" diameter, 12ft RG58 cable w/PL259 connector

No Image Available

Control Station Assemble

Install mobile into power supply and cabinet to make control station

No Image Available

ICT CS120-20AG/IC04

110V power supply and cabinet for control station use for F5011/5021/F5121/F5220

No Image Available

ICT IC09 220V

220V power supply and cabinet for control station use for F5061/6061

ICOM SP30

SP30

Large external speaker 20W

ICOM SP35

SP35

External speaker 5W with 3.5mm speaker jack and 2m cable

  • F5021 51 136-174MHz mobile
  • F6021 51 400-470MHz mobile
  • F6021 52 450-512MHz mobile
