F5061D / F6061D

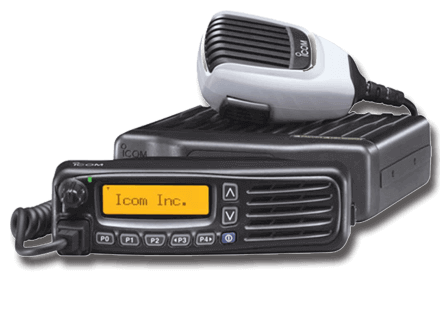

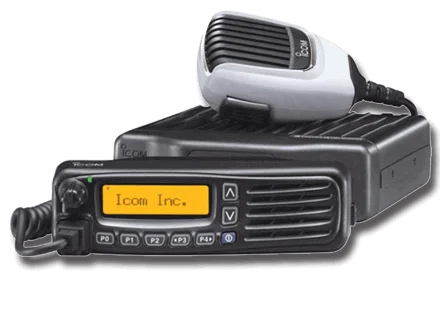

Icom F5061D

F5061D / F6061D

  • Description
  • Performance Characteristics
  • Physical Characteristics
  • User Environment

The IC-F5061/F6061 is ideal for public safety, transportation and delivery service users. It offers advanced multi-mode operations, improved scanning and flexible installation suitable for mobile and base stations.

Frequency band:
VHF, UHF

Frequency range:
F5061/F5061D: 136–174MHz
F6061/F6061D: 400-470MHz, 450-512MHz

Power Output:
F5061/F5061D: 50W
F6061/F6061D: 45W

Number of Channels/Groups/Zones:
16 or 128 Channels

Channel spacing:
12.5/25kHz, 15/30kHz, 6.25kHz* (*digital)

Dimensions W x H x D
160×45×150 mm; 6.3×1.77×5.91 in

Weight
1.3 kg; 2.9 lb

Display
Dot matrix, multi-function LCD

Operating temperature
–30°C to +60°C; –22°F to +140°F

Mil spec
810-C, -D, -E, -F.

IP Standards
IP54

IDAS™ Multi-Site Conventional Systems
Multi-site conventional systems are possible with IDAS LINQ. Choose from the following configurations: LINQREPEAT, LINQREPEAT+, LINQVOTE, and LINQVOTE+.

MultiTrunk™ Available

IDAS MultiTrunk opens the possibility of building a regional or multi-campus system of trunking repeaters.Basic LTR®/Conventional Mode Operation
Group, selective, and phone calls are all available in LTR® mode. The beep on receive function informs you with a beep sound when an individual call is received

Built-in Versatile Tone Signaling
Use the built-in CTCSS, DTCS, 2-Tone 5-Tone or MDC 1200 capability to set up your own talk groups, and have your radio standby quietly when other groups are talking. The built-in 2-Tone and 5-Tone capabilities allows you to send a tone code with your call and decode multiple tone codes on a channel. 40 pairs of CTCSS/ DTCS memory channels are available.

Advanced automatic number identification (ANI), selective call (Selcall) and emergency call features are available with the built-in MDC signaling. The PTT ID function sends your unit ID number when you push (or release) the PTT button. The received ID number can be decoded to a user name using the alias table. The selcall enables you to call individual or group users as you desire. The emergency call feature allows you to send and repeat an emergency message to dispatch until the dispatch responds to it. In such a situation, the radio can transmit anything the microphone hears and the dispatcher can monitor the background sound. Radio check, status, message, radio stun, revive and call log are also available.

Dot Matrix, Multi-Function LCD
With a high-contrast dot matrix display, upper and lower case characters can be easily distinguished. You can change the display setting to show one line and 12 characters, or two lines and 24 characters via programming. LCD backlighting is standard.

Voting Scan (Analog Mode Only)
The voting operation detects the signal strength level of repeater stations and automatically selects the strongest station or the first station to exceed the preset signal level. This is useful for roaming between 2 or more repeater sites.

GPS Option
GPS OptionIcom’s Quick Silver GPS connects right into the back of the F5061/F6061 Series mobile radios. There is no need to disassemble the radio in order to adopt an AVL feature.

The Quick Silver GPS has a very sensitive engine. It’s built around the SiRFStar III™ GPS receiver that is extremely sensitive to quickly fix on the satellite for quick location response.

Connect Quick Silver GPS to the radio’s DB-25 accessory connector, attach the supplied GPS antenna and clone the radio to accept GPS messages at the rear accessory connector. No hardware modifications are needed and the Quick Silver GPS does not require any calibration or programming. Installation can even be done without removing the radio from a vehicle if the rear accessory connector is accessible.

Enhanced Scanning
While scanning, you can program which Tx channel you want when you press PTT button. Start channel, last detected channel, priority or a preprogrammed channel are selectable. In addition, the nuisance delete function temporary removes a busy channel from the scanning list.

Other Features

  • Detachable front panel for flexible installation
  • IP54 dust-protection and splash resistant controller
  • Advanced scanning functions including Tx channel, talk back and nuisance delete
  • 8 DTMF autodial memories and ANI function with DTMF
  • Power on password
  • Radio stun and kill functions disable a lost or stolen unit over the air
  • Busy repeater lockout function
  • Surveillance function temporarily turns off the LED backlight and beep sound
  • Microphone hanger action programmable
  • Ignition sensing line
  • ±1ppm frequency stability
  • Embedded ESN
  • Flash CPU for future upgrade
  • Built-in inversion-type voice scrambler and optional UT-109R/UT-110R available
  • D-Sub accessory connector, ignition-sensing line and more
ANTENNA 1

ANTENNA 1

118-940MHz 1/4 wave antenna, unity gain, field tunable

No Image Available

ANTENNA 2

144-174MHz 3dB gain mountable antenna, CHR, 59" high

No Image Available

ANTENNA 3

450-470MHz 5dB gain mountable antenna, CHR, 40" high

No Image Available

ANTENNA 4

152-162MHz, unity gain antenna, NMO compatible, 21.6". Factory tuned to 157MHz

No Image Available

F5061 IGN SENSE CABLE

96" Cable with 3A fuse

ICOM OPC1132

OPC1132

DC power cable (9.8ft) with 2-pin T connector.

No Image Available

OPC347

DC power cable (23ft)

No Image Available

PW LF-1

Noise filter to use with the F5061D with the UT-IA100 already installed.

GPS

No Image Available

IA-10301

GPS receiver for IDAS mobiles that connects to the DB-25 accessory connector.

ICOM HM148G

HM148G

Self grounding microphone for mobile radios

ICOM HM148T

HM148T

DMTF mobile microphone

ICOM HM152

HM152

Standard microphone for low/mid range mobile radios

ICOM HM152T

HM152T

DTMF modular microphone for LM mobile radios

ICOM HM211

HM211

Noise cancelling mobile hand microphone

ICOM SM26

SM26

Desktop microphone with monitor switch for mobile radios

ICOM IA-10401

IA-10401

Split dispatch dongle

No Image Available

F5061 MMB

Mounting bracket for the F5061/F6061 radios

No Image Available

MOUNT 1

NMO Permanent Mount, 17ft RG58 cable, PL259 connector

No Image Available

MOUNT 2

Trunk Lid Mount/HD, BRKT, 45 DEG CBL, 58A/U PL259

No Image Available

MOUNT 3

Black Magnetic Mount
3 1/4" diameter, 12ft RG58 cable w/PL259 connector

No Image Available

Control Station Assemble

Install mobile into power supply and cabinet to make control station

No Image Available

ICT CS120-20AG/IC09

110V power supply and cabinet for control station use for F5061/6061

No Image Available

ICT IC09 220V

220V power supply and cabinet for control station use for F5061/6061

No Image Available

IAS BC-RHADPTR

Charger adapter 100-240V for use with the IAS OPC-RHUSB

No Image Available

IAS BC-RHCHG1

RedHawk microphone single-unit charger 100-240V

No Image Available

IAS BC-RHCHG12

RedHawk microphone 12-unit charger 100-240V

No Image Available

IAS BP-RHBATT1

RedHawk microphone 3.8V 1200mAh battery

No Image Available

IAS CP-RHLP

Cigarette lighter plug 12-24V requires 2 USB cables

No Image Available

IAS CS-RHSW

Utility software to upload stored tracks, optional PC programming, online demos.
One per customer needed.

No Image Available

IAS OPC-RHUSB

USB cable to connect mic with PC or charger adapter.
One comes with each microphone.

No Image Available

IAS REDHAWK

Speaker microhpone with GPS receiver.
LCD display shows basic orientation of all members within a group. Battery & USB cable included.
Cable that hooks from microphone to radio is required.

No Image Available

OPC607

3m/9.8ft Separation cable for remote mounting kits

ICOM OPC608

OPC608

8m/26.2ft Separation cable for remote mounting kits

ICOM OPC609

OPC609

1.9m/6.2ft Separation cable for remote mounting kits

No Image Available

OPC726

5m/16.4ft Separation cable for remote mounting kits

No Image Available

RMK3 01

F5061/6061 Bracket & face plate for remote mounting. Separation cable not included

ICOM SP30

SP30

Large external speaker 20W

ICOM SP35

SP35

External speaker 5W with 3.5mm speaker jack and 2m cable

  • F5061 136-174MHz analog mobile
  • F5061D 51 136-174MHz IDAS mobile
  • F5061D RR 136-174MHz IDAS radio, RR firmware installed, HM-148T included
  • F6061 41 400-470MHz analog mobile
  • F6061 46 450-512MHz analog mobile
  • F6061D 61 400-470MHz IDAS mobile
  • F6061D 66 450-512MHz IDAS mobile
