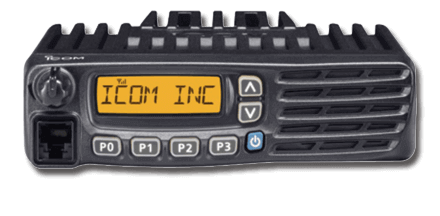

F5121D / F6121D

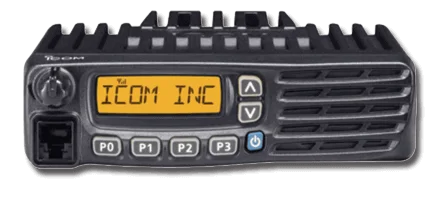

Icom F5121D

F5121D / F6121D

  • Description
  • Performance Characteristics
  • Physical Characteristics
  • User Environment

Everything You Expect in a Business Radio Plus Digital!

  • IDAS™ conventional and IDAS single-site trunking
  • Digital/Analog mixed mode operation
  • Built-in 2-Tone, 5-Tone, CTCSS and DTCS
  • MDC 1200 compatible
  • MIL-STD-810 F rugged construction
  • 4W (typ.) front mounted speaker

8–Character LCD
An 8–character alphanumeric LCD with user-friendly icons shows a variety of information and operating status, such as caller's name, received message, etc.

Frequency band:
VHF, UHF

Frequency range:
F5121D: 136–174MHz
F6121D: 400-470MHz, 450-512MHz

Power Output:
F5121D: 50W
F6121D: 45W

Number of Channels/Groups/Zones:
128 Channels / 8 Zones

Channel spacing:
6.25/15/30kHz, 6.25/12.5/25kHz

Dimensions w x H x D
150×40×167.5mm; 5.91×1.57×6.59in

Weight
1.1kg; 2.4lb

Display
8–character alphanumeric LCD

Operating temperature
–30°C to +60°C ; –22°F to +140°F

Mil spec
810-C, -D, -E, -F.

IP Standards

Built Military Rugged!
The tough aluminum die-cast chassis and polycarbonate front panel have been tested to the MIL standard 810 F.

Compact Hand Microphone
Select from 5 levels of mic grain, for clearer transmission.

Large Programmable Buttons
For easy access to often used functions, P0-P3 buttons are programmable to meet specific needs. Buttons and LCD display are backlit for night time operation.

GPS Receiver Connection
With optional D-SUB 25-pin ACC cable OPC-2078, an external GPS receiver or PC can be connected.

Powerful, Front-Facing Speaker
4 watts (typ.) front facing speaker delivers clear and loud audio throughout a vehicle's cabin. Digital modulation adds distinct clarity to received voices.

IDAS™ Digital Mode Operation
The IC-F5121D series provides NXDN™ CAI-based IDAS digital mode. It is also compatible with IDAS multi-site conventional and IDAS single-site trunking. The following IDAS features are programmable.

  • PTT ID
  • Status
  • Radio check
  • Call alert
  • Emergency (no ACK)
  • GPS data (PC and software required to show received position data)
  • Individual/Talkgroup list (Max 500)
  • RAN (Radio Access Number)
  • Stun/kill/revive (RX)
  • Remote monitor (RX)
  • Digital voice scrambler
  • SDM (Short Data Message)

Built-in 2-Tone and 5-Tone (Analog Mode)
2-Tone and 5-tone signalings give you selective calling, quiet stand-by and other convenient functions with programming. The stun/kill functions disable a radio over the air and the revive function restores the stunned radio.

Scan Features
The priority scan allows you to monitor one or two priority channels while scanning other non-priority channels. The transmit channel and talk back functions allow you to make a quick response while scanning.

MDC 1200 Compatible (Analog Mode)
The following MDC features are available with the built-in MDC signaling.

  • PTT ID
  • Radio check (RX)
  • Emergency (No ACK)
  • Stun/Revive (RX)
  • 500 alias table (Max.)

Lone Worker Function
When the radio is not operated for a preset period, a warning beep will sound, alerting the radio user to check in. If the radio user does not check in before the preset time runs out, then the radio automatically sends out an emergency signal.

The IC-F5121D: a multitude of advantages because it's IDAS

Advantage 1: Digital/analog Mixed Mode The IC-F52121D series can receive both analog mode and digital mode signals on a single channel and automatically selects the received mode to reply to the received call, while the talk back timer remains. It's a smart way to grow into digital radio – at your own pace, as your budget and comfort allow.

Advantage 2: Digital and Analog Individual/Group Call
The IC-F5121D series allows you to call individual or group users. The radio automatically sends own ID number when the PTT button is held down. The alias name or individual/group ID is displayed on the LCD while receiving a message allowing you to identify who is calling.

Advantage 3: Status Message and Short Data Message
Up to 100 status conditions can be set and sent with voice call. Also, you can request another IDAS radio to send their status and receive it. Up to 100-character of short data message can be sent and received. To send more than 9-character short data message, PC connection is required.

Advantage 4: GPS Capability
When used with an external GPS receiver, the IC-F5121D series can transmit accurate position data for use with vehicle management applications.

Advantage 5: Multi-Site Conventional Mode
When using the IC-F5121D series in IDAS multi-site conventional mode, the IC-F5121D can communicate with other IDAS radio users working with other repeater sites and/or virtual radio/PC dispatch stations on the IDAS network.

IDAS Single-Site Trunking
The IC-F5121D series can be used in an IDAS single-site trunking system. The IDAS trunking system is a distributed system with no dedicated control channel, so more voice traffic channels are available for increased system capacity.

*All advantages shown represent possible system configurations. Ask your Icom dealer to configure an IDAS system that works best for you. Note: Private IP Network or VPN Tunnels through the Internet with static endpoints.

Other Features

  • CTCSS/DTCS encode/decoder*
  • 8 DTMF autodial memories
  • Microphone hanger action programmable
  • Optional DTMF microphone (HM-152T)
  • PC programmable
  • Power-on password function
  • Time out timer
  • Talk around function
  • Nuisance delete function*
  • Forced narrow function*

* = analog only)

ANTENNA 1

ANTENNA 1

118-940MHz 1/4 wave antenna, unity gain, field tunable

No Image Available

ANTENNA 2

144-174MHz 3dB gain mountable antenna, CHR, 59" high

No Image Available

ANTENNA 3

450-470MHz 5dB gain mountable antenna, CHR, 40" high

No Image Available

ANTENNA 4

152-162MHz, unity gain antenna, NMO compatible, 21.6". Factory tuned to 157MHz

ICOM OPC1132

OPC1132

DC power cable (9.8ft) with 2-pin T connector.

ICOM OPC1939

OPC1939

D-Sub 15-pin ACC cable.
Connects with a PC, external speaker, external channel control, ignition sense line or vehicle horn

ICOM OPC2078

OPC2078

D-Sub 25-pin ACC cable.
Connects with a PC, external speaker, external channel control, ignition sense line or vehicle horn

No Image Available

OPC347

DC power cable (23ft)

GPS

No Image Available

IA-10301

GPS receiver for IDAS mobiles that connects to the DB-25 accessory connector.

ICOM HM148G

HM148G

Self grounding microphone for mobile radios

ICOM HM148T

HM148T

DMTF mobile microphone

ICOM HM152

HM152

Standard microphone for low/mid range mobile radios

ICOM HM152T

HM152T

DTMF modular microphone for LM mobile radios

ICOM HM211

HM211

Noise cancelling mobile hand microphone

ICOM SM26

SM26

Desktop microphone with monitor switch for mobile radios

ICOM F121 MMB

F121 MMB

Mounting bracket for F121/F221 F5011/F5021 Series radios

No Image Available

MOUNT 1

NMO Permanent Mount, 17ft RG58 cable, PL259 connector

No Image Available

MOUNT 2

Trunk Lid Mount/HD, BRKT, 45 DEG CBL, 58A/U PL259

No Image Available

MOUNT 3

Black Magnetic Mount
3 1/4" diameter, 12ft RG58 cable w/PL259 connector

No Image Available

Control Station Assemble

Install mobile into power supply and cabinet to make control station

No Image Available

ICT CS120-20AG/IC04

110V power supply and cabinet for control station use for F5011/5021/F5121/F5220

No Image Available

ICT IC09 220V

220V power supply and cabinet for control station use for F5061/6061

No Image Available

IAS BC-RHADPTR

Charger adapter 100-240V for use with the IAS OPC-RHUSB

No Image Available

IAS BC-RHCHG1

RedHawk microphone single-unit charger 100-240V

No Image Available

IAS BC-RHCHG12

RedHawk microphone 12-unit charger 100-240V

No Image Available

IAS BP-RHBATT1

RedHawk microphone 3.8V 1200mAh battery

No Image Available

IAS CP-RHLP

Cigarette lighter plug 12-24V requires 2 USB cables

No Image Available

IAS CS-RHSW

Utility software to upload stored tracks, optional PC programming, online demos.
One per customer needed.

No Image Available

IAS OPC-RHUSB

USB cable to connect mic with PC or charger adapter.
One comes with each microphone.

No Image Available

IAS REDHAWK

Speaker microhpone with GPS receiver.
LCD display shows basic orientation of all members within a group. Battery & USB cable included.
Cable that hooks from microphone to radio is required.

ICOM SP30

SP30

Large external speaker 20W

ICOM SP35

SP35

External speaker 5W with 3.5mm speaker jack and 2m cable

  • F5121D 136-174MHz IDAS mobile
  • F6121D 67 400-470MHz IDAS mobile
  • F6121D 68 450-512MHz IDAS mobile
