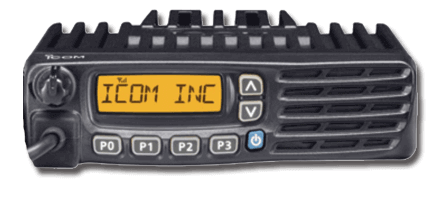

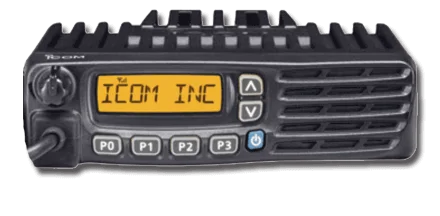

Icom F5220D

F5220D / F6220D

  • Description
  • Performance Characteristics
  • Physical Characteristics
  • User Environment

IDAS™ Digital Mode Operation
The IC-F5220D series provides NXDN™ CAI-based IDAS digital mode operation. It is compatible with IDAS multi-site conventional and IDAS multi-site and single-site trunking.

4W Front Mounted Speaker
4 watts* front facing speaker delivers clear and loud audio throughout a vehicle's cabin. In addition, the digital modulation provides distinct clarity even at the fringes of the communication range.
*Typical with internal speaker.

Channel Announcement
When you change the operating channel, the radio announces the channel number. Convenient for making radio adjustments without having to look at the radio.

Frequency band:
VHF, UHF

Frequency range:
F5220D: 136–174MHz
F6220D: 400-470MHz, 450-512MHz

Power Output:
F5220D: 50W,
F6220D: 45W

Number of Channels/Groups/Zones:
128 Channels / 8 Zones

Channel spacing:
15 / 12.5 / 6.25 kHz

Dimensions W x H x D
150×40×167.5mm; 5.91×1.57×6.59in

Weight (with standard battery)
1.1kg; 2.4lb

Display

Operating temperature
-30°C to +60°C; -22°F to +140°F

Mil spec
STD-810-C, -D, -E, -F

IP Standards

Roaming Scan
In the multi-site trunking mode, if the signal condition worsens as the radio user moves, the roaming scan automatically finds a new site to retain the communication link and quality.

Built Military Rugged
The tough aluminum die-cast chassis and polycarbonate front panel have been tested to the MIL-STD-810 environmental tests.

Optional Accessory Cable
F5220 accessory cableAn external GPS receiver, PC or other equipment can be connected with the optional OPC-2078 (D-sub 25-pin) or OPC-1939 (D-sub 15-pin). The ACC connector provides an ignition switch, external PTT, serial input/output, horn honk, channel control and public address functions, according to the programming.
*No digital modulation "IN" using accessory cables.

IDAS™ Digital Mode Features

  • Up to 500 individual and up to 500 group ID aliases (Each for single-site/multi-site/conventional)
  • PTT ID and ANI
  • SDM (Short Data Message)
  • RAN (Radio Access Number)
  • Digital voice scrambler
  • GPS data (PC and software required to show received position data)
  • Call alert
  • Radio check (RX)
  • Remote monitor (RX)
  • ATB (All Trunks Busy) ring back
  • Status
  • Stun/kill/revive (RX)
  • Emergency

*TX: Transmit, RX: Receive

Other Features

  • CTCSS/DTCS encode/decoder*
  • Microphone hanger action programmable
  • Talk around function
  • Forced narrow function*
  • Voting scan
  • Time-out-timer, lock-out penalty
  • 128 channels with 8 zones
  • Power-on password function
  • Nuisance delete function

(* = Analog only)

ANTENNA 1

ANTENNA 1

118-940MHz 1/4 wave antenna, unity gain, field tunable

No Image Available

ANTENNA 2

144-174MHz 3dB gain mountable antenna, CHR, 59" high

No Image Available

ANTENNA 3

450-470MHz 5dB gain mountable antenna, CHR, 40" high

No Image Available

ANTENNA 4

152-162MHz, unity gain antenna, NMO compatible, 21.6". Factory tuned to 157MHz

ICOM OPC1132

OPC1132

DC power cable (9.8ft) with 2-pin T connector.

ICOM OPC1939

OPC1939

D-Sub 15-pin ACC cable.
Connects with a PC, external speaker, external channel control, ignition sense line or vehicle horn

ICOM OPC2078

OPC2078

D-Sub 25-pin ACC cable.
Connects with a PC, external speaker, external channel control, ignition sense line or vehicle horn

GPS

No Image Available

IA-10301

GPS receiver for IDAS mobiles that connects to the DB-25 accessory connector.

ICOM HM148G

HM148G

Self grounding microphone for mobile radios

ICOM HM148T

HM148T

DMTF mobile microphone

ICOM HM152

HM152

Standard microphone for low/mid range mobile radios

ICOM HM152T

HM152T

DTMF modular microphone for LM mobile radios

ICOM HM211

HM211

Noise cancelling mobile hand microphone

ICOM SM26

SM26

Desktop microphone with monitor switch for mobile radios

ICOM F121 MMB

F121 MMB

Mounting bracket for F121/F221 F5011/F5021 Series radios

No Image Available

MOUNT 1

NMO Permanent Mount, 17ft RG58 cable, PL259 connector

No Image Available

MOUNT 2

Trunk Lid Mount/HD, BRKT, 45 DEG CBL, 58A/U PL259

No Image Available

MOUNT 3

Black Magnetic Mount
3 1/4" diameter, 12ft RG58 cable w/PL259 connector

No Image Available

Control Station Assemble

Install mobile into power supply and cabinet to make control station

No Image Available

ICT CS120-20AG/IC04

110V power supply and cabinet for control station use for F5011/5021/F5121/F5220

No Image Available

ICT IC09 220V

220V power supply and cabinet for control station use for F5061/6061

No Image Available

IAS BC-RHADPTR

Charger adapter 100-240V for use with the IAS OPC-RHUSB

No Image Available

IAS BC-RHCHG1

RedHawk microphone single-unit charger 100-240V

No Image Available

IAS BC-RHCHG12

RedHawk microphone 12-unit charger 100-240V

No Image Available

IAS BP-RHBATT1

RedHawk microphone 3.8V 1200mAh battery

No Image Available

IAS CP-RHLP

Cigarette lighter plug 12-24V requires 2 USB cables

No Image Available

IAS CS-RHSW

Utility software to upload stored tracks, optional PC programming, online demos.
One per customer needed.

No Image Available

IAS OPC-RHUSB

USB cable to connect mic with PC or charger adapter.
One comes with each microphone.

No Image Available

IAS REDHAWK

Speaker microhpone with GPS receiver.
LCD display shows basic orientation of all members within a group. Battery & USB cable included.
Cable that hooks from microphone to radio is required.

ICOM SP30

SP30

Large external speaker 20W

ICOM SP35

SP35

External speaker 5W with 3.5mm speaker jack and 2m cable

  • F5220D 136-174MHz IDAS mobile
  • F6220D 11 400-470MHz IDAS mobile
  • F6220D 21 450-512MHz IDAS mobile
