F5360D / F6360D

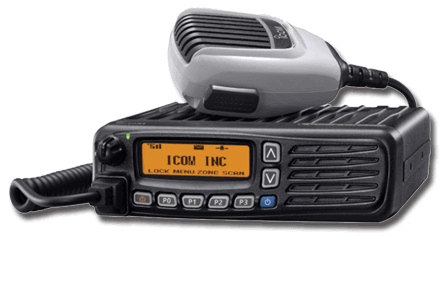

Icom F5360

F5360D / F6360D

  • Description
  • Performance Characteristics
  • Physical Characteristics
  • User Environment

Wide Area Coverage with NXDN™ Type-C Trunking

Type-C Trunking Compatible

The IC-F5360D series provides NXDN™ Type-C trunking and NXDN™ conventional systems.

  • Paging call
  • Broadcast call
  • All call
  • Group call
  • Individual call
  • Status call
  • Text message
  • Emergency call
  • Stun and Kill (RX)
  • Radio check (RX)
  • Over-the-air alias
  • GPS
  • 15-bit digital scrambler
  • RAN (Radio Access Number)
  • Digital/analog mixed mode operation (Conventional system)

Frequency band:
VHF, UHF

Frequency range:
F5360D: 136–174MHz
F6360D: 400–470MHz

Power Output:
F5360D: 50W
F6360D: 45W

Number of Channels/Groups/Zones:
512 Channels / 128 Zones

Channel spacing:

Dimensions W x H x D
160×45×150mm; 6.3×1.77×5.91in

Weight
1.3kg; 2.87lb

Display

Operating temperature
–30°C to +60°C ; –22°F to +140°F

Mil spec
810-C, -D, -E, -F, -G.

IP Standards

Menu-Driven User Interface
The menu-driven user interface provides easy and intuitive operation. The functions can be toggled with the left and right [P2] and [P3] buttons and allow you to perform various operations and settings.

Built-in GPS Receiver*
Your current position data can be attached to a voice or data (status or emergency signal) transmission and can be sent􀀁to dispatch stations.
*External GPS antenna required.

Transparent Data
When IC-F5360D series is connected to a PC or other external equipment, the transparent data function allows data communication in a digital mode. It can be used for remote telemetry system control or data applications.

D-Sub Accessory Connector
The IC-F5360D series has a D-Sub 15-pin ACC connector for connecting various external devices.

Other Features

  • MIL-STD 810 G rugged construction
  • 512 channels with 128 zones
  • CTCSS/DTCS/DTMF encoder/decoder*
  • MDC 1200 PTT ID transmission*
  • Audio compander*
  • Inversion voice scrambler*
  • 4W front mounted speaker

(* = Analog mode only)

Supplied Accessories

May vary depending on version.

  • Hand microphone (HM-148G)
  • DC power cable
  • Mounting bracket kit
  • Microphone hanger
ANTENNA 1

ANTENNA 1

118-940MHz 1/4 wave antenna, unity gain, field tunable

No Image Available

ANTENNA 2

144-174MHz 3dB gain mountable antenna, CHR, 59" high

No Image Available

ANTENNA 3

450-470MHz 5dB gain mountable antenna, CHR, 40" high

No Image Available

ANTENNA 4

152-162MHz, unity gain antenna, NMO compatible, 21.6". Factory tuned to 157MHz

ICOM OPC1132

OPC1132

DC power cable (9.8ft) with 2-pin T connector.

No Image Available

OPC347

DC power cable (23ft)

ICOM HM148G

HM148G

Self grounding microphone for mobile radios

ICOM HM148T

HM148T

DMTF mobile microphone

ICOM HM152

HM152

Standard microphone for low/mid range mobile radios

ICOM HM152T

HM152T

DTMF modular microphone for LM mobile radios

ICOM HM211

HM211

Noise cancelling mobile hand microphone

ICOM SM26

SM26

Desktop microphone with monitor switch for mobile radios

No Image Available

F5061 MMB

Mounting bracket for the F5061/F6061 radios

No Image Available

MOUNT 1

NMO Permanent Mount, 17ft RG58 cable, PL259 connector

No Image Available

MOUNT 2

Trunk Lid Mount/HD, BRKT, 45 DEG CBL, 58A/U PL259

No Image Available

MOUNT 3

Black Magnetic Mount
3 1/4" diameter, 12ft RG58 cable w/PL259 connector

No Image Available

Control Station Assemble

Install mobile into power supply and cabinet to make control station

No Image Available

ICT CS120-20AG/IC09

110V power supply and cabinet for control station use for F5061/6061

No Image Available

ICT IC09 220V

220V power supply and cabinet for control station use for F5061/6061

ICOM SP30

SP30

Large external speaker 20W

ICOM SP35

SP35

External speaker 5W with 3.5mm speaker jack and 2m cable

  • F5360D 01 136-174MHz, 50W, GPS, 512CH, type-C trunking
  • F6360D 01 400-470MHz, 45W, GPS, 512CH, type-C trunking
