F5400D / F6400D

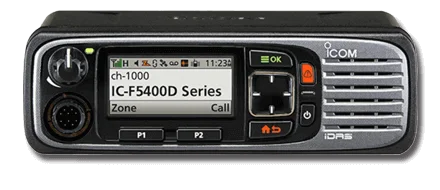

Icom F5400D

F5400D / F6400D

  • Description
  • Performance Characteristics
  • Physical Characteristics
  • User Environment

The F5400D Series radios is Icom's new flagship IDAS product. Dozens of new features and functions are included all in one new small form factor size. Features like SD Card, USB interface and Bluetooth appear for the first time in this land mobile product. A brilliant color display allows for easy observation of critical information, in the dimmest of light to the brightest of sunshine. Icom is the choice when you want to take your communications to the next level.

Digital Conventional: IDAS built-in
Digital Trunking: Upgrade available
LTR®: Built-in
GPS: Built-in

Frequency band:
VHF, UHF

Frequency range:
F5400D/DS: 136–174MHz
F6400D/DS: 380-470MHz, 450-512MHz

Power Output:
50 W/45 W (VHF/UHF)

Number of Channels/Groups/Zones:
1024 Channels

Channel spacing:
15/12.5 kHz*2 (Analog), 12.5/6.25 kHz (Digital)

Dimensions W x H x D
174×55×150 mm; 6.85×2.17×5.91 in

Weight
1.5 kg; 3.3 lb

Display
High-resolution color LCD, scratch resistant glass

Operating temperature
–30°C to +60°C; –22°F to +140°F

Mil spec
810-C, -D, -E, -F, -G

IP Standards
IP55

Intuitive User Interface
The high-resolution color LCD enhances the visibility both in nature and indoor lighting. Clearly labeled function and menu items make it easy to understand icons and characters. The night mode LCD setting is an alternative for use in night time or low lighting conditions. The glass is scratch resistant to protect from cracks and scratches.

Multiple Controller Configurations
The F5400D/F6400D allows the user to configure the radio three ways to suit almost any application or installation requirement. The intercom function is available between controllers and/or COMMANDMIC.

The new COMMANDMIC is an identical physical layout and user interface as the F3400D. By installing in into a vehicle it allows a secondary remote control of the F5400D.

IDAS Features
The F5400D Series provides NXDN™ CAI-based IDAS digital model operation in IDAS conventional and multi-site conventional. The following IDAS features available:

  • Analog/digital conventional mixed mode operation
  • Upgrade to Type-D trunking
  • Status
  • Text message
  • Radio check
  • Stun, kill and revive
  • Call alert
  • Remote monitor
  • And much more

Additional Features

  • Hands-free communication with built-in Bluetooth®
  • Safety features: emergency button, lone worker function, and power OFF emergency function
  • Transparent data modem can transmit data at 9600bps over the radio
  • Send up to 100 character text messages
  • Programmable alerts can vibrate when a specific user calls
  • Channel voice announcement
  • USB port to connect to a PC
  • Active Noise Canceling
  • Built-in 2-tone, 5-tone, CTCSS, DTCS & MDC1200 in analog
  • D-SUB 25-pin ACC connector with programmable functions
  • Built-in 20W audio amplifier for connecting with external public address systems
  • Tactical group function
  • Normal, priority and voting scan
ICOM UX241

UX241

GPS antenna

ICOM IAOPC054

IAOPC054

Cable to wire the F5400/F6400 to an external speaker

No Image Available

IAOPC1003

USB to micro-USB 3ft cable

No Image Available

HM220

Heavy duty microphone (IP54) for the F5400 series

No Image Available

HM220T

Heavy duty microphone with DTMF keypad (IP54) for the F5400 series

No Image Available

HM221

Microphone (IP55) for the F5400 series

No Image Available

HM221T

Microphone with DTMF keypad (IP55) for the F5400 series

ICOM SM29

SM29

Desktop microphone for F5400 series

No Image Available

MSD CARD

32GB micro SD card

No Image Available

Control Station Assemble

Install mobile into power supply and cabinet to make control station

No Image Available

IAPS12

Power supply with cover for control station
(120VAC; 12A)

ICOM HM218

HM218

Secondary remote control microphone, COMMANDMIC, for the F5400D/F6400D.
Requires RMK5 + OPC2373 or OPC2374.

ICOM OPC2364

OPC2364

1.9m/6.2ft Separation cable for RMK5/RMK7

No Image Available

OPC2365

3m/9.8ft Separation cable for RMK5/RMK7

No Image Available

OPC2366

5m/16.4ft Separation cable for RMK5/RMK7

No Image Available

OPC2367

8m/26.2ft Separation cable for RMK5/RMK7

ICOM OPC2373

OPC2373

1.9m/6.2ft Separation cable for HM218

ICOM OPC2374

OPC2374

8m/26.2ft Separation cable for HM218

ICOM RMK5

RMK5

Bracket & face plate for remote mounting for the F5400D/F6400D.
Separation cable not included.

ICOM RMK7

RMK7

Dual head and separation kit for the F5400D/F6400D.
Separation cables & microphone not included.

ICOM SP30

SP30

Large external speaker 20W

  • F5400DS 11 136-174MHz IDAS mobile with numerical display
  • F5400D 01 136-174MHz IDAS mobile with color display
  • F6400DS 11 380-470MHz IDAS mobile with numeric display
  • F6400D 01 380-470MHz IDAS mobile with color display
  • F6400DS 31 450-512MHz IDAS mobile with numerical display
  • F6400D 21 450-512MHz IDAS mobile with color display
