FR5200H / FR6200H

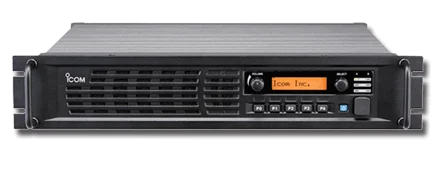

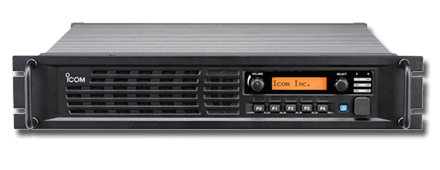

Icom FR5200

FR5200H / FR6200H

  • Description
  • Performance Characteristics
  • Physical Characteristics
  • User Environment

50W Full Duty Cycle Digital Repeater

50W 100% Duty Cycle Operation
Employing a high performance power amplifier, together with the solid heatsink built into the chassis, the FR5200H series provides a reliable 100% duty cycle operation at 50W output.

IDAS, Analog FM and Mixed Mode
The FR5200H series is compatible with both analog FM mode and IDAS conventional and NXDN™ Type-D trunking mode. Program digital and/or analog FM modes per channel. The mixed mode operation allows you to receive both analog FM and IDAS conventional modes and to transmit either mode depending on the received signal.

32 Channel Capacity and 5 Programmable Buttons
The 12-digit dot-matrix display, 5 programmable buttons, 32 memory channels and internal speaker allow you to use the repeater as a simple base station or to check repeater activity. LEDs on the front panel show channel conditions.

D-SUB 25-Pin Accessory Connector
The FR5200H series has a programmable D-SUB 25-pin accessory connector for connecting external remote control devices. Also, modulation/demodulation signals can be input/output from the D-SUB connector.

Multiple CTCSS, DTCS Tone and RAN Code Cecode
The FR5200H series decodes multiple CTCSS and DTCS as well as digital RAN (Radio Access Number) codes on a per channel basis (up to 16 tones/codes) and downlinks the received signal with a specified tone/ code. This function is useful for sharing a channel with multiple groups.

Frequency band:
VHF, UHF

Frequency range:
FR5200H: 136-174 MHz
FR6200H: 400–470, 450–512MHz

Power Output:
50 W (adjustable to 5 W)

Number of Channels/Groups/Zones:
32 Channels

Channel spacing:
FR5200H: 6.25/12.5kHz
FR6200H: 6.25/12.5/25 kHz

Dimensions W x H x D
19.02 × 3.46 × 14.17 in

Weight
22lb

Keypad / Keys
5 Programmable Buttons

Display
12-Digit Dot-Matrix Display

Operating temperature
-22 F to 140 F (-30 C to +60 C)

Mil spec
810 G

IP Standards
NA

Other Features

  • CW ID transmission
  • ±0.5ppm high frequency stability (Digital mode)
  • 2U low profile for 19-inch rack mount
  • Digital voice scrambler provides 15-bit key (about 32,000 codes)
  • Built-in inversion voice scrambler (Analog mode)
  • Built-in audio compander (Analog mode)
  • PTT priority setting (Local Mic., external PTT or repeater operation)
  • 5-Tone and DTMF encoder/decoder (Analog mode)
  • Normal and priority scan
  • Convenient key assign stickers supplied
  • Beat cancel capability
  • Low voltage alert (Analog mode)

No Accessories List at present

Please Contact Us for more information

  • FR5200H 51 136-174MHz 50W analog, IDAS repeater 100% duty cycle
  • FR6200H 51 400-470MHz 50W analog, IDAS repeater 100% duty cycle
  • FR6200H 61 450-512MHz 50W analog, IDAS repeater 100% duty cycle
