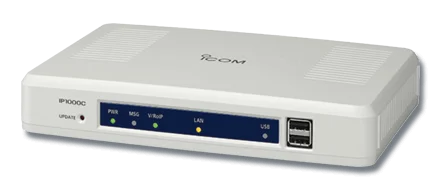

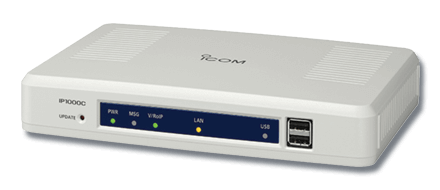

Icom IP1000C


  • Description

The IP1000C is Icom’s wireless network system and keeps track of the radios in your network. IP1000C can also communicate with third-party manufacturers' WLAN access points allowing for flexibility. It easily installs with existing IP1000C or new wireless networks.

  • Manages up to 100 IP100H/IP100FS devices in a single network
  • Up to 11 IP1000C can be interconnected to increase total number of IP100 radios on a network
  • Can be used in all standard wireless networks
  • Easy to install
  • Manages individual, group, or all-area calls
  • DHCP capable
  • Supports simplex or full duplex
  • Supports wired equivalent privacy (WEP) and Wi-Fi protected access (WPA) encryption algorithms

Full-Duplex Communication That Works Over a Wireless LAN and IP Networks*

  • Easy system to set up and use
  • Up to 100 users can communicate at the same time
  • Encryption provides extra security
  • Range is only restricted by your IP network coverage
  • No license fee required, no call charges


Power supply
100-240V AC (with supplied AC adaptor)

Temperature 0° to +40°

Dimensions (bxhxd)
9 9/64 x 6 39/64 x 1 1/2 in

26.455 oz

RJ-45 connection x 4
1000 BASE-T/100BASE-TX/10BASE-T,br /> (AUTO MDI/MDI-X)

Standard A x 2

Service connection
RS-232C (RJ-11) connection

All stated specifications are subject to change without notice or obligation.
