IP100H

Icom IP100

IP100H

  • Description
  • Performance Characteristics
  • Physical Characteristics
  • User Environment

License-Free Radio for Wireless Networks (WLAN)

Icom's IP Advanced Radio System for wireless networks products bridges the gap between license-free and licensed radio devices. The system is easy to connect to an existing wireless network and allows full duplex communication with reliable sound quality. Icom’s new WLAN-based radio system offers scalable, license-free communication that uses standardized wireless network products as infrastructure.

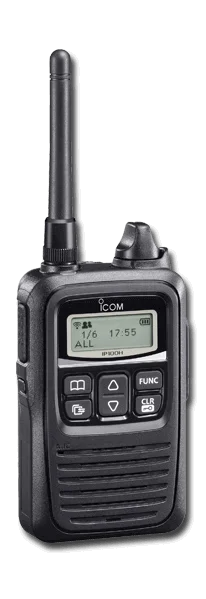

Icom’s IP100H WLAN or IP radio is the smallest professional radio on the market. The IP100H is a wireless network radio that can move freely within the network.

  • IPX7 waterproof (1m depth water for 30 minutes) for outdoor work or places prone to get wet.
  • Compact 2.28 × 3.74 × 1.04 in body and 7.2oz (approximate) lightweight.
  • Vibration alert function for incoming calls.

Full-Duplex Communication That Works Over a Wireless LAN and IP Networks*

  • Easy system to set up and use
  • Up to 100 users can communicate at the same time
  • Encryption provides extra security
  • Range is only restricted by your IP network coverage
  • No license fee required, no call charges

Frequency band:
IEEE 802.11 a/b/g/n Standard

Frequency range:
2412-2472 MHz (13 channels)
5180-5700MHz (19 channels)

Power Output:
10mW

Standard battery chemistry type:
Lithium Ion

Battery life (based on a 5-5-90 duty cycle):
Up to 27 hours

Number of Channels/Groups/Zones:
N/A

Channel spacing:
N/A

Dimensions W x H x D (with standard battery)
2.28 × 3.74 × 1.04 in

Weight (with standard battery)
7.2 ounces

Keypad / Keys
Limited

Display
Full

Operating temperature
NA

Mil spec
NA

IP Standards
NA

Other Features

  • Internal/external antenna
  • Built-in vibrator for incoming calls
  • VOX capable with appropriate headset
  • Up to 27 hours with standard BP-271
  • Supports full duplex with headset connected, which allows many users in the system to transmit simultaneously.
  • Reliable sound quality
  • Sends status to the IP1000C and IP100FS
  • Provides a diagnostics mode to check:
  • TX & RX Mbps
  • Downlink signal strength
  • Mac address of the AP is using
  • SSID of the AP is logged on 12 characters
  • Channel the AP utilizes

Versatility

The IP100H is ideal for use in many settings, including:

  • Warehouses
  • Restaurants/Cafés
  • Hotels/Museums
  • Shopping Malls/Department Stores
  • Security/Guards
  • Hospitals/Care

No Accessories List at present

Please Contact Us for more information
