IP730D

Icom IP730D

IP730D

  • Description
  • Performance Characteristics
  • Physical Characteristics
  • User Environment

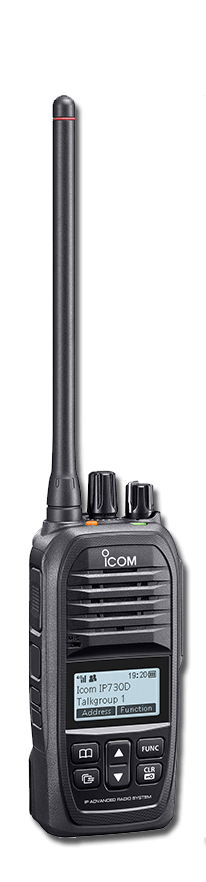

Icom’s IP730D is a revolutionary hybrid radio. With dual PTT buttons, the IP730D transmits and receives LTE, IDAS and analog networks to create nationwide coverage. The IP730D offers flexibility and assurance. Wherever coverage is needed, the IP730D is ready.

Dual Mode
The IP730D series can receive both communications from an LTE radio group and IDAS™ (or analog) group at a time (audio mixed). You can press either the main PTT for LTE or the sub-PTT button for IDAS™ or analog channel to answer in accordance with pre-programming. If necessary, you can press the main and sub-PTT buttons to address two groups at the same time.

Bridge Function
The Bridge function relays received IDAS™ digital audio to the LTE radio group, while transferring the LTE radio conversations to the IDAS™ group. This function is useful when communicating outside of the LTE service coverage area with an IDAS™ radio, or temporary cross band connection between two IDAS™ radio groups using different frequencies or channels. (Not available in Analog mode).

Innovative LTE Radios with Licensed Professional Radio Mode for Increased Capacity and Coverage

LTE Mode

LTE mode provides secure private push-to-talk communication over an LTE (4G) and 3G network*. The LTE communication range of the ID730D is limited only by the cellular service area. Experience the benefit of timely information transmission without worrying about restrictions on call distance or dead zones. * Network coverage provided by a custom SIM card. Service availability depends on the country.

IDAS™ Digital Mode
IDAS™ digital mode is a conventional VHF/UHF radio mode using licensed professional radio channels. It also provides Individual, Group and All calls with PTT operation. When operating in remote, mountainous areas, LTE (4G)/3G networks may not be available. Conventional VHF/UHF communications provide a stable, local alternative.

  • Sub PTT Button for Dual Mode Operation
  • Full-Duplex Communication in LTE Mode
  • 1500 mW Powerful Audio
  • Built-in Bluetooth® Technology
  • GPS Data Transmission Capability
  • IP67 Waterproof and Dust-Tight Specification
  • Emergency Call Features
  • Digital Voice Recording/Playback

RoIP Gateway to Link to Other Systems
With the VE-PG4 RoIP gateway, the IP730D series can interconnect with an IP phone and various radio systems including WLAN radio, satellite PTT, LTE, IDAS™ and analog radios.

Frequency band:VHF, UHF

Frequency range:
IC-IP730D: 136–174MHz
IC-IP740D: 350–470MHz, 400–520MHz

Power Output:
5 W, 2 W, 1 W

Number of Channels/Groups/Zones:
128 Channels/ 8 Zones

Standard battery chemistry type:
Lithium Ion
BP-303 Battery life (based on a 5-5-90 duty cycle):
Up to 24 hours LTE

Dimensions W x H x D (with BP-303 standard battery)
5.5 × 2.4 × 1.7 in

Weight ((with BP-303 standard battery))
11.3 oz

Keypad / Keys
3 programmable keys

Operating temperature
–22 °F to +140 °F (–30 °C to +60 °C)

Mil spec
810G

IP Standards
IP67

Other Features

  • 136 – 174, 350 – 470, 400 – 520 MHz versions
  • 128 Channels/8 Zones
  • Rotary encoder with channel announcement function
  • DTMF code transmission with optional DTMF microphone, HM-245T
  • Vibration alert function
  • Surveillance function
  • AquaQuake™ function prevents audio degradation from a water-logged speaker

IDAS™ Operating Mode

  • NXDN™ conventional
  • NXDN™ multi-site conventional over IP network
  • IDAS™ digital simulcast

IDAS™ Digital Functions

  • Over-the-Air Programming (OTAP) function updates the radio configuration over the LTE
  • Over-the-Air Alias (OAA)*1 displays the caller’s name without programming
  • Up to 500 ID numbers for IDAS™ mode can be saved in the Call List to show the alias name
  • Individual, Group and All calls
  • Digital voice scrambler (15-bit encryption)
  • Talk back

Analog Functions

  • CTCSS and DTCS
  • 12.5 kHz channel spacing
ICOM FASC25U

FASC25U

400-430MHz Antenna for LM portables

ICOM FASC25V

FASC25V

136-150MHz Antenna for LM portables

ICOM FASC26US

FASC26US

400-450MHz Stubby antenna for LM portables

ICOM FASC26VS

FASC26VS

136-144MHz Stubby antenna for LM portables

ICOM FASC27VS

FASC27VS

142-150MHz Stubby antenna for LM portables

ICOM FASC28V

FASC28V

142-162MHz Antenna for LM portables

ICOM FASC29V

FASC29V

160-174MHz Antenna for LM portables

No Image Available

FASC55V

146-174MHz Standard antenna for LM portables

ICOM FASC56VS

FASC56VS

150-160MHz Stubby antenna for LM portables

ICOM FASC57U

FASC57U

430-470MHz Standard antenna for LM radios (red ring)

ICOM FASC57VS

FASC57VS

160-174MHz Stubby antenna for LM portables

No Image Available

FASC61UC

380-520MHz Cut antenna for the specific frequency desired

No Image Available

FASC61VC

136-174MHz Cut antenna for the specific frequency desired

No Image Available

FASC62V

150-160MHz High gain antenna for LM portables (10")

No Image Available

FASC63V

155-165MHz High gain antenna for LM portables (9.5")

ICOM FASC72U

FASC72U

470-512MHz Antenna for LM portables

ICOM FASC73US

FASC73US

450-470MHz Stubby antenna for LM portable radios

ICOM FASC01U

FASC01U

350-400MHz Antenna

ICOM FASC02U

FASC02U

330-380MHz Antenna

ICOM FASC03U

FASC03U

380-430MHz Antenna

ICOM BP303

BP303

Li-ion battery pack 3280 mAh (min.) 3350 mAh (typ.)

ICOM BP305

BP305

Battery case LR6 (AA) x 5 Cells

ICOM MB133

MB133

Alligator-type belt clip

ICOM MB136

MB136

Belt clip (Swivel type)

ICOM MB96N

MB96N

Belt hanger (Swivel type)

ICOM MB96FL

MB96FL

Belt hanger (Long type)

ICOM MB96F

MB96F

Belt hanger (Fixed type)

ICOM OPC515L

OPC515L

DC power cable (For use with BC-227)

ICOM CP23L

CP23L

12V cigarette lighter cable for use with rapid chargers

ICOM LC195

LC195

Carrying case (Charging is possible while the case is attached)

ICOM 57L

MB-57L

Shoulder strap (Use with the LC-195)

No Image Available

BC123S

AC adapter for single unit chargers
100-240V with US style plug

ICOM BC226

BC226

Multi-connectable rapid charger

ICOM BC228

BC228

AC adapter (Required for multiple connections)

ICOM BC227

BC227

(AC adapter BC-123S supplied)

ICOM VS-3

VS-3

Bluetooth Headset

No Image Available

HM-245T

DTMF microphone with sub PTT button

ICOM HM-222H

HM-222H

High-power speaker

ICOM AD-135

AD-135

Earphone jack adapter

ICOM SP-27

SP-27

Tube earphone

ICOM SP-29

SP-29

Earhook Earphone

ICOM SP-40

SP-40

Earphone

ICOM HM-184H

HM-184H

High-power speaker type

ICOM HM-236

HM-236

Compact type

No Image Available

HS-94

Earhook type Headset

No Image Available

HS-95

Neck-arm type Headset

No Image Available

HS-97

Headset with throat microphone

No Image Available

VS-5MC

PTT switch cable for manual PTT, and VOX operation BLUETOOTH® HEADSET
