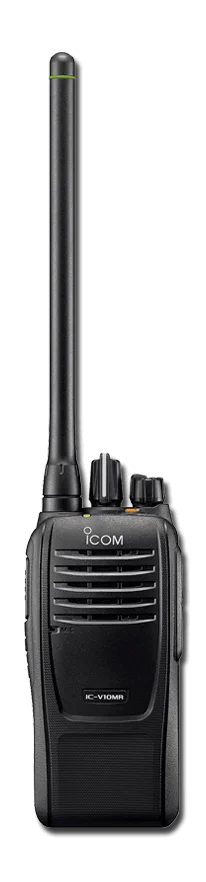

ICOM V10MR
V10MR
- Description
- Performance Characteristics
- Physical Characteristics
- User Environment
The V10MR is a professional-grade, license-free radio is ready for any kind of operation. Take advantage of the large communication range*: up to 250,000 square feet in buildings, 20 floors, and up to two miles in a traditional worksite. The long battery life can last up to 14 hours. This radio is suited for service, education, health, tourism, personal use, and more!
This unit is great for any mobile application and it’s available in a base station. Both are built to mil spec for superb reliability!
Frequency range:
151.820, 151.880, 151.940, 154.570, 154.600 MHz
Power Output:
2 W
Number of Channels/Groups/Zones:
16 Channels
Channel spacing:
12.5/25kHz
Dimensions W x H x D
2.1 x 4.4 x 1.0 (in), 52.2 x 111.8 x 24.5 (mm)
Weight (main unit)
8.5 oz, 240g
Display
None
Operating temperature
–22˚F to +140˚F (–30˚C to +60˚C)
Mil spec
Mil spec
-810-C, -D, -E, -F and -G
IP Standards
IP67
Built-tough
The V10MR is built to exceed military standards specifications (MIL-SPEC). It passed multiple drop tests from 1.5m on six kinds of surfaces to ensure durability during operation. With a strong waterproof rating, use the V10MR in rainstorms. You can also rinse out the radio from any dirt and debris.
Emergency Ready
Come prepared to alert your team with several of the built-in emergency call functions. When pressed, the orange button automatically sends out an emergency call to other radios. Other functions include Lone Worker, Man Down, and Motion Detection.
- Lone Worker: When a user does not respond back for a certain period of time.
- Man Down: When a user has fallen and the radio remains horizontal.
- Motion Detection: When the radio detects sudden or strenuous movements.
Other Features
- 1500 mW loud speaker
- VOX function for hands-free operation
 | FASC28V 142-162MHz Antenna for LM portables |
 | BP279 Battery Li-ion 7.2V 1485mAh battery |
 | MB133 Alligator-type belt clip |
 | OPC656 DC power cable for gang charger |
 | BC157S AC adapter for gang chargers |
 | BC213 Rapid charger with a US plug for radios with the BP279/BP280 battery |
 | BC214 6-unit charger with US plug AC adapter and cups installed |
 | BC242 AC Adapter for BC-213 |
 | CP23L 12V cigarette lighter cable for use with rapid chargers |
 | MB130 Vehicle charger bracket holds rapid charger and requires cigarette lighter cable |
 | HS94 Earpiece headset |
 | HS94LWP Earhook headset with boom microphone with screw down connector (2-pin) for hands-free operation. |
 | HS95 Headset with boom microphone |
 | HS95LWP Behind-the-head type with boom microphone with 2-pin screw down connector |
 | HS97 Earphone with throat mic headset |
| OPC2004LA VOX conversion cable to to use the HS-97 |
| VS4LA PTT switch cable to communicate using the HS94/95/97 |
 | HM158LA Compact speaker microphone with revolving clip and earphone jack |
 | HM159LA Large speaker microphone with earphone jack and metal alligator clip |
| HM168LWP Waterproof speaker microphone |
| HM153LA Covert durable microphone with earphone combination |
| HM166LA Earphone microphone |
