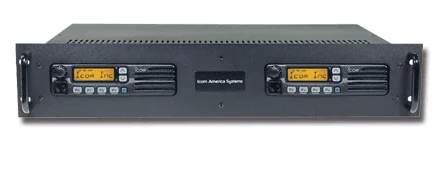

ICOM X-Band 50

Icom X Band 50

X-Band 50

  • Description
  • Performance Characteristics
  • Physical Characteristics
  • User Environment

Crossband Communications

Connecting VHF to UHF, UHF to UHF, and VHF to VHF, the X-Band 50 provides full UHF and VHF interoperability. This crossband provides an interoperable solution that provides over-the-air programming (OTAP). The X-Band 50 is compact in size, easy to use, and operates as a control station without the need of a network. Inter-agency communications just got easier!

Main Features:

  • Local controlled operation; set on a desktop and use as a dual base unit with an optional microphone
  • Alpha tag your channels with the 8-Character alphanumeric display
  • Configured to auto switch from AC to DC; AC to DC auto select, 220/110/12V capable
  • Easily mounts into a 19" rack frame

Frequency band:

Frequency range:
VHF: 136-174 MHz;
UHF: 400-470MHz, 450-512MHz

Power Output:
50W (VHF) / 45W (UHF)

Number of Channels/Groups/Zones:
128 channels/8 Zones

Channel spacing:
12.5/25kHz, 15/30kHz

Dimensions W x H x D
19" × 5" × 15.5"

19 lbs

Keypad / Keys


Operating temperature
-22 F to 140 F (-30 C to +60 C)

Mil spec
810 C, 810 D, 810 E, 810 F

IP Standards

Advanced Multi 2-Tone/5-Tone Systems

  • Programmable actions when a matched tone is received
  • Bell icon indication ON/OFF/blink
  • Answer back calls
  • Beep sounds
  • Scan start/stop
  • Auto transmission
  • Stun/kill functions (prevents use of a lost or stolen radio)
  • 32 Tx and 9 Rx 5-Tone codes available
  • 11 Tx and Rx 2-Tone codes available

Other Features

  • 10 scanning lists and normal/priority scan
  • Power ON password
  • Backlit LCD and keys for night time operations
  • Meets MIL-STD 810 C, D, E and F specifications

No Accessories List at present

Please Contact Us for more information

  • IAS X-BAND 50 VHF FM & UHF FM cross band repeater
  • IAS X-BAND 50 AIR U Airband AM & UHF FM cross band repeater
  • IAS X-BAND 50 AIR V Airband AM & VHF FM cross band repeater
  • IAS X-BAND 50 UU UHF FM & UHF FM cross band repeater
  • IAS X-BAND 50 VV VHF FM & VHF FM cross band repeater
