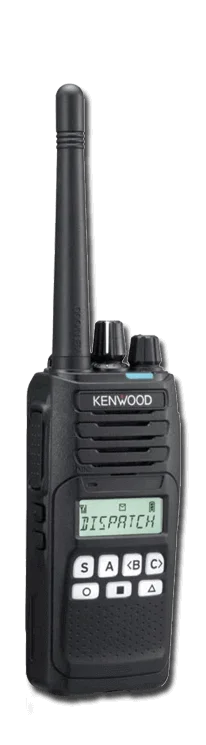

KENWOOD NX-1200 / 1300

ONE-“K”-FITS-ALL: A SINGULAR SOLUTION

If you are thinking of harnessing the latest digital protocols – NXDN or DMR – to enhance business efficiency or FM analog for its simplicity, the NX-1200/1300 has you covered. KENWOOD’s One-“K”-Fits-All solution offers the widest selection of two-way radios for everyday use. The model matrix also includes basic and keypad variations, with or without a high-contrast backlit LCD. Other features include a 7-color LED indicator and the popular KENWOOD 2-pin audio accessory connector. Plus, mixed-mode operation ensures seamless integration with legacy radios while smoothing the onward migration path to digital. But whatever your specific needs, audio quality is what determines clear voice communications – which is why KENWOOD radios are used under the most grueling conditions, like the cockpit of a racing car. Thanks to KENWOOD’s extensive experience with professional systems, reliability is second to none. So, whatever your radio requirements, KENWOOD’s NX-1200/1300 offers a single platform that’s right for you.

Frequency Band:
VHF/UHF

Frequency Range:
136-174MHz, 450-520MHz, 400-470MHz

Power Output:
5W / 4W / 1W

Standard battery chemistry type:

Battery life (based on a 5-5-90 duty cycle):
Approx. 14.5 hours

Number of Channels/Groups/Zones:

Channel spacing:
12.5 / 15 / 25 30 kHz, 12.5 / 25 kHz Analog - 6.25 / 12.5 kHz Digital

Dimensions W x H x D (with standard battery)
2..13 x 4.84 x 1.32 in

Weight (with standard battery)
10.41oz

Keypad / Keys
8-Digit LCD Models

Display
High-Contrast, White Backlit LCD With Keypad or Basic Enclosure Models

Operating temperature
-22 F to + 140F

Mil spec
MIL-STD-810 C/D/E/F/G

IP Standards
IP54/55, IP67 (Optional)
