KENWOOD NX-3200/3300

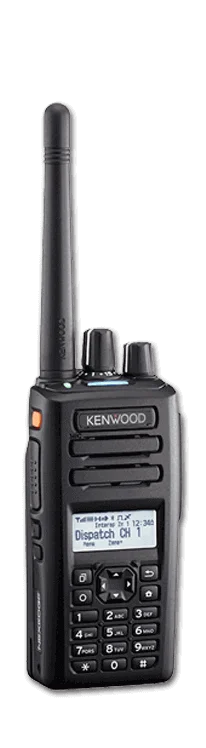

KENWOOD NX-3200

NX-3200/3300

  • Description
  • Performance Characteristics
  • Physical Characteristics
  • User Environment

The versatile KENWOOD NX-3200 and NX-3300 handheld radios support both NXDN® and DMR digital protocols as well as mixed digital & FM analog operation, enabling them to serve with distinction in a wide range of enterprise and operation-critical applications. Compact yet designed with durability in mind, they are packed with convenient features like Bluetooth® for hands-free operation and built-in GPS. Three different models with 14-pin Universal connector are available: Full Keypad model with LCD, Standard Keypad model with LCD and a large 4-way D-pad, and the Basic Model without LCD or keypad. Additionally, for expansion capability a software license certification system facilitates extensive customization.

Frequency Band:
VHF/UHF

Frequency Range:
136-174 MHz / 450-520 MHz

Power Output:
5W / 4W / 1W

Standard battery chemistry type:
Li-ion

Battery life (based on a 5-5-90 duty cycle):
9 Hours

Number of Channels/Groups/Zones:
512 Channels / 128 Zones with LCD - 64 Channels / 4 Zones for no LCD models

Channel spacing:
12.5/15/20/25/30 kHz, 12.5 / 25 kHz Analog
6.25 / 12.5 kHz Digital

Dimensions W x H x D (with standard battery)
2.20 x 4.71 x 1.43 in

Weight (with standard battery)
11.1 oz

Keypad / Keys
4-way Directional-pad (D-pad)

Display
4-Line Basic Frame / 14 Characters

Operating temperature
-22˚ F to +140˚ F

Mil spec
MIL-STD-810 C/D/E/F/G

IP Standards
IP54, IP55, IP67

  • Multi-protocol digital radio: Designed to operate under an NXDN or DMR digital, and FM analog protocols
  • NXDN Conventional and Type-C & Gen2 Trunking
  • DMR Tier III Trunking
  • S-Trunking (Ver. UP)
  • DMR Auto Slot Select
  • Site Roaming
  • DMR Tier II conventional
  • Mixed Digital & FM Analog Operation allows gradual migration at your own pace
  • 7-color Light Bar Indicator on the top panel
  • 4-Line Basic Frame (2-Line Main/Sub - LCD, icon & key guide) / 14 Characters
  • 5-Line Text Message Frame (3 Lines of Text, icon & key guide)
  • 4-way Directional-pad (D-pad) for intuitive control and operation
  • Built-in GPS Receiver/Antenna for effective fleet management
  • Built-in Bluetooth for hands-free operation
  • Applicable Bluetooth profiles: HSP(Headset Profile provided) and SPP (Serial Port Profile available as an option)
  • Renowned KENWOOD Audio Quality can be achieved with Active Noise Reduction (ANR) that utilizes built-in DSP
  • Software DES and AES Encryptions for NXDN Conventional/Trunking and DMR Conventional protocols
  • Built-in Motion Sensor (Man-down, Stationary and Motion Detection)
  • Intrinsically Safe Option
  • Available models: Full Keypad (w/ LCD and full keypad), Standard Keypad (w/ LCD and 4-way large D-pad/4 key), and Basic (w/o LCD and keypad)
  • 2-pin audio connector (14-pin Universal connector models, NX-3200/3300, are also available)
KRA-22M

KRA-22M

VHF low-profile antenna 148-162 MHz

KRA-22M2

KRA-22M

VHF low-profile antenna 162-174 MHz

KRA-22M3

KRA-22M

VHF Low-profile helical antenna 136-150 MHz

KRA-23M

KRA-23M

UHF low-profile antenna 450-490 MHz

KRA-23M2

KRA-23M2

UHF low-profile antenna 470-520 MHz

KRA-23M3

KRA-23M3

UHF Low-profile helical antenna 403-430 MHz

No Image Available

KRA-25

High-gain VHF helically loaded whip antenna 148-162 MHz

KRA-26M

KRA-26M

VHF helical antenna 146-162 MHz

KRA-26M2

KRA-26M2

VHF helical antenna 162-174 MHz

KRA-26M3

KRA-26M3

VHF helical antenna 136-150 MHz

KRA-27M

KRA-27M

UHF whip antenna 440-490 MHz

KRA-27M2

KRA-27M2

UHF whip antenna 470-520 MHz

KRA-27M3

KRA-27M3

UHF whip antenna 400-450 MHz

No Image Available

KRA-28

Broadband VHF helically loaded whip antenna 140-170 MHz

KBP-5

KBP-5

AA Alkaline Refillable Battery Pack (6 AA; 9V) cells not included

No Image Available

KMB-16

Six Unit Charger Adapter for the KSC-16/20/24/25/25L chargers (chargers not included)

No Image Available

KMB-23

Six Unit Charger Adapter for the KSC-16/20/24/25/25L/32 chargers (chargers not included)

KNB-55

KNB-55L

1480 mAh, Li-ion battery - requires KSC-25SK/25LSK/256K/256AK charger

KNB-56

KNB-56N

1400 mAh, Ni-MH battery

KNB-57LAM

KNB-57LAM

2000 mAh, Li-ion battery
requires KSC-25SK/25LSK/256K/256AK charger

KNB-78

KNB-78LM

2860 mAh, Li-ion battery, IP67, battery only, best for trunked mode operation

KNB-79

KNB-79LCM

CSA US Intrinsically Safe Battery Li-ion 2860mAh, IP67, battery only [Intrinsically Safe Option]

KSC-256

KSC-256AK

Rapid-rate 6-Unit charger for KNB-26N/55L/56N/57L/57LAM/68LC/78LM/79LCM

KSC-25LSK

KSC-25LSK

100~240 volt rapid rate single unit charger for KNB-40LC(V)/55L/57L/57LAM/68LC Li-ion Battery

No Image Available

KSC-25SK

110 volt Rapid-rate single-unit charger for KNB-26N/40LC(V)/55L/56N/57L/57LAM/68LC

No Image Available

KVC-23

Rapid-rate DC vehicular charger for TK-5x10/5x20, NX-5x00/x00/x10/x20, TK-x180, TK-x170, & TK-x360 portables with Lithium Ion/Lithium Polymer/NiMH packs only

No Image Available

KVC-4

Vehicular charger adapter for the KSC-16/18/20/24/25SK chargers (chargers not included) *KSC-25LSK is not compatible with KVC-4.

KBH-11

KBH-11

Spring action belt clip (2.5")

No Image Available

KBH-8DS

Leather swivel belt loop with portable D-Ring attachment

No Image Available

KLH-206K

Heavy-Duty Leather Case w/Swivel Belt Loop for Basic Model

No Image Available

KLH-206K2

Heavy-Duty Leather Case w/Swivel Belt Loop for Standard Keypad Model

No Image Available

KLH-206K3

Heavy-Duty Leather Case w/Swivel Belt Loop for Full Kyepad Model

No Image Available

KLH-207K

Nylon carrying case for Basic Model

No Image Available

KLH-207K2

Nylon carrying case for Standard Keypad Model

No Image Available

KLH-207K3

Nylon carrying case for Full Keypad Model

KEP-1

KEP-1

3.5mm earphone kit for KMC-48GPS Speaker Mics

No Image Available

KHS-11BL

2-wire palm mic w/earphone, universal connector (Black) [Intrinsically Safe Approved Accessory]

No Image Available

KHS-12BL

3-wire mini lapel mic w/earphone, universal connector (Black) [Intrinsically Safe Approved Accessory]

No Image Available

KHS-14

Lightweight Single muff headset w/boom mic & In-line PTT [Intrinsically Safe Approved Accessory]

No Image Available

KHS-15D-BH

Heavy-duty noise reduction behind-the-headset w/noise canceling boom mic & in-line PTT [Intrinsically Safe Approved Accessory]

No Image Available

KHS-15D-OH

Heavy-duty noise reduction over-the-headset w/noise canceling boom mic & in-line PTT [Intrinsically Safe Approved Accessory]

No Image Available

KMC-40

MIL-SPEC, Speaker Microphone with Antenna Connector [Intrinsically Safe Approved Accessory]
Note: 5/16" Coax cable hex wrench included (antenna is not included).

No Image Available

KMC-41M

MIL-SPEC, IP54/55 Noise-canceling Speaker Mic [Intrinsically Safe Approved Accessory]

No Image Available

KMC-42WDM

MIL-SPEC, IP67 (Immersion) Noise-canceling Speaker Mic [Intrinsically Safe Approved Accessory]
Note: Radio does not have an IP67 Immersion option; meets MIL STD810 rain standards

No Image Available

KMC-54WDM

MIL-SPEC, IP67 (Immersion) Speaker Mic Compatible with ANR Feature
Note: ANR Feature with KMC-54WDM is only compatible with a NX-5000/3000 series portable

No Image Available

KWD-YH-3000U

Yellow Housing Kit for NX-3x00 series Portables (Standard Key Model Only)

  • NX-3200K VHF (136-174MHz), 5.0 Watts, 64 CH, Basic Model
  • NX-3200K2 VHF (136-174MHz), 5.0 Watts, 512 CH, Standard Key Model
  • NX-3200K3 VHF (136-174MHz), 5.0 Watts, 512 CH, Full Key Model
  • NX-3300K UHF (400-520MHz), 5.0 Watts, 64 CH, Basic Model
  • NX-3300K2 UHF (400-520MHz), 5.0 Watts, 512 CH, Standard Key Model
  • NX-3300K3 UHF (400-520MHz), 5.0 Watts, 512 CH, Full Key Model
