NX-3920G/3921G

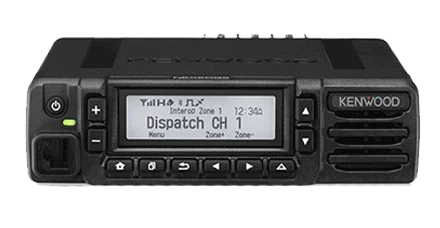

KENWOOD NX-3920G

NX-3920G/3921G

  • Description
  • Performance Characteristics
  • Physical Characteristics
  • User Environment

This adaptable KENWOOD NX-3920G and NX-3921G mobile radios support both NXDN and DMR digital protocols as well as mixed digital & FM analog operation, enabling them to serve with distinction in a wide range of enterprise- and operation-critical applications. Designed with flexibility in mind, they are packed with convenient features like Bluetooth® for hands-free operation and built-in GPS. And providing greater freedom of installation, the radio’s front panel can be used as a remote-control head (this requires an optional accessories). Additionally, for expansion capability a software license certification system facilitates extensive customization.

Frequency band:
800MHz/900MHz

Frequency range:
806-825, 896-902 MHz / 851-870, 935-941 MHz

Power Output:
5W- 10W

Number of Channels/Groups/Zones:
512 Channels / 128 Zones (1,000 Channels optional)

Channel spacing:
12.5 / 25 kHz Analog
6.25 / 12.5 kHz Digital

Dimensions W x H x D
6.30 x 1.69 x 6.30 in

Weight
2.65 lbs

Keypad / Keys
No Keypad

Display
4-line Basic Frame / 14 Characters

Operating temperature
-22°F to +140°F

Mil spec
MIL-STD-810 C/D/E/F/G

IP Standards
IP54/55

  • 800/900 MHz DIGITAL TRANSCEIVER
  • Multi-protocol digital radio: Designed to operate under an NXDN or DMR digital, and FM analog protocols
  • NXDN Conventional and Type-C & Gen2 Trunking
  • DMR Tier III Trunking
  • S-Trunking (Ver. UP)
  • DMR Auto Slot Select
  • Site Roaming
  • DMR Tier II conventional
  • Mixed Digital & FM Analog Operation allows gradual migration at your own pace
  • 4-line Basic Frame (2-line Main/Sub-LCD, icon, & key guide) / 14 Characters
  • 4-Line Text Message Frame (2 Lines ofText, icon & key guide)
  • 7-color LED indicator
  • External and Internal Speaker Switching
  • Built-in GPS Receiver module for effective fleet management (G model only Optional KRA-40G Required)
  • Built-in Bluetooth for hands-free operation(G model only)
  • Renowned KENWOOD Audio Quality can be achieved with Active Noise Reduction (ANR) that utilizes built-in DSP
  • Software DES and AES Encryptions for NXDN Conventional/Trunking and DMR Conventional protocols
  • MIL-STD-810 C/D/E/F/G
  • RF Power Output: 15 W / 5 W
KCT-71A100

KCT-71A100

KCT-71A Extended Control Head Cable (up to 100 ft. max.)
Note: Please specify exact length at 1ft. increments when ordering. Caution: Extended control head cables exhibit a loss in speaker audio power to the control heads.

KCT-71A50

KCT-71A50

KCT-71A Extended Control Head Cable (up to 50 ft. max.)
Note: Please specify exact length at 1ft. increments when ordering. Caution: Extended control head cables exhibit a loss in speaker audio power to the control heads.

KCT-71M2

KCT-71M2

Remote Control Cable (17 feet)

KCT-71M3

KCT-71M3

Remote Control Cable (25 feet)

KCT-71M4

KCT-71M4

Remote Control Cable (1.6 feet)

No Image Available

KMB-34

Control Station Mounting Case for KPS-15 Power Supply and Mobiles
(excludes TK-5x10/6110 series).
(mobile mounting hardware included)

KMC-59

KMC-59C

Control Station Desktop Microphone (8-pin mod. plug)
Note: Compatible with FDMA (analog) and TDMA operations.

KMC-9

KMC-9C

Control Station Desktop Microphone (8-pin mod. plug)

No Image Available

KPS-15

DC Switching Power Supply (117/230 VAC; 23A max. continuous, 25A peak)

No Image Available

KRK-18HM

Interface Kit for a Control Head

No Image Available

KRK-19BM

Interface Kit for an RF Deck

KCT-73

KCT-73MIC

External Microphone kit w/9.8 ft. cord for Safer Driving

KCT-74

KCT-74PTT

External PTT Switch kit w/9.8 ft cord for Safer Driving

KES-3

KES-3S

External speaker (compact low profile; black case; 3.5 mm phono plug-in)

KES-5

KES-5

External speaker, 40W max input
Note: requires KCT-60M installed.

KMC-35

KMC-35

MIL-SPEC Standard electret mobile microphone (8-pin mod. plug) - same as supplied

KMC-36

KMC-36

MIL-SPEC Standard electret mobile microphone with 12-key DTMF (8-pin mod. plug)

KCT-18

KCT-18

Ignition sense cable (requires KCT-60M Acc. Cable Option)

KCT-36

KCT-36

Extension Cable for KCT-34/35/39/40M/60M; 117.6 inches (9.8 ft)

KCT-60

KCT-60M

DB15-to-15pin Molex Adapter Cable

KCT-72

KCT-72

External Accessory Connection Cable for KRK-18HM

KLF-2

KLF-2

Line Filter (suppresses alternator whine, 25dB, 25A max).

KMB-10

KMB-10

Key lock adapter

No Image Available

KRA-40GM

GPS Antenna

  • NX-3920GK 800MHz, 15 Watts, 512 CH, 128 Zones, NXDN Conv & Trunking
  • NX-3921GK 900MHz, 15 Watts, 512 CH, 128 Zones, NXDN Conv & Trunking
