KENWOOD NX-5200 / 5300 / 5400

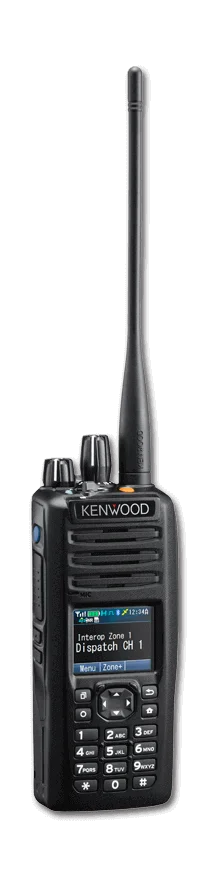

KENWOOD NX-5200

NX-5200 / 5300 / 5400

  • Description
  • Performance Characteristics
  • Physical Characteristics
  • User Environment

Round-the-clock public safety operations - police, fire and EMS - can be extremely demanding for both personnel and equipment. The NX-5000 Series radios are robust and offer clear mission-critical communications in numerous environments - even with sirens in the background. Advanced emergency features, such as man-down detection and ease of operation, even with gloves, make NX-5000 Series radios the perfect choice to enhance safety in the line of duty.

Thanks to multi-digital operation, NEXEDGE® offers a flexible communications system that is ideal for a wide range of industries and fields - ranging from utilities and traffic agencies to schools, taxi services and security companies. What's more, top-of-the-line features such as the transflective display for easy viewing in sunshine, GPS capability and Bluetooth® connectivity all contribute to enhanced efficiency and cost-effectiveness. From top to bottom, the NX-5200, NX-5300, and NX-5400 Series radios mean business.

Frequency band:
VHF/UHF/700MHz/800MHz

Frequency range:
136-174 MHz / 450-520 MHz, 380-470 MHz / 763-776, 851-870 MHz

Power Output:
1W – 6W / 1W – 5W / 1W – 3W

Standard battery chemistry type:
Li-Ion

Battery life (based on a 5-5-90 duty cycle):
11 Hours

Number of Channels/Groups/Zones:
1024 Channels / 128 Zones (Up to 4,000 with option)

Channel spacing:
12.5 / 15 / 25 / 30 kHz, 12.5 / 25 kHz Analog
6.25 / 12.5 kHz Digital

Dimensions W x H x D (with standard battery)
2.28 x 5.47 x 1.56 in

Weight (with standard battery)
14.3 oz

Keypad / Keys
4-way Directional-pad (D-pad) and 2-Position Lever Switch

Display
Large, Color 1.74" (240 x 180 pixels) Transflective TFT Display

Operating temperature
-22°F to +140°F

Mil spec
MIL-STD-810 C/D/E/F/G

IP Standards
IP54/55/67/68

  • Multi-Digital Operation in two of NXDN, DMR & P25 (Phase 1 & 2)
  • NXDN Conventional and Type-C & Gen2 Trunking
  • DMR Tier III Trunking
  • S-Trunking (Ver. UP)
  • DMR Auto Slot Select
  • Site Roaming
  • DMR Tier II conventional
  • Mixed Digital & FM Analog Operation
  • Large, Color 1.74" (240 x 180 pixels) Transflective TFT Display
  • Built-in GPS Receiver/Antenna
  • Built-in Bluetooth
  • Built-in 56-bit DES & Optional 256-bit AES Encryption (NXDN & P25)
  • Active Noise Reduction (ANR)
  • Built-in Motion Sensor & Advanced Staff Save Functions
  • microSD/microSDHC Memory Card Slot
  • Intelligent Battery System Option
  • IP67/68 Immersion and MIL-STD-810 C/D/E/F/G
  • Intrinsically Safe Option
KRA-22M

KRA-22M

VHF low-profile antenna 148-162 MHz

KRA-22M2

KRA-22M

VHF low-profile antenna 162-174 MHz

KRA-22M3

KRA-22M

VHF Low-profile helical antenna 136-150 MHz

KRA-23M

KRA-23M

UHF low-profile antenna 450-490 MHz

KRA-23M2

KRA-23M2

UHF low-profile antenna 470-520 MHz

KRA-23M3

KRA-23M3

UHF Low-profile helical antenna 403-430 MHz

No Image Available

KRA-25

High-gain VHF helically loaded whip antenna 148-162 MHz

KRA-26M

KRA-26M

VHF helical antenna 146-162 MHz

KRA-26M2

KRA-26M2

VHF helical antenna 162-174 MHz

KRA-26M3

KRA-26M3

VHF helical antenna 136-150 MHz

KRA-27M

KRA-27M

UHF whip antenna 440-490 MHz

KRA-27M2

KRA-27M2

UHF whip antenna 470-520 MHz

KRA-27M3

KRA-27M3

UHF whip antenna 400-450 MHz

No Image Available

KRA-28

Broadband VHF helically loaded whip antenna 140-170 MHz

No Image Available

KRA-29

Broadband UHF Whip Antenna 380-430 MHz

KRA-32

KRA-32K

700/800 MHz Whip Antenna

No Image Available

KRA-36

700/800 MHz Stubby Antenna

No Image Available

KBP-8M

AA Alkaline Refillable Battery Pack (12 AA: 9V). Cells not included.
Note: The color of the case is International Orange.

No Image Available

KNB-L1M

Li-ion 2000mAh (Compact Slim)

No Image Available

KNB-L2M

Li-ion 2600mAh (Standard)

No Image Available

KNB-L3M

Li-ion 3400mAh (High Capacity)

No Image Available

KNB-LS5CU

CSA US Intrinsically Safe Battery Li-ion 2000mAh
Note:Due to the I.S. circuitry on the KNB-LS5CU, the cells may lose charge during storage. To prevent loss of capacity during storage, charge the battery for 10 minutes at least every 4 months with the KSC-32, KSC-Y32K, KSC-326K or KSC-326AK. [Intrinsically Safe Option]

No Image Available

KNB-LS7M

CSA US Intrinsically Safe Battery Li-ion 3800mAh
Note:Due to the I.S. circuitry on the KNB-LS7M, the cells may lose charge during storage. To prevent loss of capacity during storage, charge the battery for 10 minutes at least every 4 months with the KSC-32, KSC-Y32K, KSC-326K or KSC-326AK. [Intrinsically Safe Option]

No Image Available

KNB-N4M

Ni-MH 2500mAh

KSC-32

KSC-32

Rapid-rate single-unit charger for KNB-31A/32N/33L/41NC/43L/47L/48L/50NC
Note: Includes 110/220V auto-switching AC adapter with U.S.-style line cord plug; requires plug adapter for 220V Euro-style outlets (not supplied).

KSC-326

KSC-326AK

Rapid-rate 6-unit charger CEC Compliant

No Image Available

KSC-Y32K

Rapid-rate single-unit charger (Long-Life Charge Mode capable with KAS-12 Software)

KVC-15

KVC-15

Rapid-rate DC vehicular charger adapter for the KSC-32 (chargers not included; includes KSC-mobile bracket & cigarette lighter cable DC adapter)

No Image Available

KVC-23

Rapid-rate DC vehicular charger for TK-5x10/5x20, NX-5x00/x00/x10/x20, TK-x180, TK-x170, & TK-x360 portables with Lithium Ion/Lithium Polymer/NiMH packs only

KBH-11

KBH-11

Spring action belt clip (2.5")

No Image Available

KBH-8DS

Leather swivel belt loop with portable D-Ring attachment

No Image Available

KLH-137ST

Firemen's Heavy-Duty Leather Shoulder Strap for a Heavy-Duty Leather Case (KLH-75B/76B/78B/79B//92/122/123/133/148/154)

No Image Available

KLH-200K3

Heavy-duty leather carrying case for NX-5000 Series with KNB-L1/L2/L3/LS5CU(for both keypad models)

No Image Available

KLH-201K3

Nylon carrying case for NX-5000-series with KNB-L1/L2/L3/LS5CU(for both keypad models)

No Image Available

KLH-6SW

Leather swivel belt loop / detachable swivel D-Ring back

No Image Available

KCT-51

Hirose 6-pin Adapter (adapts KVL/aftermarket audio acc. to portable connector)[Intrinsically Safe Approved Accessory]

KEP-1

KEP-1

3.5mm earphone kit for KMC-48GPS Speaker Mics

KEP-2

KEP-2

2.5mm earphone kit for KMC-17/45D Speaker Mic[KEP-2 & KMC-21 are not plug-compatible]

No Image Available

KHS-11BL

2-wire palm mic w/earphone, universal connector (Black) [Intrinsically Safe Approved Accessory]

No Image Available

KHS-12BL

3-wire mini lapel mic w/earphone, universal connector (Black) [Intrinsically Safe Approved Accessory]

No Image Available

KHS-14

Lightweight Single muff headset w/boom mic & In-line PTT [Intrinsically Safe Approved Accessory]

No Image Available

KHS-15D-BH

Heavy-duty noise reduction behind-the-headset w/noise canceling boom mic & in-line PTT [Intrinsically Safe Approved Accessory]

No Image Available

KHS-15D-OH

Heavy-duty noise reduction over-the-headset w/noise canceling boom mic & in-line PTT [Intrinsically Safe Approved Accessory]

No Image Available

KMC-42WDM

MIL-SPEC, IP67 (Immersion) Noise-canceling Speaker Mic [Intrinsically Safe Approved Accessory]
Note: Radio does not have an IP67 Immersion option; meets MIL STD810 rain standards

No Image Available

KMC-49

MIL-SPEC, Speaker Microphone with Antenna Connector
Note: 5/16" Coax cable hex wrench included (antenna is not included).[Intrinsically Safe Option]

No Image Available

KMC-54WDM

MIL-SPEC, IP67 (Immersion) Speaker Mic Compatible with ANR Feature
Note: ANR Feature with KMC-54WDM is only compatible with a NX-5000/3000 series portable

No Image Available

KWD-OH-5000

Orange Housing Kit for NX-5000 Series Portables (Standard Key Model K2/K5 Only)

No Image Available

KWD-YH-5000

Yellow Housing Kit for NX-5000 Series Portables (Standard Key Model K2/K5 Only)

  • NX-5200K2 VHF (136-174MHz), 6.0 Watts NXDN Conventional / TYPE-C (Gen1/Gen2) Trunking
  • NX-5300K2 UHF (450-520MHz), 5.0 Watts NXDN Conventional / TYPE-C (Gen1/Gen2) Trunking
  • NX-5300K5 UHF (380-470MHz), 5.0 Watts NXDN Conventional / TYPE-C (Gen1/Gen2) Trunking
  • NX-5200K3 VHF (136-174MHz), 6.0 Watts NXDN Conventional / TYPE-C (Gen1/Gen2) Trunking
  • NX-5300K3 UHF (450-520MHz), 5.0 Watts NXDN Conventional / TYPE-C (Gen1/Gen2) Trunking
  • NX-5300K6 UHF (380-470MHz), 5.0 Watts NXDN Conventional / TYPE-C (Gen1/Gen2) Trunking
  • NX-5200-ISCK2 VHF (136-174MHz), 6.0 Watts NXDN Conventional / TYPE-C (Gen1/Gen2) Trunking
  • NX-5200-ISCK3 VHF (136-174MHz), 6.0 Watts NXDN Conventional / TYPE-C (Gen1/Gen2) Trunking
  • NX-5300-ISCK2 UHF (450-520MHz), 5.0 Watts NXDN Conventional / TYPE-C (Gen1/Gen2) Trunking
  • NX-5300-ISCK3 UHF (450-520MHz), 5.0 Watts NXDN Conventional / TYPE-C (Gen1/Gen2) Trunking
  • NX-5300-ISCK5 UHF (380-470MHz), 5.0 Watts NXDN Conventional / TYPE-C (Gen1/Gen2) Trunking
  • NX-5300-ISCK6 UHF (380-470MHz), 5.0 Watts NXDN Conventional / TYPE-C (Gen1/Gen2) Trunking
  • NX-5400K2 700 / 800 MHz, 3.0 Watts NXDN Conventional / TYPE-C (Gen1/Gen2) Trunking Standard Key Model
  • NX-5400-ISCK2 700 / 800 MHz, 3.0 Watts NXDN Conventional / TYPE-C (Gen1/Gen2) Trunking Standard Key Model
  • NX-5400-ISCK3 700 / 800 MHz, 3.0 Watts NXDN Conventional / TYPE-C (Gen1/Gen2) Trunking Full Key Model
