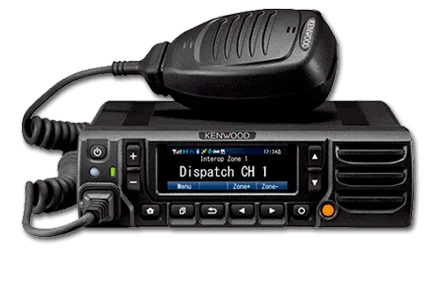

KENWOOD NX-5700 / 5800 / 5900

KENWOOD NX-5700

NX-5700 / 5800 / 5900

  • Description
  • Performance Characteristics
  • Physical Characteristics
  • User Environment

The NX-5000 Series offers unsurpassed interoperability for a wide variety of users as it supports three digital CAIs — NXDN, DMR and P25 (Phase 1 & 2) — plus FM analog in a single radio. Best of all, a desired CAI can be selected at will, giving you the freedom to migrate at your own pace — whether you are intent on going fully digital, undecided about which digital system to pick, or just wanting to maintain both digital and analog for a while. A NX-5700, NX-5800, and NX-5900 radio can simultaneously support two digital protocols plus analog, offering the following combinations: FM/DMR/ NXDN, FM/NXDN/P25, and FM/DMR/P25.

Frequency band:
VHF/UHF/700MHz/800MHz

Frequency range:
136-174 MHz / 450-520 MHz, 380-470 MHz / 763-776, 851-870 MHz

Power Output:
5W – 50W / 5W – 45W / 2W – 30W, 2W – 35W

Number of Channels/Groups/Zones:
1024 Channels / 128 Zones (Up to 4,000 with option)

Channel spacing:
12.5 / 15 / 25 / 30 kHz, 12.5 / 25 kHz Analog
6.25 / 12.5 kHz Digital

Dimensions W x H x D
6.69 x 1.89 x 6.93 in.

Weight (with standard battery)
3.53 lbs

Keypad / Keys

Display
Large, Color 1.74" (240 x 180 pixels) Transflective TFT Display

Operating temperature
-22°F to +140°F

Mil spec
MIL-STD-810 C/D/E/F/G

IP Standards
IP54/55

  • Multi-Digital operation in NXDN, DMR, and P25 (Phase 1 & 2) protocols
  • Any combination of two digital protocols can be selected from NXDN, DMR, and P25
  • Mixed Digital & FM Analog Operation allows intelligent migration in mixed sites and easy migration with digital radios in other sites
  • Large, Color 2.55" (154 x 422 pixels) TFT Display for at-a-glance operational status checking
  • Easy to follow GUI and Multi-line Text to convey more information
  • Dual Remote-Control Head and Multi-Band (Multi RF Deck) Control Option providing scalable configurations for various operations and applications
  • Built-In GPS Receiver for effective fleet management
  • Bluetooth® Module built-in for hands-free operation
  • Renowned KENWOOD Audio Quality can be achieved with Active Noise Reduction (ANR) that utilizes built-in DSP with two microphones for suppression of ambient noise
  • Built-in 56-bit DES Encryption
  • Optional 256-bit AES Encryption
  • microSD/microSDHC Memory Card Slot for increased memory capacity for “Voice & Data”
  • IP54/55 and MIL-STD-810 C/D/E/F/G
KCT-71A100

KCT-71A100

KCT-71A Extended Control Head Cable (up to 100 ft. max.)
Note: Please specify exact length at 1ft. increments when ordering. Caution: Extended control head cables exhibit a loss in speaker audio power to the control heads.

KCT-71A50

KCT-71A50

KCT-71A Extended Control Head Cable (up to 50 ft. max.)
Note: Please specify exact length at 1ft. increments when ordering. Caution: Extended control head cables exhibit a loss in speaker audio power to the control heads.

KCT-71M2

KCT-71M2

Remote Control Cable (17 feet)

KCT-71M3

KCT-71M3

Remote Control Cable (25 feet)

KCT-71M4

KCT-71M4

Remote Control Cable (1.6 feet)

No Image Available

KCT-77M2

Remote Control Cable for KCH-21RM (17 feet)

No Image Available

KCT-90USB

USB Mobile Cable for SD Card Direct Access Support
Note: microSD function requires KWD-5002SD license.

No Image Available

KCT-91MRS

DB25 Cable for Mobile Relay Station (Conventional Only
)Note: - Mobile Relay Station requires Multi RF Deck Configuration. The cable requires between Decks.- Built-in GPS and Bluetooth are not available with Mobile Relay Station.

No Image Available

KMB-34

Control Station Mounting Case for KPS-15 Power Supply and Mobiles (excludes TK-5x10/6110 series).
(mobile mounting hardware included)

KMC-59

KMC-59C

Control Station Desktop Microphone (8-pin mod. plug)
Note: Compatible with FDMA (analog) and TDMA operations.

KMC-9

KMC-9C

Control Station Desktop Microphone (8-pin mod. plug)

No Image Available

KPS-15

DC Switching Power Supply (117/230 VAC; 23A max. continuous, 25A peak)

No Image Available

KRK-14HM

Control Head Interface Kit for KCH-19M

No Image Available

KRK-15BM

Control Head Remote Kit for a RF Deck

KCT-73

KCT-73MIC

External Microphone kit w/9.8 ft. cord for Safer Driving

KCT-74

KCT-74PTT

External PTT Switch kit w/9.8 ft cord for Safer Driving

KES-3

KES-3S

External speaker (compact low profile; black case; 3.5 mm phono plug-in)

KMC-35

KMC-35

MIL-SPEC Standard electret mobile microphone (8-pin mod. plug) - same as supplied

KMC-36

KMC-36

MIL-SPEC Standard electret mobile microphone with 12-key DTMF (8-pin mod. plug)

No Image Available

KAP-2

Horn Alert/P.A. Relay Option
Note: For MPT, HA operates in Trunked Mode only.

No Image Available

KCT-23M

DC Cable (35-50W Dash mount; pos/neg. 10 ft. leads)

No Image Available

KCT-23M3

DC Cable (35-50W Remote mount; pos.23 ft.; neg. 3.3. ft. leads)

KCT-46

KCT-46

Ignition sense cable (plugs directly into mobile chassis ignition sense line).

KCT-72

KCT-72

External Accessory Connection Cable for KRK-18HM

KLF-2

KLF-2

Line Filter (suppresses alternator whine, 25dB, 25A max).

KMB-10

KMB-10

Key lock adapter

No Image Available

KMB-33M

Standard Mounting Bracket

No Image Available

KRA-40GM

GPS Antenna

No Image Available

KCH-19M

Basic Control Panel

No Image Available

KCH-20RM

Full Featured Remote Control Panel. No Internal Speaker included.
KES-5/3 is required.

No Image Available

KCH-21RM

Hand Held Control Head for Long Cable
*Requires KCT-77M2 (17 ft.)

No Image Available

KCH-21RM-S

Hand Held Control Head with Short Cable (4 ft.)

  • NX-5700K VHF (136-174MHz), 50 Watts NXDN Conventional / TYPE-C (Gen1/Gen2) Trunking
  • NX-5800K UHF (450-520MHz), 45 Watts NXDN Conventional / TYPE-C (Gen1/Gen2) Trunking
  • NX-5800K2 UHF (380-470MHz), 45 Watts NXDN Conventional / TYPE-C (Gen1/Gen2) Trunking
  • NX-5900K 700 / 800 MHz, 30/35 Watts NXDN Conventional / 800MHz TYPE-C (Gen1/Gen2) Trunking
  • NX-5700BK NX-5700K (50W, 136-174 MHz) RF Deck Only
  • NX-5800BK NX-5800K (45W, 450-520 MHz) RF Deck Only
  • NX-5800BK2 NX-5800K2 (45W, 380-470 MHz) RF Deck Only
  • NX-5900BK NX-5900K (35W, 700/800 MHz) RF Deck Only
