NXR-5700 / 5800

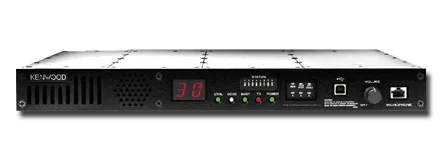

KENWOOD NXR-5700

NXR-5700 / 5800

  • Description
  • Performance Characteristics
  • Physical Characteristics
  • User Environment

Over 7 times faster and with 15 times more capacity than the previous models, the KENWOOD NXR-5700 and NXR-5800 NEXEDGE repeaters represent a breakthrough in performance. Extensive data storage means they can support everything from analog/digital conventional systems up to a highly sophisticated NEXEDGE Generation2 (Gen2) multi-site digital trunked network. And further adding to their future-proof credentials is upcoming support for Digital Simulcast. Stay ahead of the curve, with cutting-edge communications.

Frequency band:
VHF, UHF

Frequency range:
136-174 MHz (NXR-5700)
450-520 MHz 400-470 MHz 350-400 MHz (NXR-5800)

Power Output:
5/5/0.5 W

Number of Channels/Groups/Zones:
1 Channel

Channel spacing:
12.5 / 15 / 25 / 30 kHz, 12.5 / 25 kHz Analog
6.25 / 7.5 / 12.5 / 15 kHz, 6.25 / 12.5 kHz Digital

Dimensions W x H x D
19.02 x 1.73 x 13.03 in

Weight
11 lb

Keypad / Keys
No Keypad

Display
Two-Digit Numeric Display

Operating temperature
-22°F to +140°F

Mil spec
N/A

IP Standards
N/A

  • NXDN Conventional / Trunk
    • Conventional
    • Conventional IP Network
    • NEXEDGE Type-C Network
    • NEXEDGE Type-C Gen2 Network
  • Mixed Mode Operation - Digital / Analog FM
  • Power Output - 25 W / 0.5 Watts (100% Duty)
  • IP LAN/WAN Connectivity
  • Ethernet Network Interface
  • SNMP Protocol Ready
  • Frame Error Rate (FER) / RSSI Output
  • Built-In 0.5 ppm TCXO
  • 70 MHz UHF Coverage
  • 6.25 & 12.5 kHz Bandwidth
  • Two-Digit Numeric Display
  • LED Status Indicators
  • USB 2.0 Type-B Interface
  • UID & GID Validation
  • NXR Over-the-Air Alias
  • 6-Programmable Function Keys
  • 0.3 W Front Panel Speaker / 3-W External Speaker Audio
  • Remote Termination Interface
  • Programmable AUX I/O's
  • DTMF Remote Control
  • Remote System Firmware Updates
  • Program / Modem Interface
  • Digital Voting
  • RF Link
  • Digital Simulcast

No Accessories List at present

Please Contact Us for more information

  • NXR-5700K Repeater, Digital, VHF, 136-174MHz, 25W, 0.5ppm TCXO built-in
  • NXR-5800K Repeater, Digital, UHF, 450-520MHz, 25W, 0.5ppm TCXO built-in
  • NXR-5800K3 Repeater, Digital, UHF, 400-470MHz, 25W, 0.5ppm TCXO built-in
