NXR-900 / 901

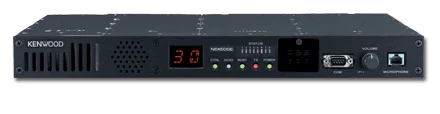

KENWOOD NXR-900

NXR-900 / 901

  • Description
  • Performance Characteristics
  • Physical Characteristics
  • User Environment

The KENWOOD NXR-900 and NXR-901 NEXEDGE® 800/900 MHz digital & analog repeaters allow users to replace existing 800MHz & 900MHz systems and are designed for use by utilities, SMR operators, transportation, government agencies and critical infrastructure. All offer NXDN® conventional, conventional IP, trunked single site and multi-site network capabilities and operate in 6.25 and 12.5 kHz digital modes.

Frequency band:
800MHx/900MHz

Frequency range:
806 - 825, 851 - 870 MHz / 896-902, 935-941 MHz

Power Output:
40 / 80 / 130 W (800 MHz) - 40 / 75 / 130 W (900 MHz)

Number of Channels/Groups/Zones:

Channel spacing:
12.5 kHz, 12.5 /25 kHz Analog
6.25 / 12.5 kHz Digital

Dimensions W x H x D
19.02 x 1.73 x 13.03 in

Weight
11 lb

Keypad / Keys
No Keypad

Display
Two-Digit LED Display

Operating temperature
-22˚ F to + 140˚ F

Mil spec
NA

IP Standards
NA

  • Fully Supports NXDN Type-C Trunking & 2nd Generation as well as NXDN Conventional
  • Mixed Digital & FM Analog Operation
  • Built-in IP Interface for sending remote control command in both conventional and trunking modes
  • 30 Channel Scanning Base Station (Conventional Mode)
  • 0.5-5 W, 5-25 W RF/Exciter Output
  • 360 mW Exciter Output
  • Repeater Operation
  • LED Status Indicators
  • 6 Programmable Function Keys
  • 0.3 Watt Front Panel Speaker
  • 3 Watt External Speaker Audio
  • Volume Control
  • Program/Modem Interface
  • Remote Termination Interface
  • Programmable AUX I/O's
  • DTMF Front Panel PF Key Control
  • DTMF AUX Output Control
  • DTMF AUX Input Monitoring
  • KPG-109D Windows® FPU
  • Flash Firmware Upgrading

No Accessories List at present

Please Contact Us for more information

  • NXR-900K Repeater, Digital, RX 806-825 MHz, TX 851-870 MHz
  • NXR-901K Repeater, Digital, RX 896-902MHz, TX 935-941MHz
