KENWOOD TK-2170 / 3170

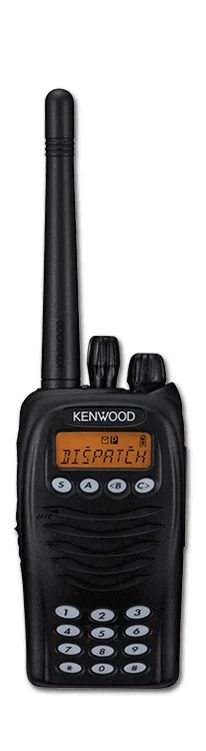

KENWOOD TK-2170

TK-2170 / 3170

  • Description
  • Performance Characteristics
  • Physical Characteristics
  • User Environment

KENWOOD's TK-2170 and TLK-3170 analog portable radios are available to VHF and UHF radio users. These mid-tier units provide enhanced features for budget conscious volunteer public safety, government, and industrial users. The TK- TK-2170 and TLK-3170 also include a large channel and zone capacity that helps facilitate inter-agency interoperability, mutual aid, and workgroup channel organization. Inversion scrambling, a standard feature, provides a moderate level of voice security. This unit provides full FleetSync capabilities including PTT ID, Caller ID, and text messaging storage, recall and display.

Frequency band:
VHF, UHF

Frequency range:
136-174 MHz (TK-2170) / 450-490 MHz, 400-430 MHz (TK-3170)

Power Output:
1W - 5W (TK-2170) / 1W - 4W (TK-3170)

Standard battery chemistry type:
Li-Ion

Battery life (based on a 5-5-90 duty cycle):
9 Hours

Number of Channels/Groups/Zones:
128 Channels / 128 Zones

Channel spacing:
25, 30 kHz/12.5,15 kHz Wide / 25 kHz/12.5 kHz Narrow

Dimensions W x H x D (with standard battery)
2.2 x 4.3 x 1.21 in

Weight (with standard battery)
10.62oz

Keypad / Keys
12-Key DTMF / PF Keypad Models

Display
8-character backlit LCD Display

Operating temperature
-22˚ F to + 140˚ F

Mil spec
MIL-STD-810 C/D/E/F

IP Standards
IP54/55

  • Conventional Zones
  • Single Priority Scan
  • Single & Multi-Zone Scan
  • List Scan
  • 8 Character Alphanumeric Aliases
  • Backlit LCD
  • Function / Status LCD Icons
  • Transmit / Busy / Call Alert / Warn LED
  • 4 Front Panel PF keys
  • 3 Side PF Keys
  • Orange Emergency / AUX Key
  • 12-Key DTMF / PF Keypad Models
  • 500 mW Audio Power
  • Enhanced KENWOOD Audio
  • Companded Audio
  • VOX Ready
  • Voice Inversion Scrambler Built-in
  • Encryption / ANI Board Control
  • Easy Option Port (20-Pin)
  • Emergency Call Features
  • Emergency Man-Down Option
  • QT / DQT
  • Two-Tone Decode
  • Single / Two-Tone Encode
  • Operator Selectable Tone
  • DTMF Encode / Decode
  • Special Alert Tone Pattern
  • Call Key
  • Time Out Timer
  • Busy Channel Lockout
  • LCD Battery Status Indicator
  • Low Battery Alert
  • Battery Saver
  • Weather-sealed ACC Connector
  • Speaker Mic Options
  • Windows® Programming & Tuning
  • Windows® Firmware Uploading
  • Field Programming & Tuning
  • Cloning
  • Intrinsically Safe Option
KRA-22M

KRA-22M

VHF low-profile antenna 148-162 MHz

KRA-22M2

KRA-22M

VHF low-profile antenna 162-174 MHz

KRA-22M3

KRA-22M

VHF Low-profile helical antenna 136-150 MHz

KRA-23M

KRA-23M

UHF low-profile antenna 450-490 MHz

KRA-23M2

KRA-23M2

UHF low-profile antenna 470-520 MHz

KRA-23M3

KRA-23M3

UHF Low-profile helical antenna 403-430 MHz

KRA-26M

KRA-26M

VHF helical antenna 146-162 MHz

KRA-26M2

KRA-26M2

VHF helical antenna 162-174 MHz

KRA-26M3

KRA-26M3

VHF helical antenna 136-150 MHz

KRA-27M

KRA-27M

UHF whip antenna 440-490 MHz

KRA-27M2

KRA-27M2

UHF whip antenna 470-520 MHz

KRA-27M3

KRA-27M3

UHF whip antenna 400-450 MHz

KBP-5

KBP-5

AA Alkaline Refillable Battery Pack (6 AA; 9V) cells not included

No Image Available

KMB-16

Six Unit Charger Adapter for the KSC-16/20/24/25/25L chargers (chargers not included)

No Image Available

KMB-23

Six Unit Charger Adapter for the KSC-16/20/24/25/25L/32 chargers (chargers not included)

KNB-55

KNB-55L

1480 mAh, Li-ion battery - requires KSC-25SK/25LSK/256K/256AK charger

KNB-56

KNB-56N

1400 mAh, Ni-MH battery

KNB-57LAM

KNB-57LAM

2000 mAh, Li-ion battery
requires KSC-25SK/25LSK/256K/256AK charger

KNB-68

KNB-68LC

2000 mAh, Li-ion battery - requires KSC-25SK/25LSK/256K/256AK charger [Intrinsically Safe Option]

KSC-256

KSC-256AK

Rapid-rate 6-Unit charger for KNB-26N/55L/56N/57L/57LAM/68LC/78LM/79LCM

KSC-25LSK

KSC-25LSK

100~240 volt rapid rate single unit charger for KNB-40LC(V)/55L/57L/57LAM/68LC Li-ion Battery

No Image Available

KSC-25SK

110 volt Rapid-rate single-unit charger for KNB-26N/40LC(V)/55L/56N/57L/57LAM/68LC

No Image Available

KVC-23

Rapid-rate DC vehicular charger for TK-5x10/5x20, NX-5x00/x00/x10/x20, TK-x180, TK-x170, & TK-x360 portables with Lithium Ion/Lithium Polymer/NiMH packs only

No Image Available

KVC-4

Vehicular charger adapter for the KSC-16/18/20/24/25SK chargers (chargers not included) *KSC-25LSK is not compatible with KVC-4.

KBH-12

KBH-12

Spring action belt clip

No Image Available

KBH-13DS

Leather swivel belt loop with portable D-Ring attachment

No Image Available

KLH-138

Heavy-Duty Leather Case w/Swivel Belt Loop for 160/170/173/360 (Non DTMF keypad)

No Image Available

KLH-139

Heavy-Duty Leather Case w/Swivel Belt Loop for 170/173 (w/ DTMF keypad)

KEP-1

KEP-1

3.5mm earphone kit for KMC-48GPS Speaker Mics

KEP-2

KEP-2

2.5mm earphone kit for KMC-17/45D Speaker Mic
[KEP-2 & KMC-21 are not plug-compatible]

KHS-10

KHS-10D-BH

Heavy-duty behind-the-headset w/noise canceling boom mic & in-line PTT

KHS-10

KHS-10D-OH

Heavy-duty over-the-headset w/noise canceling boom mic & in-line PTT

No Image Available

KHS-22

Behind-the-Head Headset with flexible boom mic and in-line PTT single ear

KHS-26

KHS-26

Clip Mic w/earphone

KHS-27

KHS-27A

D-Ring Ear Hanger w/PTT & Mic

No Image Available

KHS-31C

C-Ring Ear Hanger w/PTT & Mic

KHS-7

KHS-7

Single muff headset w/boom mic

KHS-7

KHS-7A

Lt. Wt Single muff headset w/boom mic & in-line PTT

KHS-8

KHS-8BL

Two-Wire palm mic w/earphone (black)

KHS-9

KHS-9BL

Three-Wire lapel mic w/earphone (black)

No Image Available

KMC-21

Compact speaker microphone

KMC-45

KMC-45D

MIL-SPEC, IP54/55 Speaker microphone (Built-in 2.5mm miniature earphone jack)

KMC-48GPS

KMC-48GPS

GPS Speaker Microphone

  • TK-2170K 136-174 MHz 5W, 128 CH / 128 Zone Conventional; 8 Character LCD, 4-key
  • TK-2170K2 136-174 MHz 5W, 128 CH / 128 Zone Conventional; 8 Character LCD, 4 + 12-key
  • TK-3170K 450-490 MHz 4W, 128 CH / 128 Zone Conventional; 8 Character LCD, 4-key
  • TK-3170K4 450-490 MHz 4W, 128 CH / 128 Zone Conventional; 8 Character LCD, 4 + 12-key
