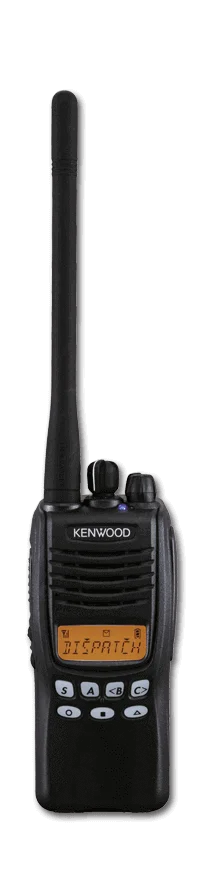

KENWOOD TK-2312 / 3312

The KENWOOD TK-2312 and TK-3312 are thin and compact yet packed with features for intuitive operation, impressive performance, and all-weather reliability. Front and side programmable function keys allow for customized convenience, and KENWOOD’s renowned audio clarity means the message gets through loud and clear.

The KENWOOD TK-2312 and TK-3312 VHF/UHF conventional portables are both 5-watt, 128 channel high-performance radios suitable for public safety agencies and business/industrial settings. Built on a performance platform new to KENWOOD portables, they feature an 8-digit display with RSSI & Function/Status Icons, 4-color LED, nine PF keys and come with a lightweight 2000 mAh Li-ion battery. Both versions meet MIL-STD 810 C/D/E/F/G as well as IP54/55 for water & dust intrusion.

Frequency Band:
VHF/UHF

Frequency Range:
136-174 MHz (TK-2312) / 450-520 MHz, 400-470 MHz (TK-3312)

Power Output:
1W - 5W

Standard battery chemistry type:

Battery life (based on a 5-5-90 duty cycle):
10 Hours

Number of Channels/Groups/Zones:
128 Channels / 128 Zones

Channel spacing:
25 kHz / 12.5 kHz

Dimensions W x H x D (with standard battery)
2.13 x 4.8 x 1.65 in

Weight (with standard battery)
13.4 oz

Keypad / Keys
9 PF Keys Type and 6PF Keys + 12 Keypad Type

Display
8 Character, 13 Segment Backlit LCD

Operating temperature
-22˚ F to + 140˚ F

Mil spec
MIL-STD-810 C/D/E/F/G

IP Standards
IP-54/55
