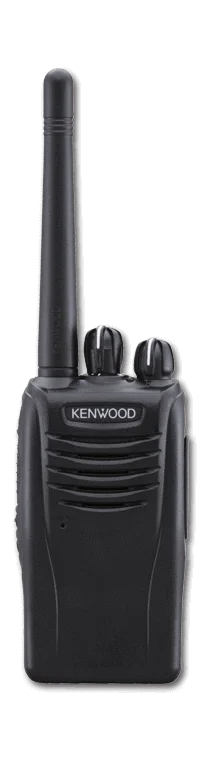

KENWOOD TK-2360 / 3360
TK-2360 / 3360
- Description
- Performance Characteristics
- Physical Characteristics
- User Environment
The KENWOOD 360 Series ultra-sub-compact radio platform with expanded features sets a "best in class" standard for portable two-way radios. With a smaller, lighter design and new features such as increased operating bandwidth, 5 Watts UHF & VHF output power, and MDC-1200, the TK-2360 and TK-3360 VHF/UHF analog portable radios are the perfect next generation solution for enterprise and industrial customers. KENWOOD 360 Series radios are extremely rugged - meeting both MIL SPEC and IP54/55 requirements. This small sized but durable portable radio is a true workhorse, and with its moderate cost a proven value.
Frequency Band:
VHF/UHF
Frequency Range:
136-174 MHz (TK-2360) / 450-520 MHz, 400-470 MHz (TK-3360)
Power Output:
1W - 5W
Standard battery chemistry type:
Li-ion
Battery life (based on a 5-5-90 duty cycle):
9 Hours
Number of Channels/Groups/Zones:
16 Channels
Channel spacing:
25, 30kHz/12.5,15kHz Wide / 25kHz/12.5kHz Narrow
Dimensions W x H x D (with standard battery)
2.2 x 4.1 x 1.14 in
Weight (with standard battery)
9.17 oz
Keypad / Keys
No Keypad
Display
No Display
Operating temperature
-22˚ F to + 140˚ F
Mil spec
MIL-STD-810 C/D/E/F
IP Standards
IP54/55
- Single Priority / Normal Scan
- Transmit / Busy / Call Alert / Scan / Warn LED
- 4-Color LED (Blue/Red/Green/Orange)
- 3 PF Keys (w/Hold Function)
- Orange Emergency / AUX Key
- 500 mW Audio Power
- Enhanced KENWOOD Audio
- Companded Audio (per CH)
- Voice CH# Announcement
- VOX ready
- Voice Inversion Scrambler Built-in
- 16 Scrambler Codes (per CH)
- Emergency Call Features
- Emergency Man-Down Option
- Lone Worker Alert
- QT / DQT
- Two-Tone Decode
- Single / Two-Tone Encode
- DTMF Encode / Decode
- Special Alert Tone Pattern
- Time Out Timer
- Busy Channel Lockout
- Low Battery Warning
- Battery Saver
- Windows Programming & Tuning
- Password Protection
- Intrinsically Safe Option
 | KRA-22M VHF low-profile antenna 148-162 MHz |
| KRA-22M VHF low-profile antenna 162-174 MHz |
| KRA-22M VHF Low-profile helical antenna 136-150 MHz |
 | KRA-23M UHF low-profile antenna 450-490 MHz |
| KRA-23M2 UHF low-profile antenna 470-520 MHz |
| KRA-23M3 UHF Low-profile helical antenna 403-430 MHz |
 | KRA-26M VHF helical antenna 146-162 MHz |
| KRA-26M2 VHF helical antenna 162-174 MHz |
| KRA-26M3 VHF helical antenna 136-150 MHz |
 | KRA-27M UHF whip antenna 440-490 MHz |
| KRA-27M2 UHF whip antenna 470-520 MHz |
| KRA-27M3 UHF whip antenna 400-450 MHz |
 | KBP-5 AA Alkaline Refillable Battery Pack (6 AA; 9V) cells not included |
 | KMB-16 Six Unit Charger Adapter for the KSC-16/20/24/25/25L chargers (chargers not included) |
| KMB-23 Six Unit Charger Adapter for the KSC-16/20/24/25/25L/32 chargers (chargers not included) |
 | KNB-55L 1480 mAh, Li-ion battery - requires KSC-25SK/25LSK/256K/256AK charger |
 | KNB-56N 1400 mAh, Ni-MH battery |
 | KNB-57LAM 2000 mAh, Li-ion battery |
 | KNB-68LC 2000 mAh, Li-ion battery - requires KSC-25SK/25LSK/256K/256AK charger [Intrinsically Safe Option] |
 | KSC-256AK Rapid-rate 6-Unit charger for KNB-26N/55L/56N/57L/57LAM/68LC/78LM/79LCM |
 | KSC-25LSK 100~240 volt rapid rate single unit charger for KNB-40LC(V)/55L/57L/57LAM/68LC Li-ion Battery |
| KSC-25SK 110 volt Rapid-rate single-unit charger for KNB-26N/40LC(V)/55L/56N/57L/57LAM/68LC |
| KVC-23 Rapid-rate DC vehicular charger for TK-5x10/5x20, NX-5x00/x00/x10/x20, TK-x180, TK-x170, & TK-x360 portables with Lithium Ion/Lithium Polymer/NiMH packs only |
| KVC-4 Vehicular charger adapter for the KSC-16/18/20/24/25SK chargers (chargers not included) *KSC-25LSK is not compatible with KVC-4. |
 | KBH-12 Spring action belt clip |
| KBH-13DS Leather swivel belt loop with portable D-Ring attachment |
| KLH-138 Heavy-Duty Leather Case w/Swivel Belt Loop for 160/170/173/360 (Non DTMF keypad) |
 | KEP-2 2.5mm earphone kit for KMC-17/45D Speaker Mic |
 | KHS-10D-BH Heavy-duty behind-the-headset w/noise canceling boom mic & in-line PTT |
| KHS-10D-OH Heavy-duty over-the-headset w/noise canceling boom mic & in-line PTT |
| KHS-22 Behind-the-Head Headset with flexible boom mic and in-line PTT single ear |
 | KHS-26 Clip Mic w/earphone |
 | KHS-27A D-Ring Ear Hanger w/PTT & Mic |
| KHS-31C C-Ring Ear Hanger w/PTT & Mic |
 | KHS-7 Single muff headset w/boom mic |
| KHS-7A Lt. Wt Single muff headset w/boom mic & in-line PTT |
 | KHS-8BL Two-Wire palm mic w/earphone (black) |
 | KHS-9BL Three-Wire lapel mic w/earphone (black) |
| KMC-21 Compact speaker microphone |
 | KMC-45D MIL-SPEC, IP54/55 Speaker microphone (Built-in 2.5mm miniature earphone jack) |
 | KMC-48GPS GPS Speaker Microphone |
- TK-2360K 136-174 MHz 5W, 16 CH Conventional
- TK-3360K 450-520 MHz 5W, 16 CH Conventional
- TK-3360K2 400-470 MHz 5W, 16 CH Conventional
