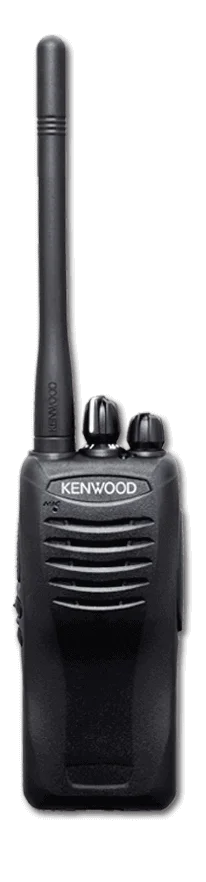

KENWOOD TK-2400V / 3400U
TK-2400V / 3400U
- Description
- Performance Characteristics
- Physical Characteristics
- User Environment
Slim, thin and light KENWOOD's TK-2400 and TK-3400 are supremely easy to handle and to operate. Yet these handy compact radios are extremely reliable, meeting the famously tough MIL-STD 810 C/D/E/F and G specifications. With their well-balanced performance, it makes perfect business sense - especially for inventory control and service industry operations.
Frequency Band:
VHF/UHF
Frequency Range:
136-174 MHz (TK2400) / 450-520 MHz (TK-3400)
Power Output:
1-2W
Standard battery chemistry type:
Battery life (based on a 5-5-90 duty cycle):
17 hours
Number of Channels/Groups/Zones:
16 Channels
Channel spacing:
25kHz Wide / 12.5kHz Narrow
Dimensions W x H x D (with standard battery)
2.13 x 4.8 x 1.32 in
Weight (with standard battery)
9.9 oz
Keypad / Keys
No Keypad
Display
No Display
Operating temperature
-22˚ F to + 140˚ F
Mil spec
MIL-STD-810 C/D/E/F/G
IP Standards
IP54/55
- Single Priority / Normal Scan
- Transmit / Busy / Call Alert Scan / Warn LED
- 4-Color LED (Blue/Red/Green/Orange)
- 2 PF Keys
- W Speaker Audio
- Enhanced KENWOOD Audio
- Companded Audio (per CH)
- Voice Annunciation
- VOX Ready
- Voice Inversion Scrambler Built-in
- 16 Scrambler Codes (per CH)
- Emergency Call Features
- Lone Worker Alert (per CH)
- QT / DQT
- Two-Tone Decode
- Single / Two-Tone Encode
- DTMF Encode / Decode
- Special Alert Tone Pattern
- Time Out Timer
- Busy Channel Lockout
- Low Battery Warning
- Battery Saver Windows ® Programming & Tuning
- Wireless Cloning
- Password Protection
 | KRA-22M VHF low-profile antenna 148-162 MHz |
| KRA-22M VHF low-profile antenna 162-174 MHz |
| KRA-22M VHF Low-profile helical antenna 136-150 MHz |
 | KRA-23M UHF low-profile antenna 450-490 MHz |
| KRA-23M3 UHF Low-profile helical antenna 403-430 MHz |
 | KRA-26M VHF helical antenna 146-162 MHz |
| KRA-26M2 VHF helical antenna 162-174 MHz |
| KRA-26M3 VHF helical antenna 136-150 MHz |
 | KRA-27M UHF whip antenna 440-490 MHz |
| KRA-27M2 UHF whip antenna 470-520 MHz |
 | KRA-41M VHF stubby antenna 148-162 MHz |
| KRA-41M2 VHF stubby antenna 162-174 MHz |
| KRA-41M3 VHF stubby antenna 136-150 MHz |
 | KRA-42M UHF stubby antenna 440-490 MHz |
| KRA-42M2 UHF stubby antenna 470-520 MHz |
 | KMB-28AK Six Unit Charger Adapter for the KSC-23BK/28/35SK chargers (chargers not included) |
 | KNB-29N 1500 mAh, NiMH battery - requires KSC-43K charger |
 | KNB-45L 2000 mAh, Li-ion battery - requires KSC-35K/SK charger |
 | KNB-69L 2550 mAh, Li-ion battery - requires KSC-35K/SK charger |
 | KSC-35SK 110~220 volt Fast rate single unit charger for KNB-45L/69L |
 | KSC-43K 110~220 volt Fast rate single unit charger for KNB-29N/45L/69L |
| KNB-69L 2550 mAh, Li-ion battery - requires KSC-35K/SK charger |
| KSC-35SK 110~220 volt Fast rate single unit charger for KNB-45L/69L |
| KSC-43K 110~220 volt Fast rate single unit charger for KNB-29N/45L/69L |
 | KVC-22 110~220 volt Fast rate DC vehicular charger adapter for KSC-35SK charger & KNB-45L Li-ion battery (charger not included) |
 | KBH-10 Spring action belt clip |
 | KBH-8DS Leather swivel belt loop with portable D-Ring attachment |
 | KLH-187 Nylon case for TK-*200/*202/*300/*302/*400/*402 Series |
 | KEP-1 3.5mm earphone kit for KMC-48GPS Speaker Mics |
 | KEP-2 2.5mm earphone kit for KMC-17/45D Speaker Mic |
 | KHS-10D-BH Heavy-duty behind-the-headset w/noise canceling boom mic & in-line PTT |
| KHS-10D-OH Heavy-duty over-the-headset w/noise canceling boom mic & in-line PTT |
| KHS-22 Behind-the-Head Headset with flexible boom mic and in-line PTT single ear |
 | KHS-26 Clip Mic w/earphone |
 | KHS-27A D-Ring Ear Hanger w/PTT & Mic |
| KHS-31C C-Ring Ear Hanger w/PTT & Mic |
 | KHS-7 Single muff headset w/boom mic |
| KHS-7A Lt. Wt Single muff headset w/boom mic & in-line PTT |
 | KHS-8BL Two-Wire palm mic w/earphone (black) |
 | KHS-9BL Three-Wire lapel mic w/earphone (black) |
| KMC-21 Compact speaker microphone |
 | KMC-45D MIL-SPEC, IP54/55 Speaker microphone (Built-in 2.5mm miniature earphone jack) |
 | KMC-48GPS GPS Speaker Microphone |
- TK-2400K2 136-174 MHz VHF 2W, 16 Ch.
- TK-3400K2 450-520 MHz UHF 2W, 16 Ch.
