TK-690

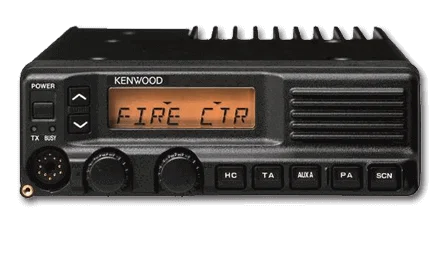

KENWOOD TK-690

TK-690

  • Description
  • Performance Characteristics
  • Physical Characteristics
  • User Environment

The KENWOOD TK-690 high-specification, heavy-duty mobile meets the needs of public safety, public service, government, rail, transportation, utility and private industry sectors. The controls and customizable PF keys provide an intuitive user interface simplifying operation for all user types. The extra-large frequency capacity and dynamic channel and group programming facilitate inter-agency interoperability, mutual aid and tactical channel organization.

Frequency band:
Low Band

Frequency range:
29.7-37.0, 35.0-43.0, 39.0-50.0 MHz

Power Output:
110W

Number of Channels/Groups/Zones:
160 Channels

Channel spacing:
20 kHz

Dimensions W x H x D
7 x 2-1/4 x 14 1/8 in

Weight
7.9 lb

Keypad / Keys
No Keypad

Display
No Display

Operating temperature
-22°F to +140°F

Mil spec
MIL-STD-810 C/D/E/F

IP Standards
NA

  • Dual Priority Scan
  • Single / Multi Group Scan
  • QT / DQT
  • Operator Selectable Tone
  • Two-Tone Decode
  • DTMF Encode/ Decode / Stun
  • Encryption / ANI Board Control
  • Emergency Call Features
  • Companded Audio
  • Intercom
  • Public Address
  • Time Out Timer
  • Busy Channel Lockout
  • Ignition Sense
  • Timed Power Off
  • DB-25 Accessory Connector
  • 7 Programmable AUX Inputs
  • 6 Programmable AUX Outputs
  • Windows® Programming & Tuning
  • Windows® Firmware Uploading
  • Panel Tuning
  • Cloning’
KCT-22A100

KCT-22A100

KCT-22A Extended Control Head Cable (up to 100 ft. max.)

KCT-22A50

KCT-22A50

KCT-22A Extended Control Head Cable (up to 50 ft. max.)

KCT-22M

KCT-22M

Control cable - 8 Feet

KCT-22M2

KCT-22M2

Control cable - 17 Feet (Standard accessory config. set cable)

KCT-22M3

KCT-22M3

Control cable (25 Feet)

KCT-23AK2

KCT-23AK2

KCT-23AK2 Two Conductor 75/110W High Power DC Cable
(2 Conductor: 1x23 ft. positive, 1x23 ft. negative; AWG #10)

KCT-23M2

KCT-23M2

DC Cable (75/110W Dash mount)

KCT-23M4

KCT-23M4

DC Cable (75/110W Remote mount)

No Image Available

KCH-10

Basic Control Panel

KCH-11

KCH-11

Full Featured Control Panel

No Image Available

KRK-5

Single Control Head Remote Mount Kit

KES-5

KES-5

External speaker, 40W max input Note: requires KCT-60M installed.

KMC-27

KMC-27

Rugged standard microphone with noise canceling, MIL-STD and driven rain features

KMC-28

KMC-28

DTMF microphone (MIL-SPEC, Noise canceling)

KMC-9B

KMC-9B

Desk top microphone

KCT-18

KCT-18

Ignition sense cable (requires KCT-60M Acc. Cable Option)

KLF-2

KLF-2

Line Filter (suppresses alternator whine, 25dB, 25A max).

No Image Available

KMB-9

Heavy Duty Mounting Bracket with built-in key lock

  • TK-690HBK3 39.0-50.0 MHz, 110W, 160 Channels (R.F. DECK ONLY)
