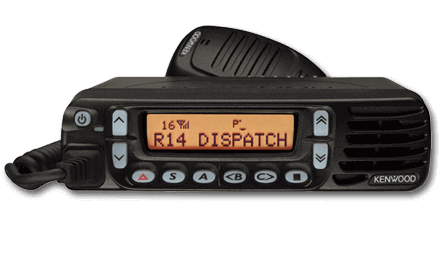

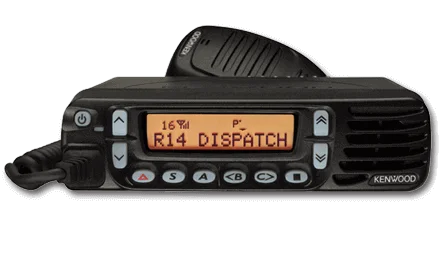

KENWOOD TK-7180 / 8180

KENWOOD TK-7180

TK-7180 / 8180

  • Description
  • Performance Characteristics
  • Physical Characteristics
  • User Environment

The KENWOOD TK-7180 and TK-8180 strike a perfect balance of specifications, features and costs in this broad base platform designed for the public safety, public service, government and private industrial sectors. The wide frequency range, transceiver specifications and power are perfect for both metropolitan and suburban radio systems and environments. The extra-large capacity and zone programming facilitate inter-agency interoperability and mutual aid and tactical channel organization. The remote mount option permits easy, aesthetically pleasing installation into existing radio consoles and contemporary sedans.

Frequency Band:
VHF/UHF

Frequency Range:
136-174 MHz (TK7180)
450 -520 MHz, 450 - 512 MHz, 400 - 470 MHz (TK-8180)

Power Output:
1 – 30W, 10 – 50W, 10-45W

Number of Channels/Groups/Zones:
512 Channels / 128 Zones

Channel spacing:
25 kHz, 30 kHz 25 kHz Wide / 12.5 kHz, 15 kHz Narrow

Dimensions W x H x D
6-5/16 x 1-3/4 x 6-3/16 in

Weight
3.3 lbs

Keypad / Keys
6 Backlit PF Keys

Display
Backlit Dot Matrix LCD

Operating temperature
-22˚ F to + 140˚ F

Mil spec
MIL-STD-810 C/D/E/F

IP Standards
IP54/55

  • Conventional & LTR® Zones
  • MPT1327 Trunking Option
  • Remote Control Head Option
  • 12 Character Alphanumeric Aliases
  • Backlit Dot Matrix LCD
  • 3-Digit Sub-Display
  • Function / Status LCD Icons
  • RSSI Indicator
  • Date & 12/24 Hour Time Clock
  • Transmit / Busy / Call Alert / Warn LED
  • 6 Backlit PF Keys
  • Emergency / AUX Key
  • Enhanced KENWOOD Audio
  • Front Panel Speaker
  • Companded Audio
  • Voice Inversion Scrambler Built-in
  • Easy Option Port
  • Encryption / ANI Board Control
  • Emergency Call Features
  • DTMF Encode / Decode
  • Special Alert Tone Patterns
  • Call Key
  • Time Out Timer
  • Busy Channel Lockout
  • Timed Power Off
  • DB-25 Accessory Connector
  • 9 Programmable AUX I/Os
  • 2 Programmable AUX Outputs
  • Ignition Sense
  • Public Address / Horn Alert Option
  • MIL-Spec Standard Mic
  • MIL-Spec 12-Key DTMF Mic Option
  • Windows® Programming & Tuning
  • Windows® Firmware Uploading
  • Front Panel Test / Tune
  • Cloning

Control Station Accessories [+]

No Image Available

KMB-34

Control Station Mounting Case for KPS-15 Power Supply and Mobiles (excludes TK-5x10/6110 series).
(mobile mounting hardware included)
KMC-59

KMC-59C

Control Station Desktop Microphone (8-pin mod. plug)
Note: Compatible with FDMA (analog) and TDMA operations.
KMC-9

KMC-9C

Control Station Desktop Microphone (8-pin mod. plug)
No Image Available

KPS-15

DC Switching Power Supply (117/230 VAC; 23A max. continuous, 25A peak)

Microphones And Speakers [+]

KES-3

KES-3S

External speaker (compact low profile; black case; 3.5 mm phono plug-in)
KES-5

KES-5

External speaker, 40W max input
Note: requires KCT-60M installed.
KMC-35

KMC-35

MIL-SPEC Standard electret mobile microphone (8-pin mod. plug) - same as supplied
KMC-36

KMC-36

MIL-SPEC Standard electret mobile microphone with 12-key DTMF (8-pin mod. plug)

Mobile Installation Accessories [+]

KAP-2

KAP-2

Horn Alert/P.A. Relay Option
Note: For MPT, HA operates in Trunked Mode only.
KCT-46

KCT-46

Ignition sense cable (plugs directly into mobile chassis ignition sense line).
KLF-2

KLF-2

Line Filter (suppresses alternator whine, 25dB, 25A max).
KMB-10

KMB-10

Key lock adapter
KRK-10

KRK-10

Remote Control Kit (a remote control cable (23 ft) is included).
  • TK-7180K 136-174 MHz 30W, 512 CH / 128 Zone CONV-& LTR
  • TK-7180HK 136-174 MHz 50W, 512 CH / 128 Zone CONV-& LTR
  • TK-8180K 450-520 MHz 30W, 512 CH / 128 Zone CONV-& LTR
  • TK-8180HK 450-520 MHz 45W, 512 CH / 128 Zone CONV-& LTR
  • TK-8180K2 400-470 MHz 30W, 512 CH / 128 Zone CONV-& LTR
  • TK-8180HK2 400-470 MHz 45W, 512 CH / 128 Zone CONV-& LTR
