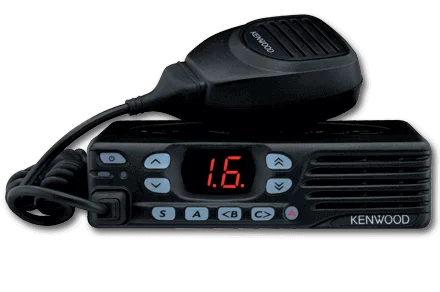

KENWOOD TK-7302HV / 8302HU

KENWOOD TK-7302

TK-7302HV / 8302HU

  • Description
  • Performance Characteristics
  • Physical Characteristics
  • User Environment

KENWOOD's TK-7302HV and TK-8302HU mobile radios deliver reliable mobile performance with extra wideband coverage (UHF: 70MHz) and such features as QT/DQT signaling, multiple scan functions and a voice inversion scrambler. Yet these tough IP54/MIL-STD-compliant radios are decidedly user-friendly, providing high-quality audio, voice announcement, and large displays with adjustable brightness for simple operation, day and night.

Frequency Band:
VHF/ UHF

Frequency Range:
136-174 MHz / 450-520 MHz

Power Output:
5W - 25W, 5W - 50W, 5W - 45 W

Number of Channels/Groups/Zones:
16 Channels / 2 Zones

Channel spacing:
25 kHz Wide /12.5 kHz Narrow

Dimensions W x H x D
6.3 x 1.7 x 5.4 in

Weight
41.6 oz

Keypad / Keys
9 Programmable Function Keys

Display
2-Digit LED Channel Display

Operating temperature
-22˚ F to + 140˚ F

Mil spec
MIL-STD-810 C/D/E/F

IP Standards
IP54/55

  • Conventional Zones
  • Single Priority Scan
  • Single / Multi-Zone Scan
  • 2-Digit LED Channel Display
  • Function/Status LED Dots
  • Blue Function/Status LED
  • Transmit /Busy / Call Alert LED
  • Backlit Keys
  • 9 Programmable Function Keys
  • Emergency / AUX Key
  • Front Panel Speaker
  • Companded Audio
  • Voice CH# Announcement (8 Languages)
  • Voice Inversion Scrambler Built-in
  • 16 Scrambler Codes (per CH)
  • Encryption Board Control
  • Emergency Call Features
  • Lone Worker Alert
  • QT / DQT
  • Operator Selectable Tone
  • Two-Tone Decode
  • Single & Two-Tone Encode
  • DTMF Encode / Decode
  • Special Alert Tone Patterns
  • Busy Channel Lockout
  • Time Out Timer
  • DB15 Accessory Interface
  • 8 Programmable I/O Ports
  • Ignition Sense
  • Public Address / Horn Alert Output
  • MIL-Spec Standard Mic
  • MIL-Spec 12-Key DTMF Mic Option
  • Windows® Programming & Tuning
  • Cloning

Control Station Accessories [+]

No Image Available

KMB-34

Control Station Mounting Case for KPS-15 Power Supply and Mobiles (excludes TK-5x10/6110 series).
(mobile mounting hardware included)
KMC-59

KMC-59C

Control Station Desktop Microphone (8-pin mod. plug)
Note: Compatible with FDMA (analog) and TDMA operations.
KMC-9

KMC-9C

Control Station Desktop Microphone (8-pin mod. plug)
No Image Available

KPS-15

DC Switching Power Supply (117/230 VAC; 23A max. continuous, 25A peak)

Microphones And Speakers [+]

KES-3

KES-3S

External speaker (compact low profile; black case; 3.5 mm phono plug-in)
KES-5

KES-5

External speaker, 40W max input
Note: requires KCT-60M installed.
KMC-35

KMC-35

MIL-SPEC Standard electret mobile microphone (8-pin mod. plug) - same as supplied
KMC-36

KMC-36

MIL-SPEC Standard electret mobile microphone with 12-key DTMF (8-pin mod. plug)

Mobile Installation Accessories [+]

KCT-18

KCT-18

Ignition sense cable (requires KCT-60M Acc. Cable Option)
KCT-36

KCT-36

Extension Cable for KCT-34/35/39/40M/60M; 117.6 inches (9.8 ft)
KCT-60

KCT-60M

DB15-to-15pin Molex Adapter Cable
KLF-2

KLF-2

Line Filter (suppresses alternator whine, 25dB, 25A max).
KMB-10

KMB-10

Key lock adapter
  • TK-7302HVK 136-174 MHz 50W, 16 CH / 2 Zone Conventional
  • TK-8302HUK 450-520 MHz 45W, 16 CH / 2 Zone Conventional
