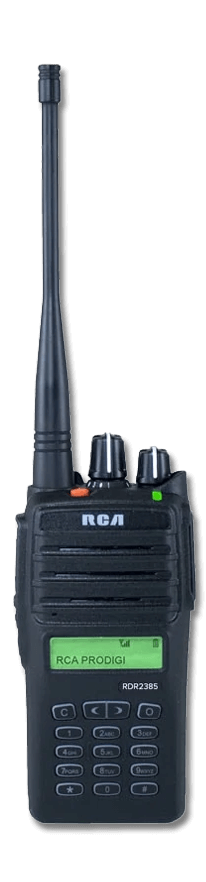

RCA RDR2385

RCA RDR 2385

RDR 2385

  • Description
  • Performance Characteristics
  • Physical Characteristics
  • User Environment

DMR Digital, Professional Portable Radio

Compact, versatile, and cost-effective, the RDR2385 radio is completely compatible with any other DMR Digital radio on the market. It operates in both digital and analog modes, delivering clear and loud communication and it can be used in a wide range of applications. Industries such as K12 Education, Colleges and Universities, Manufacturing, Security, Hotels more. When safety and reliability is critical, the RDR2385 radio is the best choice for your communication needs.

Frequency Band:
VHF, UHF

Frequency Range:
VHF 136-174 MHz; UHF 400-470 MHz

Power Output:
1 to 5 Watts (3 programmable levels)

Standard battery chemistry type:
Lithium Ion

Battery life (based on a 5-5-90 duty cycle):
13 Hours

Number of Channels/Groups/Zones:
1024

Channel spacing:
12.5 kHz

Dimensions H x W x D (with standard battery)
4.5” x 2.1” x 1.3”

Weight (with standard battery)
10 ounces

Keypad / Keys
12 Alphanumeric / 3 Menu

Display
16 Character Dot Matrix

Operating temperature
(-)4°F - (+)122°F

Mil spec
MIL-STD-810 C, 810 D, 810 E, 810 F, 810 G

IP Standards
IP65

Exceptional Audio Quality, Improved Coverage
The RDR2325 radios completely eliminate background noise and static from voice transmissions, delivering a crystal-clear message compared to analog radios.

Analog + Digital Operation
Capable to operate in both analog and digital modes the RDR2325 radios give you the option to upgrade to digital at your own pace.

Smallest Digital Radio on the Market
Compact, lightweight design, making the RDR2325 very comfortable and easy to use through a long work shift.

Power is Performance
The RDR2325 radios are designed to conserve battery power reducing the power consumption by 40% compared to analog radios. This extends the radios operating time, enabling your employees to stay connected for up to 13 hours of regular usage. Eliminating the need to recharge during long shifts.

Emergency and Security
In critical situations, the radio user can initiate an emergency alarm which overrides all activity on the channel.

Private and Group Call
Allows users to talk privately with specific individuals or groups without broadcasting to everyone on the channel.

Signaling
2-Tone, 5-Tone, DTMF Encode/Decode and MDC1200 Encode: PTT ID (identifies outbound calls), Individual/Group Call (receive/place calls from specific individuals or groups), Call Alert (tone indicates new inbound call), and Alarm (sounds alarm or notifies system administrator of emergency).

Radio Stun/Kill/Revive
Allows the radio administrator to disable radio if it is lost or stolen.

Programmable Top Emergency Button
Alarm button sounds emergency signal. Button can be programmed to transmit voice and/or radio identity or other options.

Two Programmable Side Buttons
Places your favorite features at your fingertips.

Voice Annunciation
Announces channel number when channel is changed.

Industry Leading Warranty
Backed by a Three (3) Year Warranty.

RCA ANH200V-3

ANH200V-3

136-174 Short 3″ Antenna 136-174 MHz

RCA ANH250V-3

ANH250V-3

145-175 Short 3″ Antenna 145-175 MHz

RCA ANH200V-6

ANH200V-6

136-174 Standard 6″ Antenna 136-174 MHz

RCA ANH200U-3

ANH200U-3

400-440 Short 3″ Antenna 400-440 MHz

RCA ANH200U-6

ANH200U-6

400-440Standard 6″ Antenna 400-440 MHz

RCA ANH200U-3

ANH200U-3

440-470 Short 3″ Antenna 440-470 MHz

RCA ANH200U-6

ANH200U-6

440-470 Standard 6″ Antenna 440-470 MHz

RCA EXTSPK30

ANH250U-3

450-470Short 3″ Antenna 450-470 MHz

RCA B2020LI

B2020LI

2000mAh / 14.8Wh Lithium Ion Battery

RCA CH2001 PKG

CH2001 PKG

Single Unit Rapid Charger Kit

RCA CHU6 PKG

CHU6 PKG

Multi Unit 6-Bank Rapid Charger Kit

RCA BC200

BC200

Screw-In Heavy Duty Belt Clip

RCA HN200FC

HN200FC

Nylon Holster with Fixed Belt Clip

RCA HN200FL

HN200FL

Nylon Holster with Fixed Belt Loop

RCA HN200SC

HN200SC

Nylon Holster with Swivel Clip

RCA HN200SL

HN200SL

Nylon Holster with Swivel Belt Loop

RCA HL200FC

HL200FC

Leather Holster with Fixed Belt Clip

RCA HL200FL

HL200FL

Leather Holster with Fixed Belt Loop

RCA HL200SC

HL200SC

Leather Holster with Swivel Clip

RCA HL200SL

HL200SL

Leather Holster with Swivel Belt Loop

RCA SM220-X03S

SM220-X03S

Medium Duty, Speaker Mic with 3.5mm Aux. Jack – IP56 Rated

RCA SM310-X03S

SM310-X03S

Heavy Duty, Rubberized Speaker Mic with 3.5mm Aux. Jack – IP56 Rated

RCA SK22NE-X03S

SK22NE-X03S

2-Wire Surveillance Kit with Palm Mic – IP56 Rated

RCA SK32NE-X03S

SK32NE-X03S

In-Ear Style 3-Wire Surveillance Kit with Lapel Mic and Palm PTT – IP56 Rated

RCA EXTSPK30

HS12-X03S

Lightweight Behind-the-Head Headset – IP56 Rated

RCA EXTSPK30

HS65NR-X03S

Heavy Duty, Noise Reduction, Over-the-Head, Dual Muff Headset – IP56 Rated

RCA EXTSPK30

HS75NR-X03S

Heavy Duty, Noise Reduction, Behind-the-Head, Dual Muff Headset – IP56 Rated

The RCA RDR 2385 is available in the following models.

UHF

  • RDR2385U 4 Watt of Power, UHF 400-470 MHz, 1024 Channels

VHF

  • RDR2385V 5 Watt of Power, VHF 136-174 MHz, 1024 Channels
