RCA RDR2500

RCA RDR 2500

RDR 2500

  • Description
  • Performance Characteristics
  • Physical Characteristics
  • User Environment

The RDR2500 Series Radios is perfect for anyone who believes that having fast, reliable communication throughout their facility is a key to a safer and more productive work environment. Simple and cost-effective, the RCA digital radios are designed to connect your workforce efficiently and provide you with reliable communication allowing you focus on growing your business.

Loud 1 watt of power speaker with crystal clear audio quality, reliable coverage, and long-lasting battery life are just few of the outstanding benefits the RDR2500 series radios will deliver to you without making a dent in your budget.

Fully compatible with your existing Analog and Digital radios, the RDR2500 series combine the best of both, the legacy Analog and the new, improved Digital two-way radio technologies, giving you the flexibility to upgrade to Digital at your own speed or simply expand your radio fleet.

With its flexibility the RDR2500 series radios can be used in a wide range of applications such as manufacturing, warehousing, construction, hotels, schools, and colleges.

Frequency Band:
VHF, UHF

Frequency Range:
VHF 136-174 MHz; UHF 400-470 MHz

Power Output:
5 Watts (3 programmable levels, 1W to 5W)

Standard battery chemistry type:
Lithium-Ion

Battery life (based on a 5-5-90 duty cycle):
13 Hours

Number of Channels/Groups/Zones:
32

Channel spacing:
12.5 kHz

Dimensions H x W x D (with standard battery)
5.3” x 2.3” x 1.3”

Weight (with standard battery)
0.7 lbs.

Keypad / Keys
None

Display
None

Operating temperature
(-)4°F - (+)122°F

Mil spec
MIL-STD-810 C-G

IP Standards
IP54

Cross-Brand Compatibility
Designed strictly according to the Digital DMR ETSI Standard TS 102 361-1, -2,-3, the RDR25x0 Series portable radios are compatible with all RCA two-way radios as well as all other major brands.

Upgrade To Digital at Your Own Speed
Analog and Digital operation will give you the flexibility to upgrade to Digital at your own speed, without sacrificing safety and keeping your business operations running smoothly during the transition period.

Heavy-Duty Commercial Housing
The RDR2500 series radios are designed with durability in mind and built to survive the normal, everyday commercial wear and tear. The radio’s 3.6mm high quality reinforced housing can be found only in public safety grade equipment and it is unmatched in this class.

Crystal Clear Audio Quality, Improved Coverage
Designed with X-Sound+ HD™ for exceptional voice quality. The RDR2500 series radios provide loud 1 Watt of power audio, at the same time eliminating background noise and static from the voice transmissions and delivering crystal clear voice message which results in a better, improved radio coverage.

Reliability, Safety and Productivity First
The RDR2500 series provide reliable, cost-effective communication solution with a simple, user friendly operation that will help your employees connect, collaborate and coordinate in real time to get their job done safely and more efficiently.

Full Shift Performance
Designed to be power efficient. When working in digital mode, the battery power consumption is lower up to 40% lower, providing longer operating time which ensures that your employees will stay connected beyond a full working shift. With a typical duty cycle of 5 (Rx) – 5 (Tx) – 90 (Stand By), the standard 1800mAh Lithium-Ion battery provides up to 10 hours of operation in Analog mode and up to 14 hours of operation in Digital mode.

True Operational Versatility
The RDR2500 series radios come in three different models, the standard no display RDR2500 unit; the upgraded RDR2550 equipped with 16-character display and 7 programmable function buttons. Different departments, work crews, managers and employees can choose to use the best model for their needs, taking advantage of advanced features such as Caller ID, Group and Private Call, Radio Check, Radio Enable/Disable, Emergency and Lone Worker Alerts, Text Messaging and many more.

Audio Accessory Compatibility
Upgrading from existing radio 2-prong accessory connectors? The RDR2500 series radios are designed with the same style accessory connector, providing you with the option to keep your speaker mics, earpieces, and headsets. Built and recommended to be used with X03S style accessory connector, the radios will still accept both, the X03 and X03S connectors.

Industry Leading Warranty
The RDR2500 series radios are backed standard by an industry leading, hassle-free Two (2) Year Warranty.

RCA ANH3500V-S

ANH3500V-S 136-174

Short Antenna 136-174 MHz

RCA ANH3500V-W

ANH3500V-W 136-174

Standard Whip Antenna 136-174 MHz

RCA ANH3500U-S

ANH3500U-S 440-470

Short Antenna 440-470 MHz

RCA ANH3500U-W

ANH3500U-W 440-470

Standard Whip Antenna 440-470 MHz

RCA B2618LI

B2618LI

1800mAh / 13.32Wh Lithium Ion Battery
14 Hours Usage (Digital Mode at 5:5:90)

RCA CH2601 PKG

CH2601 PKG

Single Unit Rapid Charger Kit

RCA CHU6 PKG

CHU6 PKG

Multi Unit 6-Bank Rapid Charger Kit

RCA BC200

BC2600

Screw-In Heavy Duty Belt Clip

RCA HN3500FC

HN3500FC

Nylon Holster with Fixed Belt Clip

RCA HN3500FL

HN3500FL

Nylon Holster with Fixed Belt Loop

RCA HN3500SC

HN3500SC

Nylon Holster with Swivel Clip

RCA HN3500SL

HN3500SL

Nylon Holster with Swivel Belt Loop

RCA HL3500FC

HL3500FC

Leather Holster with Fixed Belt Clip

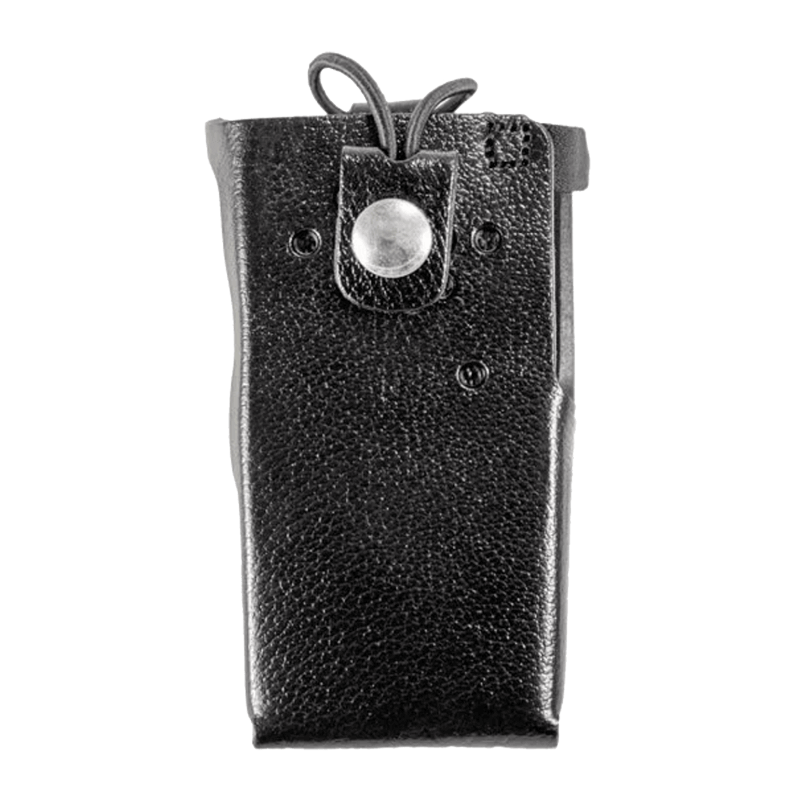

RCA HL3500FL

HL3500FL

Leather Holster with Fixed Belt Loop

RCA HL3500SC

HL3500SC

Leather Holster with Swivel Clip

RCA HL3500SL

HL3500SL

Leather Holster with Swivel Belt Loop

RCA SM220-X03S

SM220-X03S

Medium Duty, Speaker Mic with 3.5mm Aux. Jack – IP56 Rated

RCA SM310-X03S

SM310-X03S

Heavy Duty, Rubberized Speaker Mic with 3.5mm Aux. Jack – IP56 Rated

RCA SK12DL-X03S

SK12DL-X03S

D-Loop Style 1-Wire Surveillance Kit with Palm Mic – IP56 Rated

RCA SK12EH-X03S

SK12EH-X03S

Ear Hook Style 1-Wire Surveillance Kit with Palm Mic – IP56 Rated

RCA SK12NE-X03S

SK12NE-X03S

In-Ear Style 1-Wire Surveillance Kit with Palm Mic – IP56 Rated

RCA SK22NE-X03S

SK22NE-X03S

In-Ear Style 2-Wire Surveillance Kit with Palm Mic – IP56 Rated

RCA HS12-X03S

HS12-X03S

Lightweight Behind-the-Head Headset – IP56 Rated

RCA HS65NR-X03S

HS65NR-X03S

Heavy Duty, Noise Reduction, Over-the-Head, Dual Muff Headset – IP56 Rated

RCA HS75NR-X03S

HS75NR-X03S

Heavy Duty, Noise Reduction, Behind-the-Head, Dual Muff Headset – IP56 Rated

The RCA RDR 2500 is available in the following models.

UHF

  • RDR2500U Standard Non-Display Unit, 5 Watts of Power, UHF 400-470MHz, 32 Channels

VHF

  • RDR2500V Standard Non-Display Unit, 5 Watts of Power, VHF 136-174MHz, 32 Channels
