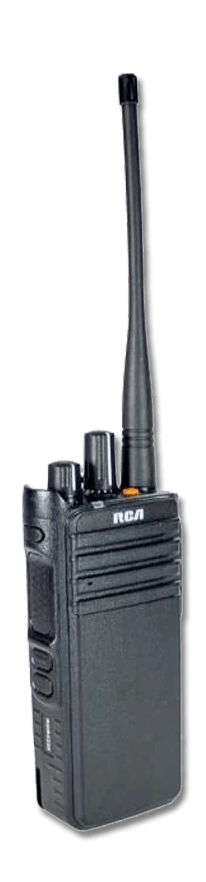

RCA RDR4220

RCA RDR 4220

RDR 4220

  • Description
  • Performance Characteristics
  • Physical Characteristics
  • User Environment

The RCA RDR4200 PRODIGI™ Portable Radio Series come in three different models, the standard non-display RDR4220 unit; the upgraded RDR4250 with large, 1.8-inch Full Color Display and navigation keys; the advanced RDR4280 unit with a large, 1.8-inch Full Color Display, full keypad. Compatible with other DMR Digital radios on the market and operational in both digital and analog modes, the RDR4200 radios are designed to be used in a wide range of applications. Industrial users will benefit from its reliable and durable design, clear, dependable communication, and advanced security features. The RDR4200 series radios are a perfect communication tool for industries such as oil and gas, manufacturing, construction, facility management, security, hotels and resorts, casinos and more.

Intrinsically Safe Option Available
The RDR4220, RDR4250 and RDR4280 portable radios are certified to the requirements of UL 913 5th Ed., TIA 4950-A, CSA C22.2 No. 157- 92 | Class I, II, III; Division 1, Groups C-G; Division 2, Groups A-G; Temp T3C for use in hazardous locations, specifically where flammable gas, vapors or combustible dust may be present.

3 Year Standard Manufacturer’s Warranty

Frequency Band:
VHF, UHF

Frequency Range:
VHF 136-174 MHz; UHF 400-512 MHz

Power Output:
4 Watts UHF / 5 Watts VHF

Standard battery chemistry type:
Lithium Ion

Battery life (based on a 5-5-90 duty cycle):
Analog 10 Hours / Digital 14 Hours

Number of Channels/Groups/Zones:
16

Channel spacing:
12.5 kHz/25 kHz

Dimensions H x W x D (with standard battery)
5.1 x 2.2 x 1.4 inch

Weight (with standard battery)
11.9 oz

Keypad / Keys
None

Display
None

Operating temperature
(-)4°F - (+)122°F

Mil spec
MIL-STD-810 C; D; E; F; G

IP Standards
IP67

Advanced Multi-Mode Functionality
With different operating modes — Conventional Analog, Conventional Digital DMR Tier II, Digital DMR based PRODIGI™ Plus, the portable will truly meet even the most demanding communication needs. The RCA RDR4200 series digital portables radios are designed to connect your workforce efficiently and provide you with reliable communication allowing you focus on growing your business.

Cross-Brand Compatibility
  Utilizing the DMR Digital technology according to the ETSI TS 102 361-1, -2,-3 Standards the RDR4200 series portables are compatible with all RCA two-way radios as well as all other major brands, including digital equipment, such as Motorola, Hytera and Vertex series digital two-way radios and repeaters.

Industrial Durability and Reliability
  Designed with durability in mind with lightweight and rugged aluminum alloy die-cast chassis, 3.5 mm thick high quality, polycarbonate thermoplastic housing with superior toughness, flame retardant, scratch, and heat resistance and 7x battery locking points to the radio chassis.

Waterproof and Dustproof Design
  The RDR4200 series portables are designed and built with the most demanding conditions in mind. Your team needs radios that will not fail them, regardless of the working environment. The radios are designed to the Military 810C, D, E, F, G and the IP67 Waterproof and Dustproof standards.

Feature Rich and Versatile
  The RDR4200 series portables come in 3 different models, the standard non-display RDR4220 unit; the upgraded RDR4250 with large, 1.8-inch Full Color Display and navigation keys; the advanced RDR4280 unit with a large, 1.8 inch Full Color Display, full keypad. Businesses, Departments and Government Agencies can choose the best model for their needs, taking advantage of advanced features such as Caller ID, Group and Private Call, Radio Check, Radio Monitor, Radio Enable/Disable, Emergency, Man Down, Lone Worker Alerts, Text Messaging, Pre-saved Status Messaging, Encryption and more.

Improved Communication Range
  The RDR4200 Radios utilize the DMR digital technology allowing for the transmissions to stay clear from background noise regardless of the distance between two radio units, providing virtually no deterioration of the voice quality, thus increasing the usable coverage area where analog communication will be very poor or not possible at all.

Full Shift Performance
The RCA PRODIGI™ RDR4200 series portables provide up to 40% improved battery performance in digital mode over analog, allowing for longer operating time on a single battery charge. With a typical duty cycle of 5 (Rx) – 5 (Tx) – 90 (Stand By), the RDR4380 color display unit with 2300mAh Lithium-Ion battery can provide up to 10 hours of operation in Analog mode and up to 14 hours of operation in Digital mode.

Intrinsically Safe Option
  Certified to the requirements of UL 913 5th Ed., TIA 4950-A, CSA C22.2 No. 157- 92 | Class I,II, III; Division 1; Groups C-G; Division 2; Groups A-G; Temp T3C (with B4223LIIS IS Approved Battery Only) for use in hazardous locations where flammable gas, vapors or combustible dust may be present. The RDR4200 Series Intrinsically Safe Certified Radios can be used in a wide range of applications and industries such as Oil and Gas Extraction, Chemical and Paint Manufacturing, Refineries and more.

Available Advanced Options
  When workers safety and communication security are of utmost importance, the RDR4200 radios offer optional GPS Location tracking service* and advanced 40-bit ARC4 type encryption. Encrypting your radio communications and tracking your asset’s location results in improved worker safety, increased productivity and shortened incident response time.

Industry Leading Warranty
  The RCA RDR4200 series portables are backed standard by an industry leading, hassle-free Three (3) Year Warranty.

RCA ANH4200V-WG 148-162

ANH4200V-WG 148-162

Standard Whip Antenna 148-162 MHz w/GPS

RCA ANH4200U-WG 400-430

ANH4200U-WG 400-430

Standard Whip Antenna 400-430 MHz w/GPS

RCA ANH4200U-WG 440-470

ANH4200U-WG 440-470

Standard Whip Antenna 440-470 MHz w/GPS

RCA B4223LI

B4223LI

2300mAh / 17.02Wh Lithium Ion Battery

RCA B4223LIIS

B4223LIIS

2300mAh / 17.02Wh Lithium Ion Battery | IS Certified

RCA CH4201 PKG

CH4201 PKG

Single Unit Rapid Charger Kit

RCA CH4206 PKG

CH4206 PKG

Multi Unit 6-Bank Rapid Charger Kit

RCA BC4200

BC4200

Screw-In Heavy Duty Belt Clip

RCA BC4300

BC4300

Screw-In Heavy Duty Belt Clip

RCA SM380WP-X83

SM380WP-X83

Heavy Duty Speaker Mic | 2.5mm Aux. Jack | IP68 Rating |

RCA SM480WPNC-X83

SM480WPNC-X83

Heavy Duty Speaker Mic | 3.5mm Aux. Jack | IP68 Rating

RCA SK28NE-X83

SK28NE-X83

Low Profile In-Ear Style 2-Wire Surveillance Kit with Palm Mic

RCA HS75NR-X83

HS75NR-X83

High Noise Reduction Headset | Over the Head | Dual Muff | NRR: 24db | IS Certified

RCA EXTSPK30

EXTSPK30

High Noise Reduction Headset | Over the Head | Dual Muff | Noise Cancelling | NRR: 24db | IS Certified

The RCA RDR 4220 is available in the following models.

UHF

  • RDR4220U Standard Non-Display Unit, 4 Watts of Power, UHF 400-512MHz, 16 Channels

VHF

  • RDR4220V Standard Non-Display Unit, 5 Watts of Power, VHF 136-174MHz, 16 Channels

Intrinsically Safe Configuration

  • RDR42x0 IS CONFIG Intrinsically Safe Configuration for RDR42x0 Series (Requires B4223LIIS Battery)
